Description

Price

1

GATE, STEERING

8X2-23871-00-00

Unavailable

2

STAY, FUEL TANK 1

8W6-24115-00-00

Unavailable

3

STAY, FUEL TANK

8W6-24116-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

BOLT(JA9)

90101-08691-00

$4.29

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

GROMMET (1H3)

90480-28191-00

$10.49

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BRACKET 13

82A-23898-00-00

Unavailable

15

BRACKET 14

82A-23899-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

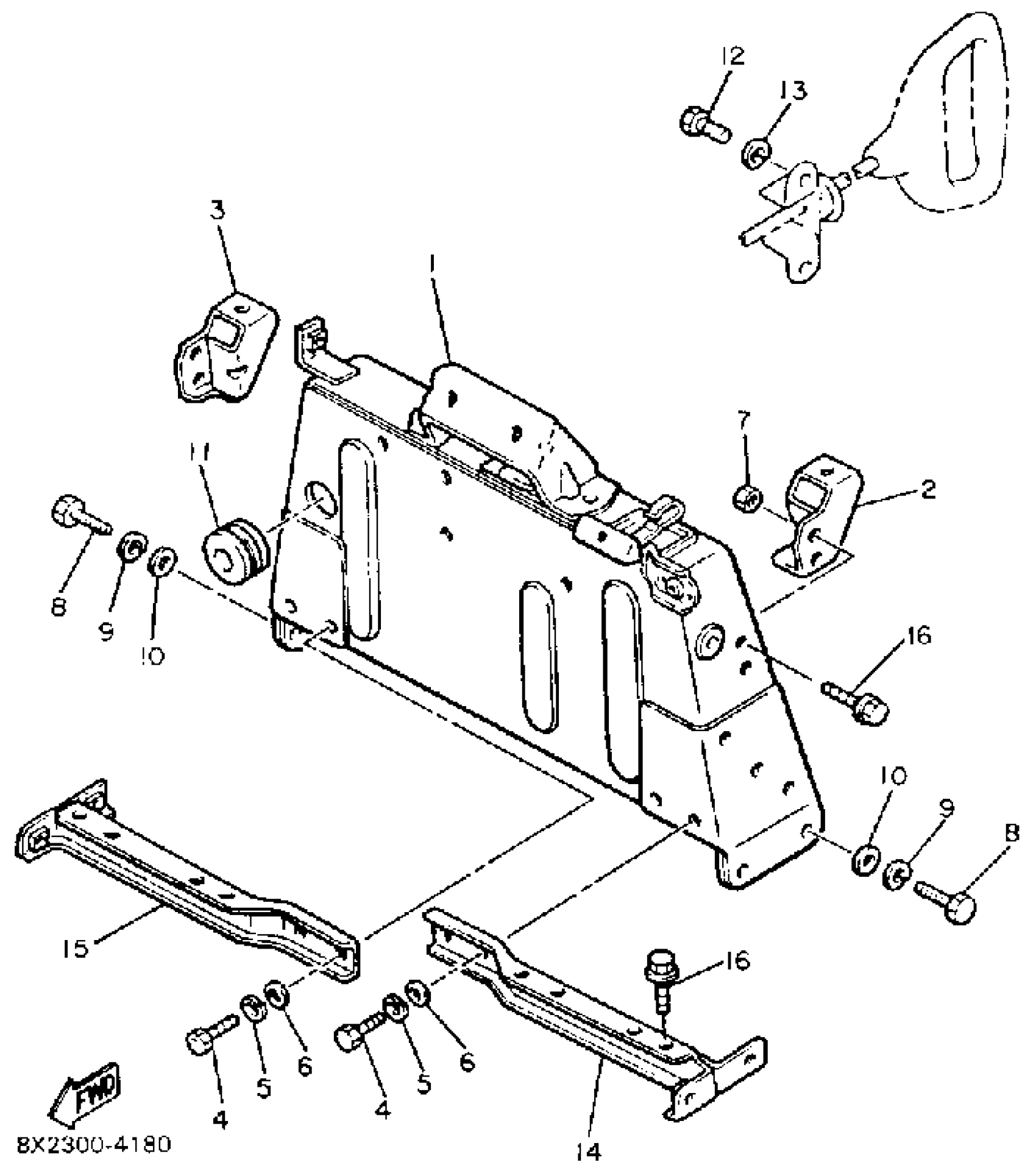

Yamaha ET400TRP (ENTICER LTR) 1990 STEERING GATE Diagram

GATE, STEERING

STAY, FUEL TANK 1

STAY, FUEL TANK

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

NUT, HEXAGON

BOLT(JA9)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

GROMMET (1H3)

BOLT (661)

WASHER, SPRING

BRACKET 13

BRACKET 14

BOLT, FLANGE
