1990 Yamaha Enticer LTR (ET400TRP) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1990 Yamaha Enticer LTR (ET400TRP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

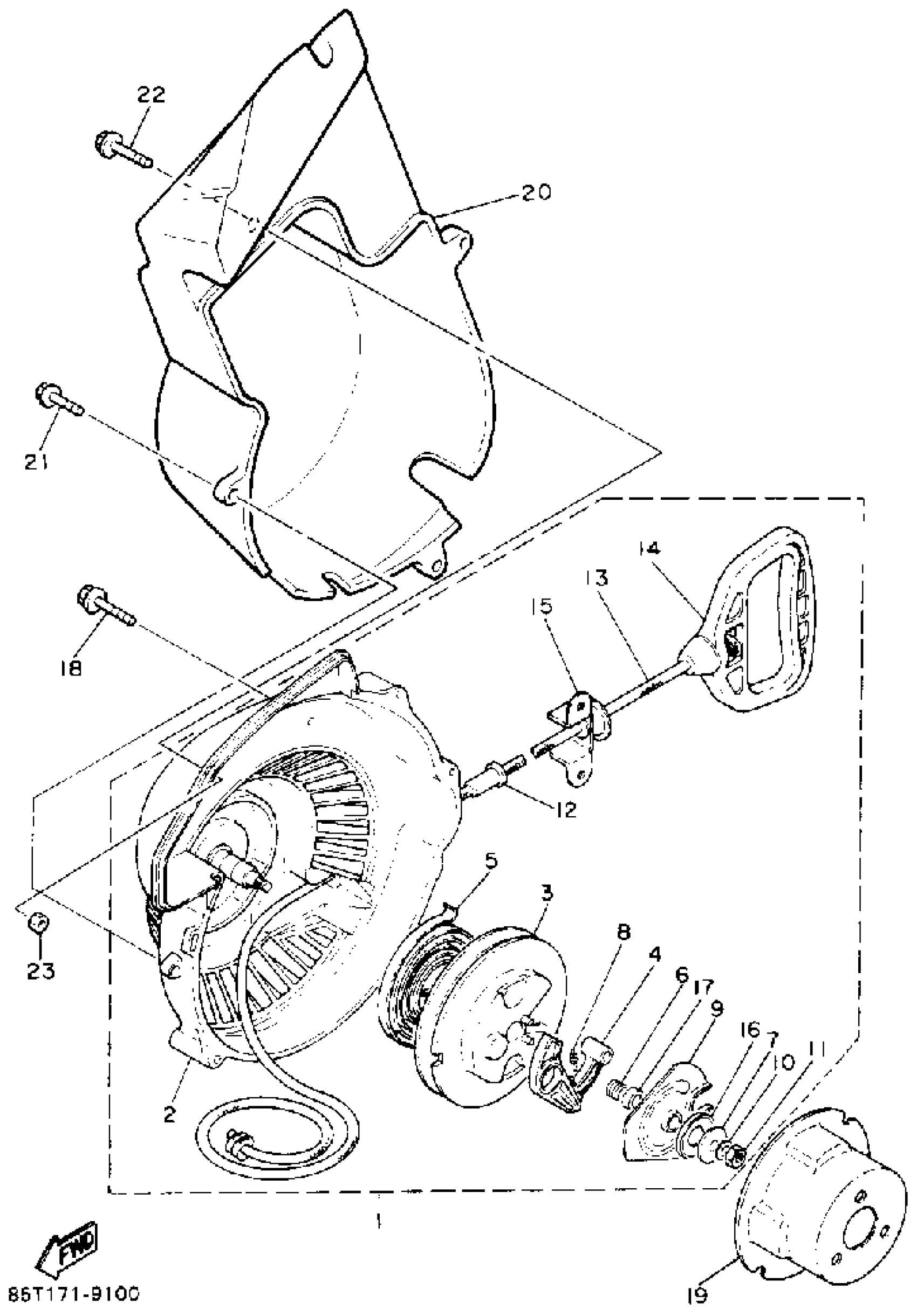

1990 Yamaha Enticer LTR (ET400TRP) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

8G8-15710-01-00

1
Out of stock

2

. CASE, STARTER

8G8-15711-01-00

1
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8F3-15741-01-00

1
Out of stock

5

SPRING, STARTER

8F3-15713-01-00

1
Out of stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1
Out of stock

7

WASHER, THRUST

8F3-15739-01-00

1
Out of stock

8

SPRING, RETURN

8F3-15734-00-00

1
Out of stock

9

PLATE, DRIVE

8F3-15716-03-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1
Out of stock

11

NUT(650)

95380-06700-00

1
Out of stock

12

GUIDE, ROPE

8F3-15758-00-00

1
Out of stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1
Out of stock

14

HANDLE, STARTER

8F3-15755-00-00

1
Out of stock

15

HOLDER, HANDLE

8F3-15788-01-00

—
Out of stock

16

WASHER, THRUST

8G5-15739-00-00

—
Out of stock

17

COLLOR

82M-15779-00-00

—
Out of stock

18

BOLT, FLANGE

95817-06045-00

—
Out of stock

19

PULLEY, STARTER

8R4-15723-00-00

1
Out of stock

20

COVER

8W6-15779-00-00

1
Out of stock

21

BOLT, FLANGE

95817-06030-00

—
Out of stock

22

BOLT, FLANGE

95817-06030-00

—
Out of stock

23

NUT

90179-06447-00

1
Out of stock
