1990 Yamaha Enticer LTR (ET400TRP) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Yamaha Enticer LTR (ET400TRP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

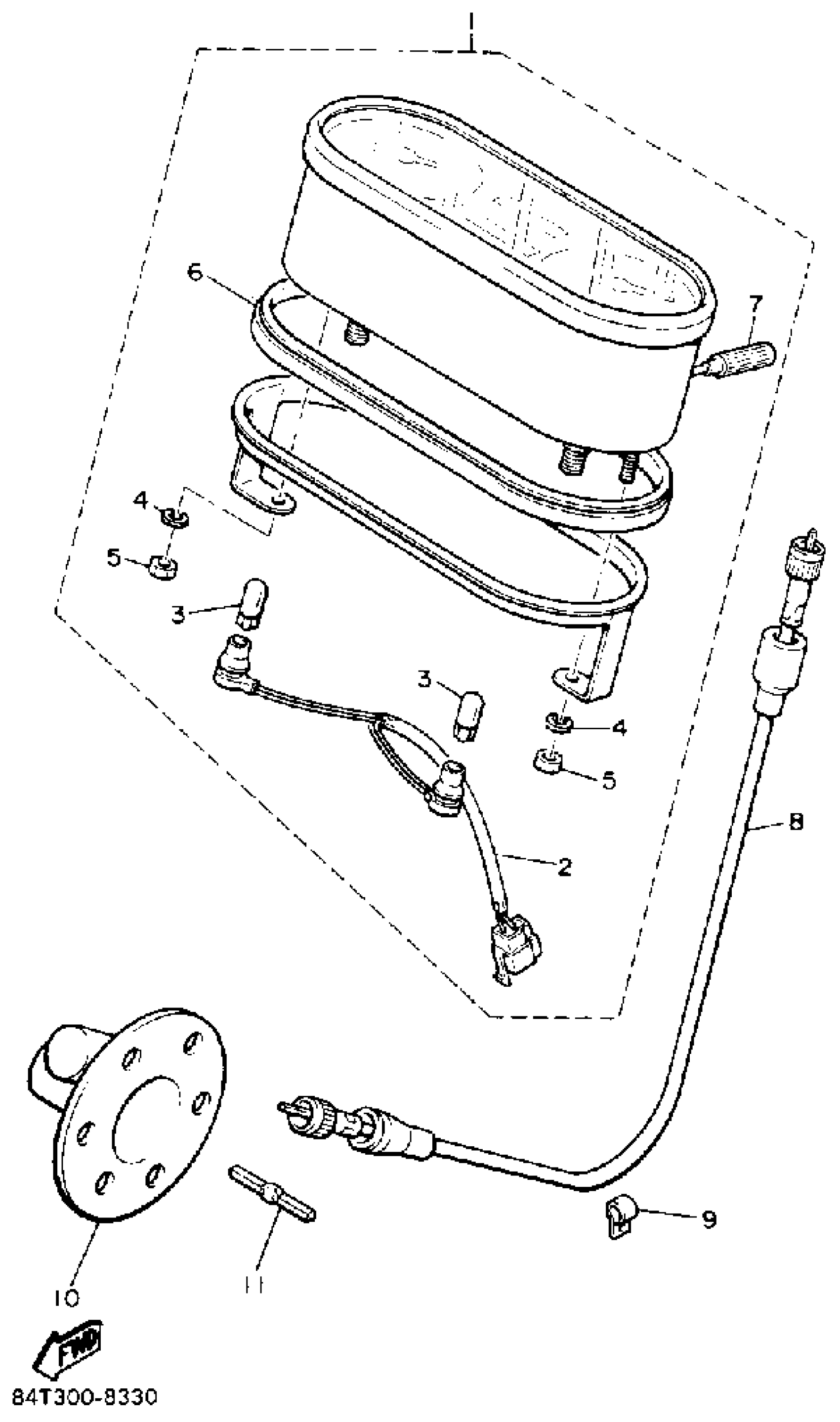

1990 Yamaha Enticer LTR (ET400TRP) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

85T-83500-40-00

1
Out of stock

2

. SOCKET, METER

8U9-83536-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

. DAMPER

8K4-83513-00-00

1
Out of stock

7

. KNOB, TRIP METER

8L8-83578-00-00

1
Out of stock

8

SPEEDOMETER CABLEASS''Y

813-83550-01-00

1
Out of stock

9

CLAMP

90465-08028-00

1

$4.62

In stock

10

METER GEAR HOUSINGHOUSING COMP

8W6-47700-00-00

1
Out of stock

11

JOINT

8K4-47715-00-00

1

$4.60

In stock
