Description

Price

1

TANK, OIL

83R-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

HOSE

91A30-07036-00

Unavailable

5

SPRING, COMPRESSION(1YU)

90501-061E8-00

$12.49

6

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

7

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

8

CLAMP

90464-25267-00

$7.49

9

CLIP (8A1)

90467-09026-00

$3.28

10

CLIP (8J7)

90467-11009-00

$10.49

11

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

12

BOLT, HEXAGON

97013-08020-00

$1.16

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

WASHER, PLAIN

92990-08200-00

Unavailable

15

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

16

CLIP (8A1)

90467-09026-00

$3.28

17

PIPE, JOINT

801-24376-00-00

Unavailable

18

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

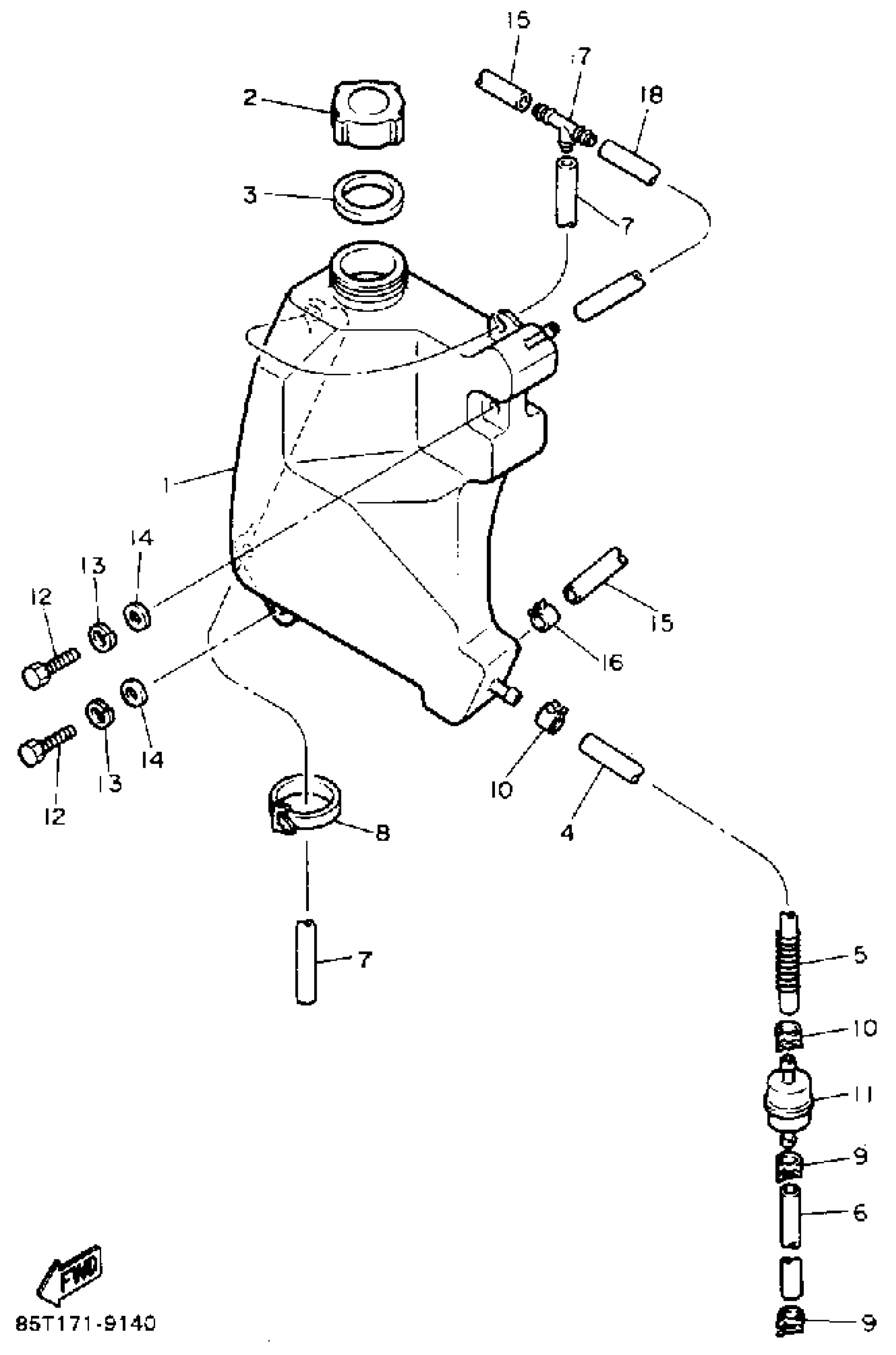

Yamaha ET400TRP (ENTICER LTR) 1990 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, TANK (867)

HOSE

SPRING, COMPRESSION(1YU)

TUBE, FLEXIBLE VINYL(8AK)

TUBE, FLEXIBLE VINYL(8AT)

CLAMP

CLIP (8A1)

CLIP (8J7)

HOUSING STRAINER ASSY

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLAIN

TUBE,FLEXIBLE VINYL(85R)

CLIP (8A1)

PIPE, JOINT

TUBE, FLEXIBLE VINYL(8AK)
