Description

Price

1

C.D.I. UNIT ASSEMBLY

81E-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

4

NUT, NYLON

95707-06300-00

$3.50

5

IGNITION COIL ASSY

85T-82310-06-00

$79.99

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

9

GROMMET 1

8W6-82355-00-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

12

SEAL, PLUG CAP

8G8-82372-00-00

Unavailable

13

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

14

UNAVAILABLE IN PRICE BOOK

[8J-98250-82-00

Unavailable

15

BUZZER

87L-83383-00-00

Unavailable

16

NUT, U FLANGE

95604-06200-00

Unavailable

17

UNAVAILABLE IN PRICE BOOK

[87-L8259-00-00

Unavailable

18

WIRE HARNESS ASSEMBLY

87L-82590-10-00

Unavailable

19

CLAMP

90465-08028-00

Unavailable

20

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

21

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

22

WIRE, SUB-LEAD

87L-82318-01-00

Unavailable

23

CLAMP(4MX)

90465-06376-00

Unavailable

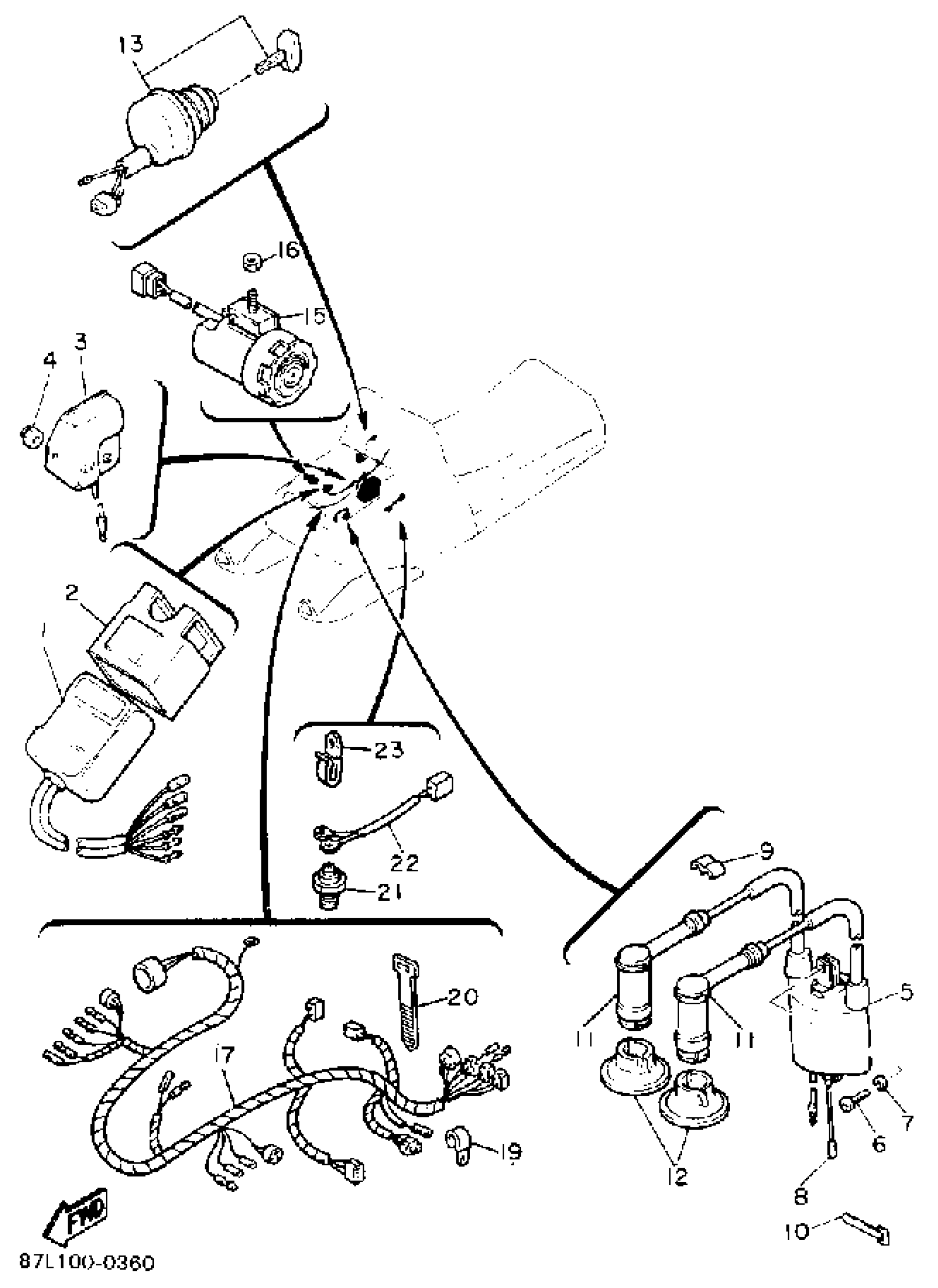

Yamaha ET400TRP (ENTICER LTR) 1990 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

NUT, NYLON

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, SPRING

WIRE, SUB-LEAD

GROMMET 1

BAND, SWITCH CORD

PLUG CAP ASSEMBLY

SEAL, PLUG CAP

MAIN SWITCH ASSY

UNAVAILABLE IN PRICE BOOK

BUZZER

NUT, U FLANGE

UNAVAILABLE IN PRICE BOOK

WIRE HARNESS ASSEMBLY

CLAMP

BAND, SWITCH CORD

NEUTRAL SWITCH ASSY

WIRE, SUB-LEAD

CLAMP(4MX)
