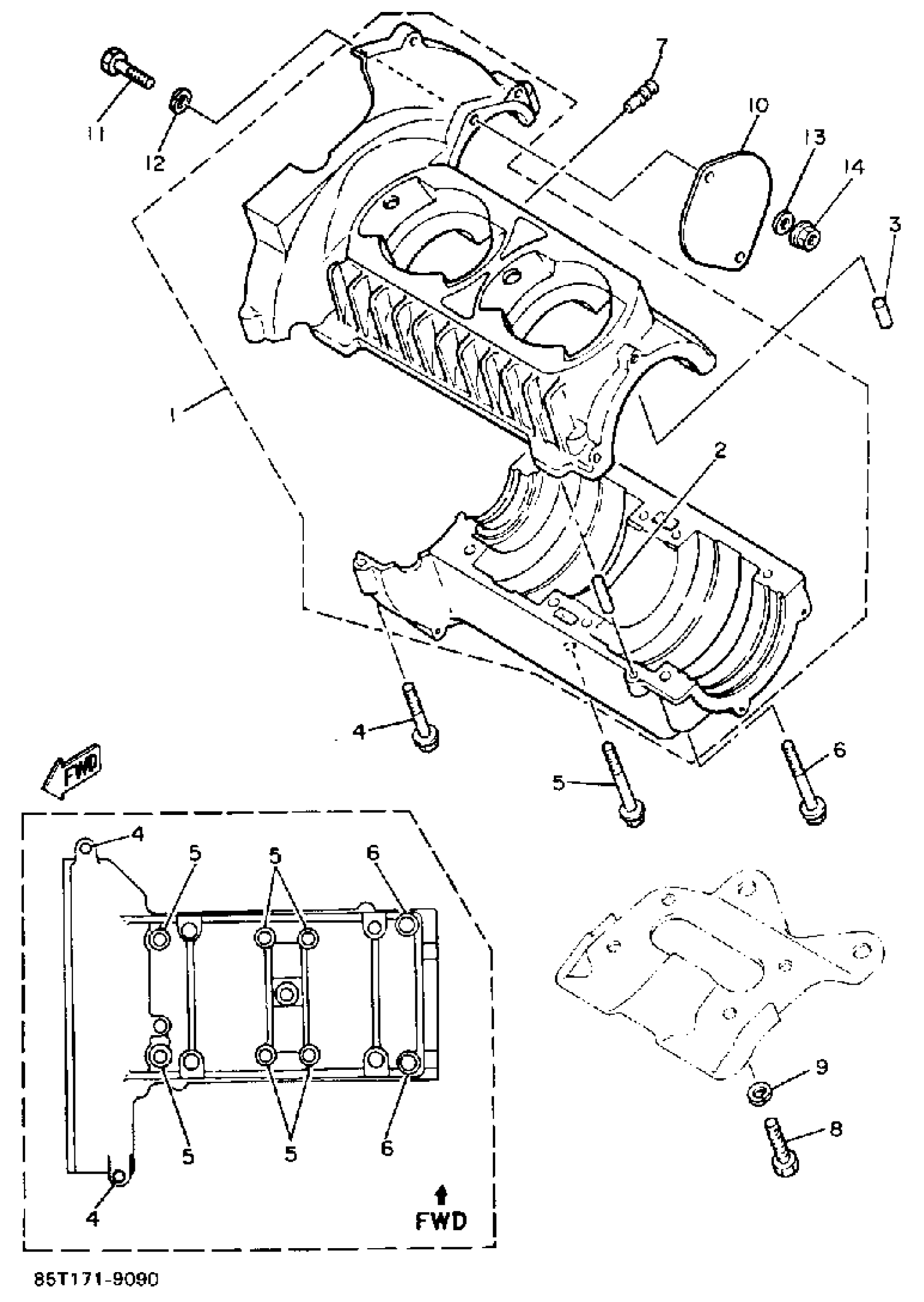

Yamaha ET400TRP (ENTICER LTR) 1990 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

85T-15100-01-00

Unavailable

2

PIN, DOWEL (8G8)

93605-10108-00

$8.49

3

PIN (2H7)

93603-10049-00

Unavailable

4

BOLT, FLANGE

95817-08040-00

$7.49

5

BOLT, FLANGE

95817-08060-00

$3.76

6

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

7

PIPE, JOINT

8G8-24461-00-00

Unavailable

8

BOLT, DOME HEAD

90106-10034-00

Unavailable

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

PLATE

8K4-12633-00-00

Unavailable

11

BOLT

97017-08035-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

NUT, FLANGE

95704-08500-00

$8.49
