CARBURETOR

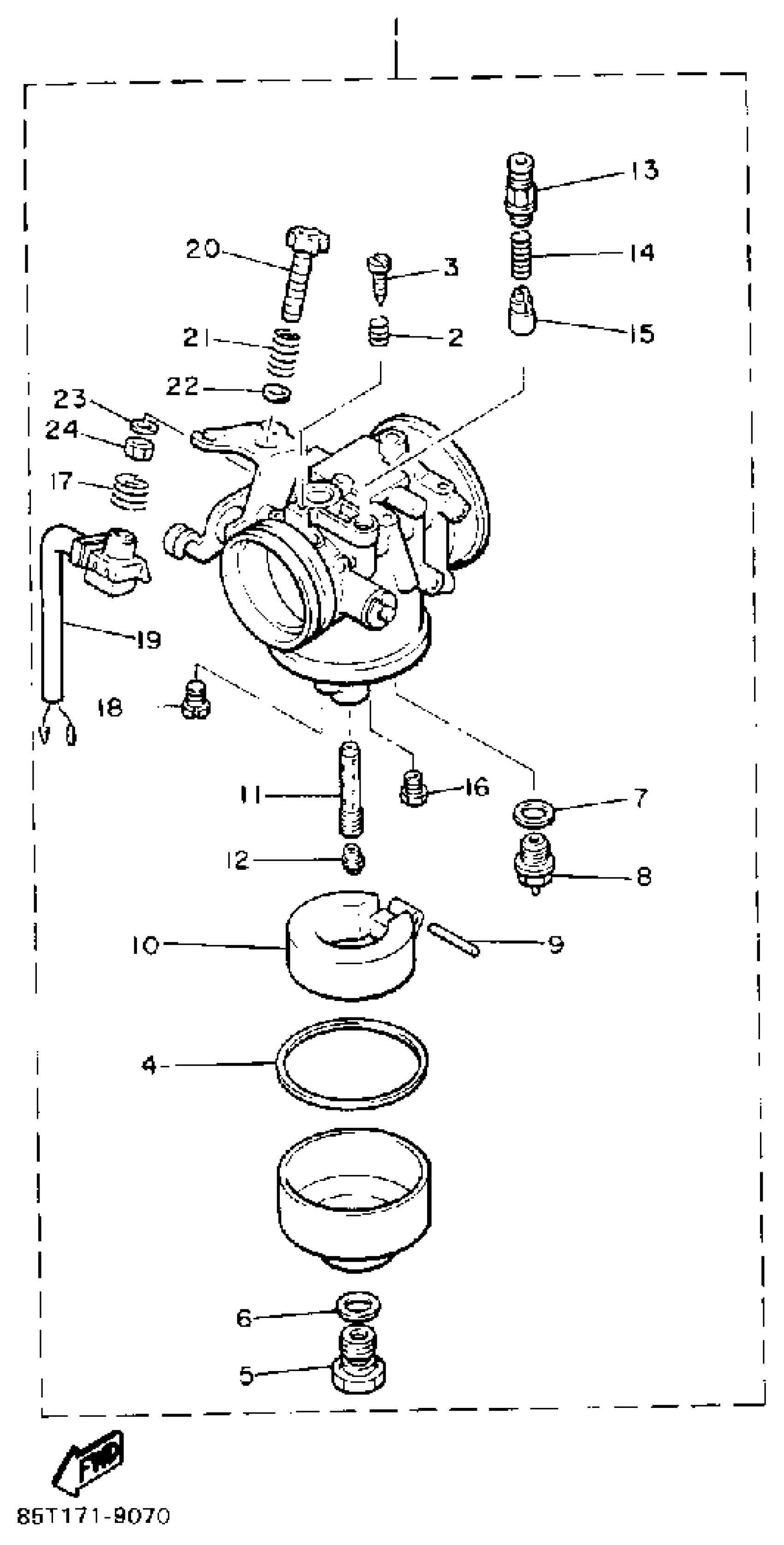

Yamaha ET400TRP (ENTICER LTR) 1990 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
85T-14101-01-00
Unavailable
2
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
3
SCREW, PILOT ADJUSTING
7R5-14211-00-00
Unavailable
4
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
5
HOLDER
8M6-14261-00-00
$46.99
6
GASKET
286-14198-00-00
$9.99
7
WASHER, VALVE SEAT
214-14195-00-00
$7.99
8
VALVE SEAT ASSY
168-14190-15-00
$42.99
9
PIN,FLOAT
8M6-14186-00-00
$9.49
10
FLOAT ASSY
8M6-14185-00-00
$91.99
11
. NOZZLE, MAIN
8Y2-14941-3C-00
Unavailable
12
JET, MAIN (#130)
3G2-14231-26-A0
$10.99
12
JET, MAIN (#135)
3G2-14231-27-00
$13.49
12
JET, MAIN (#140)
3G2-14231-28-00
$15.49
12
JET,MAIN #132.5
3G2-1423A-77-00
$13.49
12
JET,MAIN #142.5
3G2-1423A-79-00
Unavailable
12
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
13
CAP, PLUNGER
8G8-14174-00-00
Unavailable
14
SPRING, PLUNGER
127-14135-00-00
Unavailable
15
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
16
JET, PILOT (# 80)
193-14142-80-00
Unavailable
17
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
18
CAP
8V0-14118-00-00
Unavailable
19
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
20
. SCREW, THROTTLE
8X0-14122-01-00
Unavailable
21
SPRING
8X0-14500-00-00
Unavailable
22
RING
8X0-14184-00-00
Unavailable
23
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
24
NUT
8X0-14358-00-00
Unavailable
