- ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989
TRACK DRIVE 2

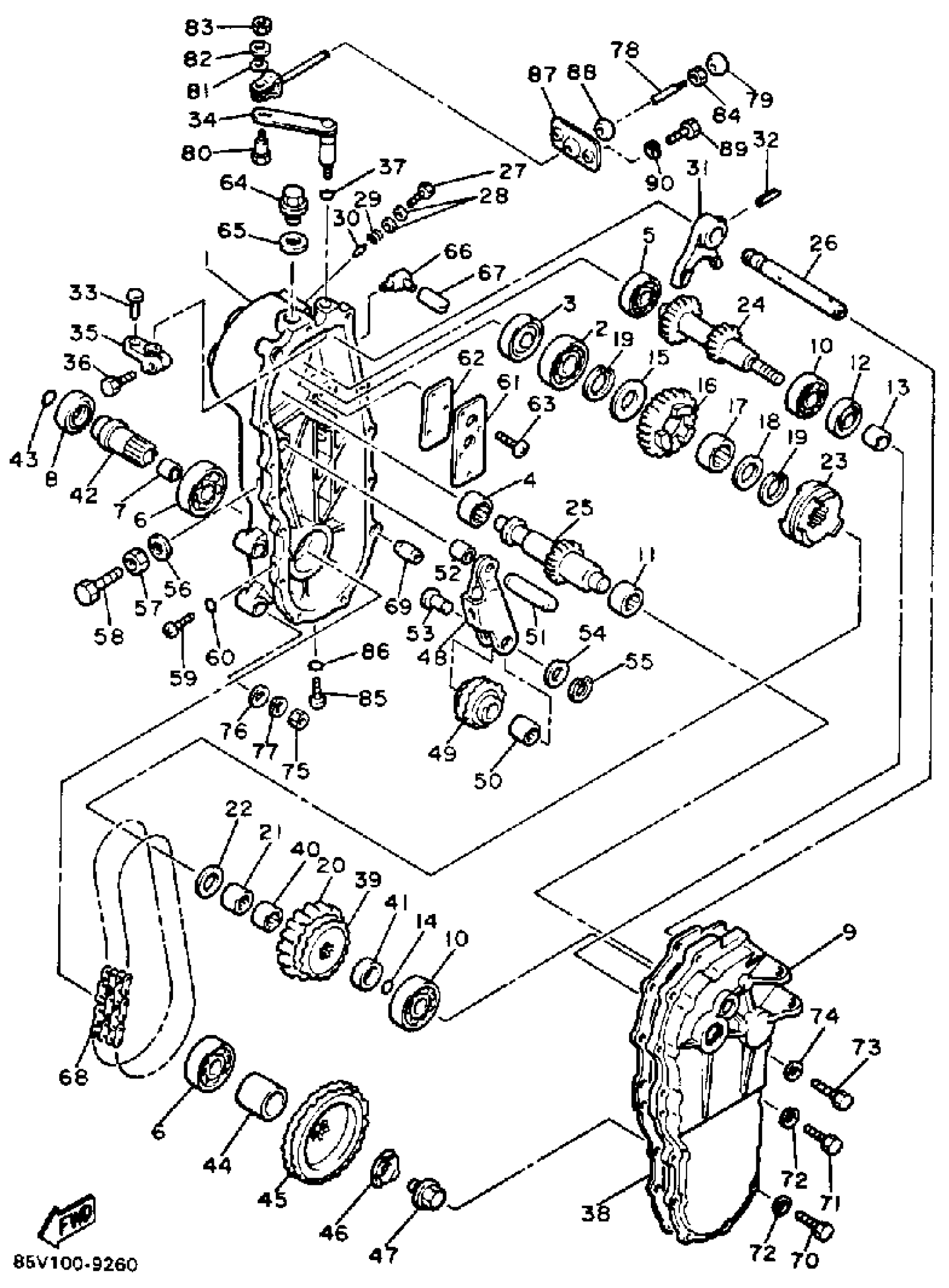

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 TRACK DRIVE 2 Diagram
#
39
SPRKT, CHAIN DRDRIVE (15T)
8X2-17682-50-00
Unavailable
40
BRG,CYL-CAL ROLLER 10G KY
93315-11720-00
$32.99
41
COLLAR
90387-171H7-00
Unavailable
42
JOURNAL 1
868-47571-00-00
Unavailable
43
O-RING (437)
93210-24235-00
$7.49
44
COLLAR
90387-35364-00
Unavailable
45
SPROCKET, CHN DRVNDRIVEN (31T)
8V2-47548-10-00
Unavailable
45
SPROCKET, CHN DRVNDRIVEN (32T)
8X2-47548-20-00
Unavailable
45
SPROCKET, CHN DRVNDRIVEN (33T)
8X5-47548-30-00
Unavailable
46
WASHER, LOCK
90215-30217-00
Unavailable
47
BOLT
90109-241A2-00
Unavailable
48
HOLDER
8V2-47613-00-00
Unavailable
49
WHEEL
8X5-47612-00-00
Unavailable
50
BRG,CYL-CAL ROLLER 11G KY
93315-21227-00
$45.99
51
PIN, DOWEL
93612-47207-00
Unavailable
52
COLLAR (4V4)
90387-121E8-00
Unavailable
53
PIN, SPEC''L SHAPE
90249-12163-00
Unavailable
54
WASHER, PLATE (583)
90201-12631-00
Unavailable
55
CIRCLIP(10Y)
99009-12400-00
Unavailable
56
WASHER SEAL 256111730200
90210-10004-00
Unavailable
57
NUT (682)
95380-10700-00
Unavailable
58
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
59
SCREW PAN HEAD
98580-06010-00
Unavailable
60
GASKET 838153840000
90430-06016-00
Unavailable
61
PLATE
8G8-47591-00-00
Unavailable
62
GASKET
85T-47592-00-00
Unavailable
63
SCREW, BIND(J45)
98980-06012-00
Unavailable
64
PLUG, STRAIGT SCREW (2A2)
90340-22047-00
Unavailable
65
GASKET (1L9)
90430-22144-00
Unavailable
66
BREATHER
3YJ-15371-00-00
Unavailable
67
HOSE (L420)
90445-092K1-00
Unavailable
68
CHAIN 84G ET400TRN
94890-07080-00
Unavailable
69
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
70
BOLT,SOCKET
91317-06035-00
Unavailable
71
BOLT,SOCKET
91317-06045-00
Unavailable
72
WASHER(6TA)
92907-06600-00
Unavailable
73
BOLT (83L)
97022-06045-00
Unavailable
74
WASHER, SPRING
92995-06100-00
Unavailable
75
NUT(6L2)
95333-08600-00
Unavailable
76
WASHER, PLAIN
92990-08200-00
Unavailable
77
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
78
ARM, SHIFT
8X2-18112-00-00
Unavailable
79
KNOB, CHANGE
8V2-18199-00-00
Unavailable
80
BOLT(3GB)
90109-061F3-00
Unavailable
81
WASHER 1
8X2-18137-00-00
Unavailable
82
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
83
NUT, NYLON
95707-06300-00
Unavailable
84
NUT(650)
95380-06700-00
Unavailable
85
SCREW, BIND(2TV)
98980-06008-00
Unavailable
86
GASKET (4V2)
90430-06166-00
Unavailable
87
COVER, SHIFT SHAFT
8X2-18129-00-00
Unavailable
88
BUSH, SPEC''L NYLON
90386-08128-00
Unavailable
89
BOLT, HEXAGON
97013-05010-00
Unavailable
90
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
