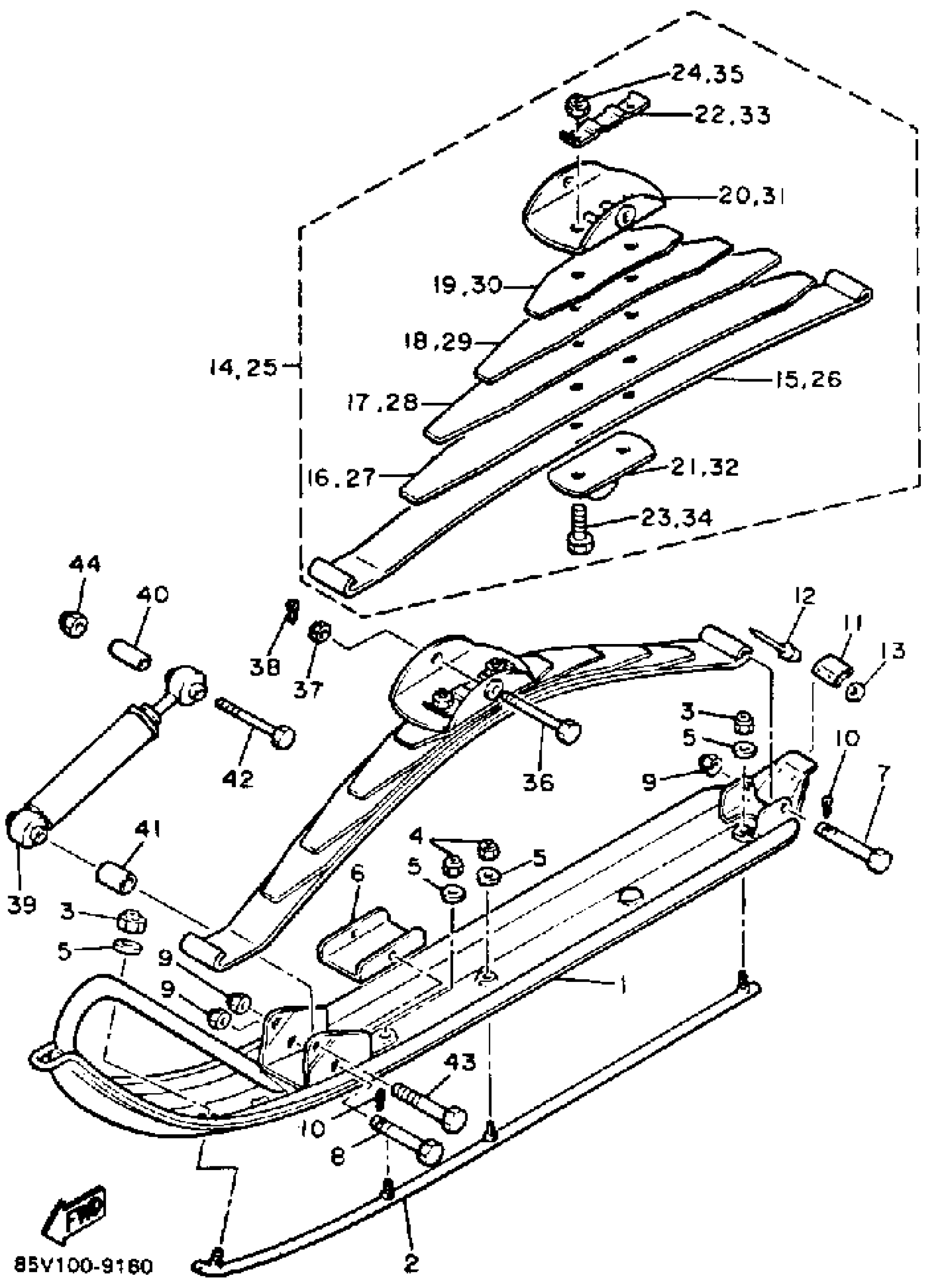

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 SKI Diagram
#
1
SKI 1
85T-23710-09-00
Unavailable
2
RUNNER 1
8E3-23731-00-XX
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
NUT
90185-08055-00
$9.49
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
PLATE, WEAR
888-23735-00-00
Unavailable
7
BOLT, HEX SKT HEADSOCKET HEAD
90110-08059-00
Unavailable
8
BOLT, HEX SKT HEADSOCKET HEAD
90110-08058-00
Unavailable
9
NUT, NYLON
95717-08300-00
$2.70
10
PIN, COTTER
91490-20025-00
$1.99
11
STOPPER
8V2-23765-00-00
Unavailable
12
RIVET, BLIND (8R6)
90267-48086-00
$4.14
13
WASHER, PLATE
90201-04027-00
$3.02
14
SPRING ASSEMBLY 1
8X2-23760-00-00
Unavailable
15
. LEAF 1
863-23761-00-00
Unavailable
16
. LEAF 2
863-23762-00-00
Unavailable
17
. LEAF 3
863-23763-00-00
Unavailable
18
. LEAF 4
863-23764-00-00
Unavailable
19
. LEAF 5
863-23771-00-00
Unavailable
20
. SADDLE 1
806-23766-00-00
Unavailable
21
. SEAT, SPRING 1
878-23768-00-00
Unavailable
22
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
23
BOLT
90109-105E9-00
Unavailable
24
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
25
SPRING ASSEMBLY 2
8X2-23770-00-00
Unavailable
26
. LEAF 1
863-23761-00-00
Unavailable
27
. LEAF 2
863-23762-00-00
Unavailable
28
. LEAF 3
863-23763-00-00
Unavailable
29
. LEAF 4
863-23764-00-00
Unavailable
30
. LEAF 5
863-23771-00-00
Unavailable
31
. SADDLE 1
806-23766-00-00
Unavailable
32
. SEAT, SPRING 1
878-23768-00-00
Unavailable
33
WASHER, ROCK (8J5)
90215-10155-00
Unavailable
34
BOLT
90109-105E9-00
Unavailable
35
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
36
BOLT, WITH HOLE
90102-10023-00
Unavailable
37
NUT, CASTLE
95307-10900-00
Unavailable
38
PIN, COTTER
91490-25020-00
Unavailable
39
CUSHION ASSY
8J6-23350-00-00
Unavailable
40
COLLAR (878)
90387-08262-00
Unavailable
41
COLLAR (864)
90387-08224-00
Unavailable
42
BOLT (663)
97013-08060-00
Unavailable
43
BOLT(6TC)
97027-08070-00
Unavailable
44
NUT, NYLON
95717-08300-00
$2.70
