- ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989
SHROUD-WINDSHIELD

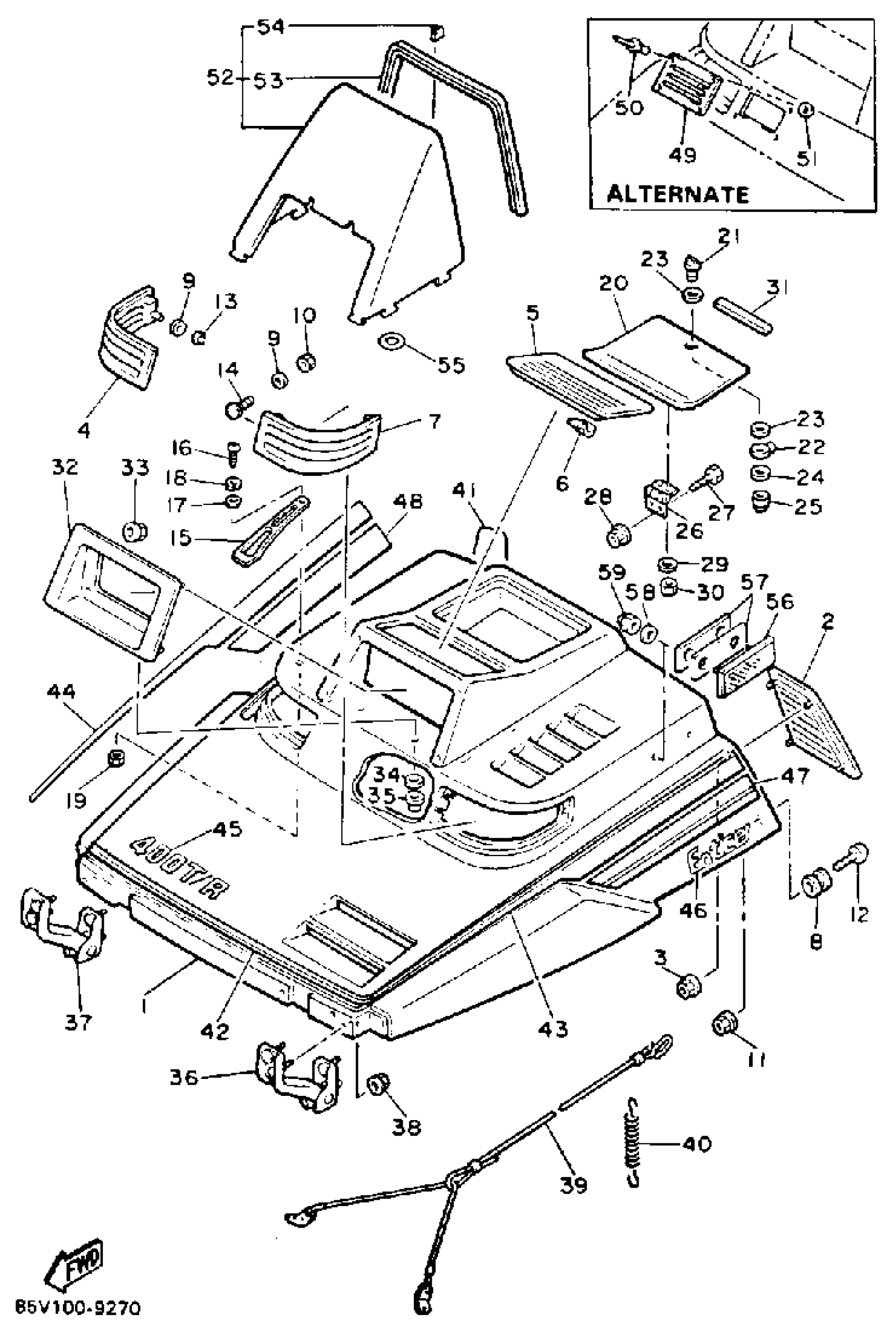

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 SHROUD-WINDSHIELD Diagram
#
1
SHROUD ASY
85T-77111-00-00
Unavailable
2
LOUVER 1
8W8-77131-00-00
Unavailable
3
NUT, FLANGE(3GM)
95707-05500-00
$8.49
4
LOUVER 3
84F-77133-00-00
Unavailable
5
LOUVER 4
8Y4-77134-00-00
Unavailable
6
CLIP
90468-05094-00
Unavailable
7
LOUVER 5
84F-77109-00-00
Unavailable
8
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
9
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
10
NUT, NYLON
95707-05300-00
$4.24
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, BINDING
98907-06030-00
$8.49
13
NUT, SPRING(2MA)
90183-04045-00
Unavailable
14
BOLT
90109-051E9-00
Unavailable
15
LOUVER 2
85T-77132-00-00
Unavailable
16
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
17
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
18
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
19
NUT, HEXAGON (663)
95380-05600-00
Unavailable
20
COVER, LUGGAGE BOX
8Y4-77392-00-00
Unavailable
21
KNOB
8L9-77324-00-00
Unavailable
22
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
23
WASHER, PLAIN(735)
90201-10119-00
Unavailable
24
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
25
NUT, NYLON
95707-05300-00
$4.24
26
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
27
BOLT
97006-05014-00
Unavailable
28
NUT, FLANGE(3GM)
95707-05500-00
$8.49
29
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
30
NUT, CAP
95307-05800-00
Unavailable
31
DAMPER 2
8W6-77374-00-00
Unavailable
32
BODY, HEADLIGHT
8Y2-84311-00-00
Unavailable
33
NUT, FLANGE(3GM)
95707-05500-00
$8.49
34
WASHER, PLATE
90201-04027-00
Unavailable
35
NUT, SPRING (1L9)
90183-04012-00
Unavailable
36
HINGE ASSEMBLY
8W6-77140-00-00
Unavailable
37
HINGE ASSEMBLY 2
8W6-7714A-00-00
Unavailable
38
NUT, FLANGE(7NB)
95780-06500-00
$2.60
39
STOPPER,SHROUD
89X-77118-00-00
Unavailable
40
CLAMP, ROD
80X-77159-00-00
Unavailable
41
LABEL, WARNING
80E-77458-00-00
Unavailable
42
ORNAMENT 1
84F-77163-00-00
Unavailable
43
ORNAMENT 2
84F-77164-00-00
Unavailable
44
ORNAMENT 3
84F-77169-00-00
Unavailable
45
EMBLEM 1
85V-77351-00-00
Unavailable
46
EMBLEM 2
84F-77352-00-00
Unavailable
47
ORNAMENT 4
84F-77113-00-00
Unavailable
48
ORNAMENT 5
84F-77114-00-00
Unavailable
49
LOUVER 6
85T-77108-00-00
Unavailable
50
RIVET (856)
90267-48014-00
Unavailable
51
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
52
WINDSHIELD,ET340
8X1-77210-10-XX
Unavailable
53
TRIM,UPPER
87K-77213-00-00
Unavailable
54
. FASTENER
80V-77223-00-00
Unavailable
55
FASTNER
82H-77223-00-00
Unavailable
56
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
57
BASE, REFLECTOR
80E-85115-00-00
Unavailable
58
WASHER, PLAIN (646)
92990-05600-00
Unavailable
59
NUT, NYLON
95707-05300-00
$4.24
