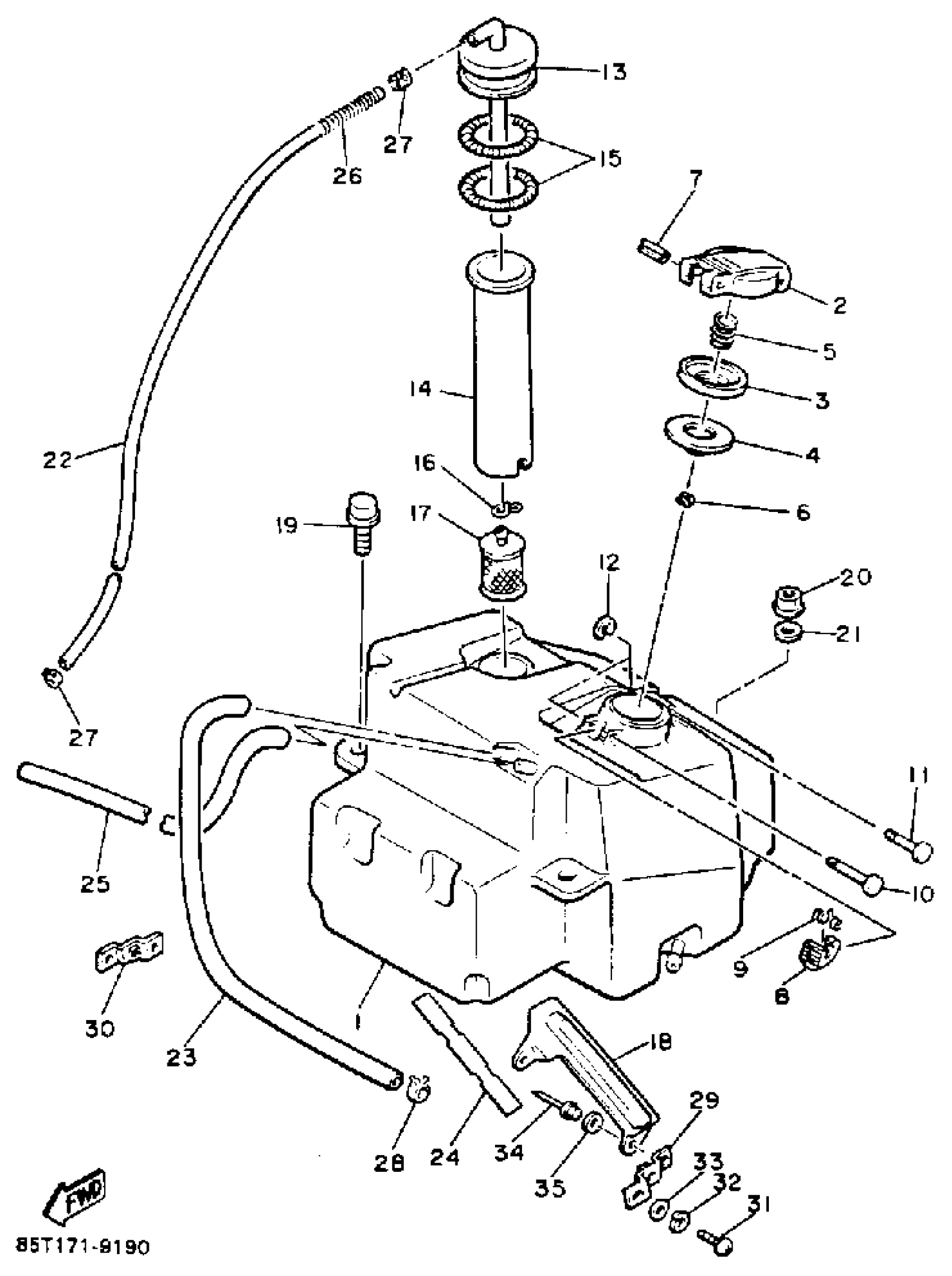

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

8W6-24111-00-00

Unavailable

2

BODY, CAP

8W6-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING (8W6)

91609-25050-00

$0.90

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

PIN (813)

90249-03017-00

$7.49

11

PIN (8W6)

90249-03175-00

Unavailable

12

CIRCLIP (604)

93430-02001-00

$8.49

13

PIPE, SUCTION 1

83R-24335-00-00

$28.99

14

PIPE, SUCTION 2

8V0-24336-00-00

Unavailable

15

SPRING, TENSION (8R4)

90506-06261-00

$9.49

16

CLIP

90467-11028-00

Unavailable

17

FILTER ASSY

8H5-24560-00-00

Unavailable

18

GAUGE, FUEL

8W6-24179-00-00

Unavailable

19

BOLT, WITH WASHER

90119-08113-00

Unavailable

20

NUT, NYLON

95717-08300-00

Unavailable

21

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

23

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

Unavailable

24

REFLECTOR 1

80X-7716E-00-00

Unavailable

25

HOSE

90446-09015-00

Unavailable

26

PROTECTOR, PIPE

8F3-24326-00-00

Unavailable

27

CLIP

90467-11028-00

Unavailable

28

CLIP (8A1)

90467-09026-00

Unavailable

29

BRACKET 1

8W6-77721-00-00

Unavailable

30

BRACKET 2

8W6-77722-00-00

Unavailable

31

SCREW, PAN

98507-06014-00

Unavailable

32

WASHER, SPRING

92907-06100-00

Unavailable

33

WASHER(6TA)

92907-06600-00

Unavailable

34

RIVET, BLIND (8H4)

90267-48053-00

Unavailable

35

WASHER, PLATE

90201-04027-00

Unavailable
