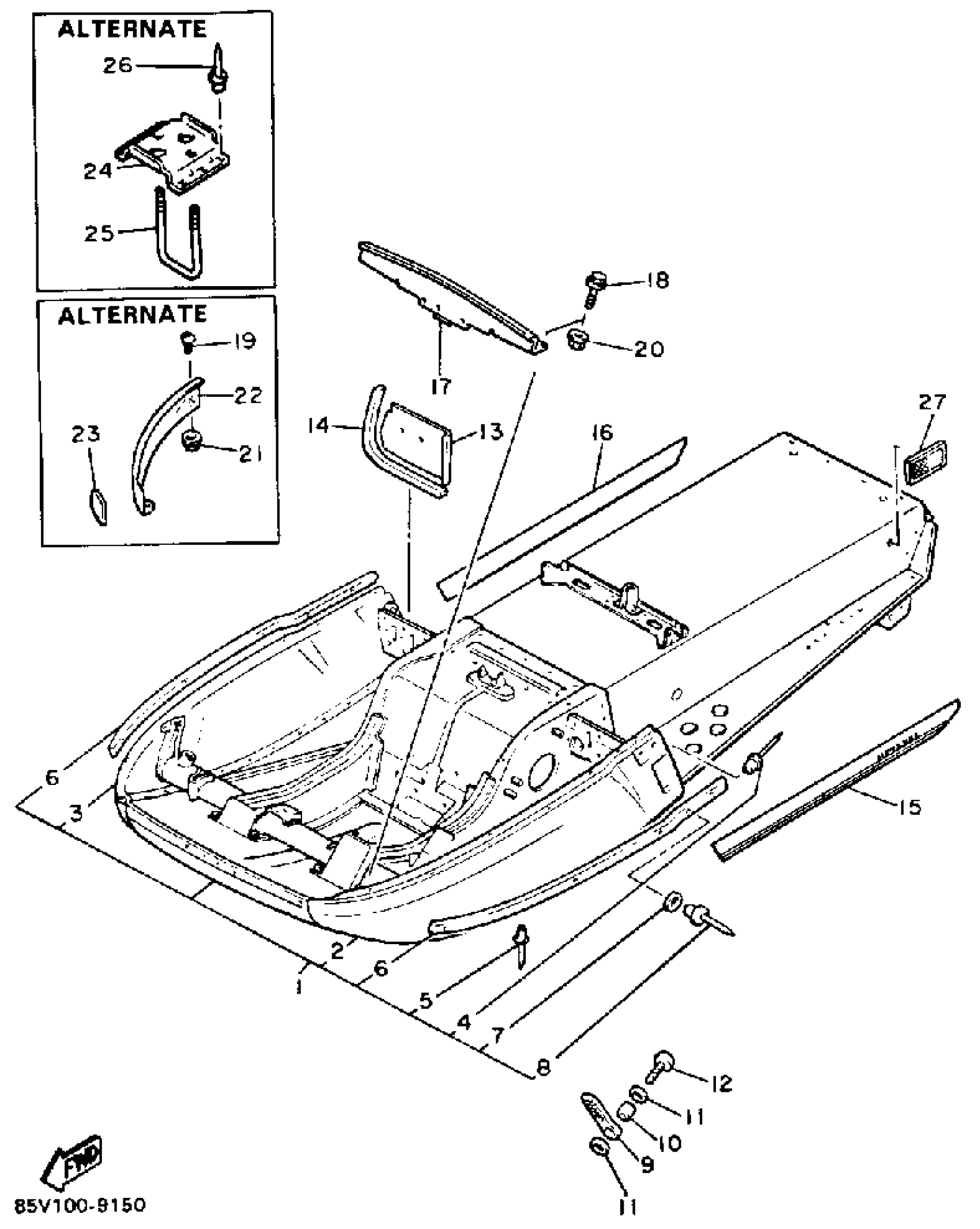

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 FRAME Diagram
#
1
FRAME
84G-21910-10-00
Unavailable
2
. HOOD 1
8X0-21982-00-00
Unavailable
2
. HOOD 1
8X0-21982-00-00
Unavailable
3
. HOOD 2
8X0-21983-00-00
Unavailable
3
. HOOD 2
8X0-21983-00-00
Unavailable
4
RIVET, BLIND (8H4)
90267-48053-00
$3.61
5
RIVET, BLIND (8J5)
90267-48057-00
$8.49
6
. TRIM 1
8W6-2196T-00-00
Unavailable
7
WASHER
90201-04015-00
Unavailable
8
RIVET,BLIND
90267-40080-00
Unavailable
9
BODY, LATCH 1
8M6-77171-00-00
Unavailable
10
COLLAR (420)
90387-06241-00
$8.49
11
WASHER, PLATE 8221447500
90201-06057-00
$5.60
12
SCREW, BINDING
98907-06025-00
$8.49
13
COVER 2
8Y2-2198G-00-00
Unavailable
14
SHIELD, NOISE
8Y2-2199F-00-00
Unavailable
15
EMBLEM 4
84G-77354-00-00
Unavailable
16
EMBLEM 5
84G-77355-00-00
Unavailable
17
COVER,1
85T-2198F-00-00
Unavailable
18
BOLT, FLANGE
95817-06012-00
Unavailable
19
SCREW, BINDING
98907-06012-00
Unavailable
20
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
21
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
22
PROTECTOR 2
82H-77552-00-00
Unavailable
23
PROTECTOR 3
82H-77553-01-00
Unavailable
24
. BRACKET, BATTERY
8W8-2199G-00-00
Unavailable
25
. SCREW, FITTING
8J4-82133-00-00
Unavailable
26
RIVET, BLIND (8H4)
90267-48053-00
$3.61
27
REAR REFLECTOR ASSY
81G-85130-00-00
Unavailable
