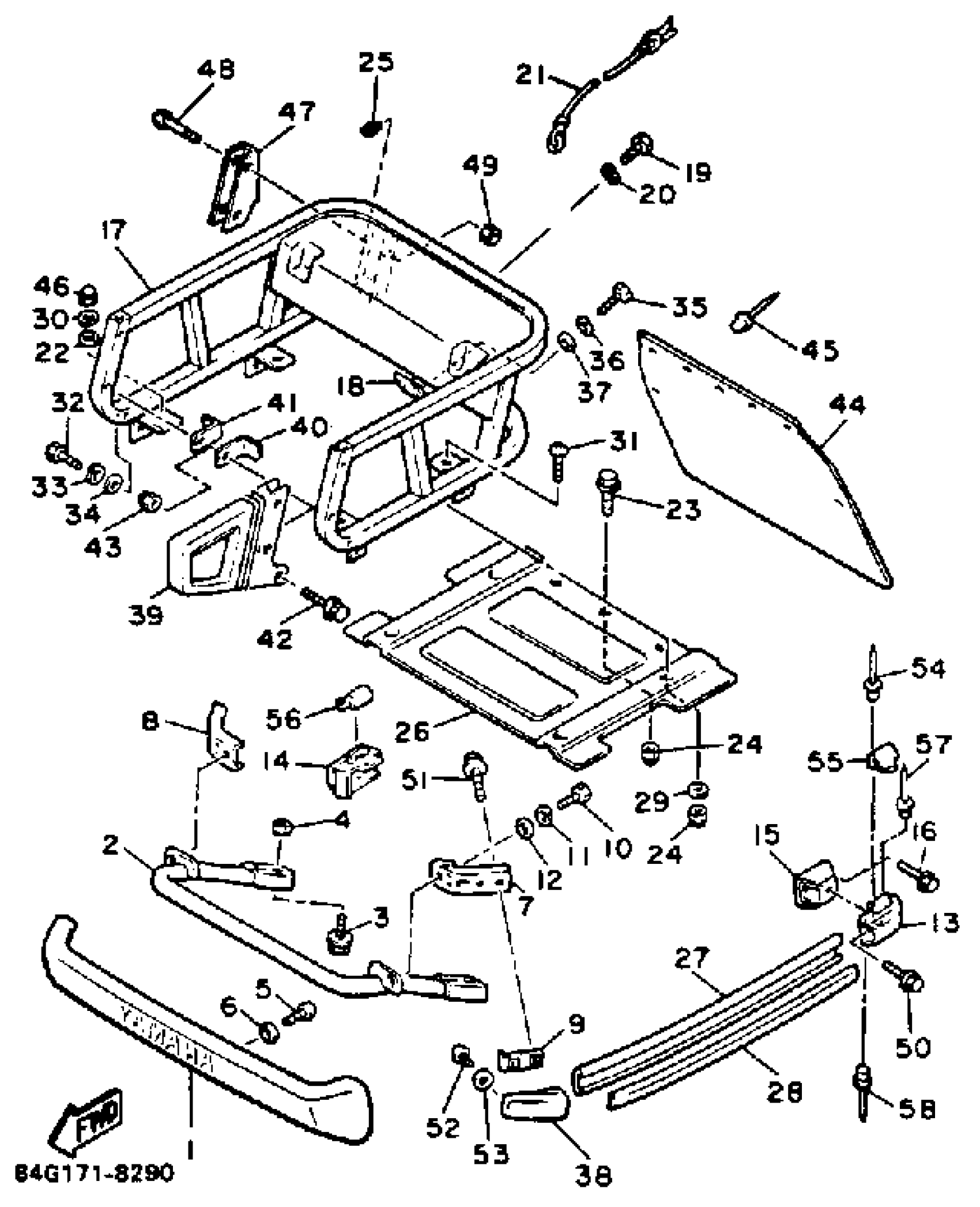

Yamaha ET400TRN (ENTICER LTR (LONG TRACK+REVERSE)) 1989 BUMPER Diagram
#
1
BUMPER, FRONT 1
84F-77511-00-00
Unavailable
2
BUMPER, FRONT 2
8W6-77512-00-00
Unavailable
3
BOLT, FLANGE
95817-08035-00
$9.49
4
NUT, U
95617-08100-00
$9.49
5
SCREW, PANHEAD TAPPING (J20)
97780-60116-00
$2.70
6
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
7
BRACKET, FRONT L
80M-77531-00-00
Unavailable
8
BRACKET, FRONT R
80M-77532-00-00
Unavailable
9
PLATE, BACK UP
8X0-77527-00-00
Unavailable
10
BOLT, HEXAGON
97017-08016-00
$8.49
11
WASHER(JN5)
92907-08100-00
$8.49
12
WASHER(6TA)
92907-08600-00
$3.03
13
END, BUMPER
8X0-77523-00-00
Unavailable
14
END, BUMPER
8X0-77524-00-00
Unavailable
15
STAY 1
8X0-77535-00-00
Unavailable
16
BOLT, FLANGE
95817-06012-00
Unavailable
17
BUMPER, REAR 1
81M-77541-00-00
Unavailable
18
BRACKET, HITCH 1
86D-77591-00-00
Unavailable
19
BOLT, HEXAGON
97017-08020-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
PIN, HINGE
8U1-77157-00-00
Unavailable
22
WASHER(6TA)
92907-08600-00
$3.03
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
NUT, NYLON
95717-08300-00
Unavailable
25
CLAMP
90464-48059-00
Unavailable
26
PROTECTOR 4
81M-77554-00-00
Unavailable
27
BUMPER, FRONT 3
8X0-77513-00-00
Unavailable
28
BUMPER, FRONT 4
8X0-77514-00-00
Unavailable
29
WASHER, PLATE (4W3)
90201-086A3-00
Unavailable
30
WASHER(JN5)
92907-08100-00
$8.49
31
SCREW, BINDING
98907-08020-00
Unavailable
32
BOLT, HEXAGON
97017-08016-00
$8.49
33
WASHER(JN5)
92907-08100-00
$8.49
34
WASHER(6TA)
92907-08600-00
$3.03
35
BOLT, HEXAGON
97027-08018-00
Unavailable
36
WASHER(JN5)
92907-08100-00
$8.49
37
WASHER(6TA)
92907-08600-00
$3.03
38
PROTECTOR 1
8X0-77551-00-00
Unavailable
39
GRIP, ASSIST 1
8X0-77571-00-00
Unavailable
40
WASHER 1
8X0-77525-00-00
Unavailable
41
WASHER 2
8X0-77526-00-00
Unavailable
42
BOLT, FLANGE
95817-08040-00
Unavailable
43
NUT, CROWN(82U)
90176-08063-00
Unavailable
44
FLAP
8X9-77595-00-00
Unavailable
45
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
46
NUT, CAP
95307-08800-00
Unavailable
47
PROTECTOR 2
8X0-77552-00-00
Unavailable
48
SCREW, PAN
98517-06030-00
Unavailable
49
NUT(4MY)
95307-06800-00
Unavailable
50
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
51
BOLT, FLANGE
95822-06025-00
Unavailable
52
SCREW PAN HEAD
98580-06010-00
Unavailable
53
WASHER, PLAIN (646)
92990-06600-00
Unavailable
54
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
55
BUSH, RUBBER 1
8X0-77515-00-00
Unavailable
56
BUSH, RUBBER 2
8X0-77516-00-00
Unavailable
57
RIVET(81E)
90269-05055-00
Unavailable
58
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
