1988 Yamaha Enticer LTR (Long Track+reverse (ET340TRM) Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1988 Yamaha Enticer LTR (Long Track+reverse (ET340TRM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

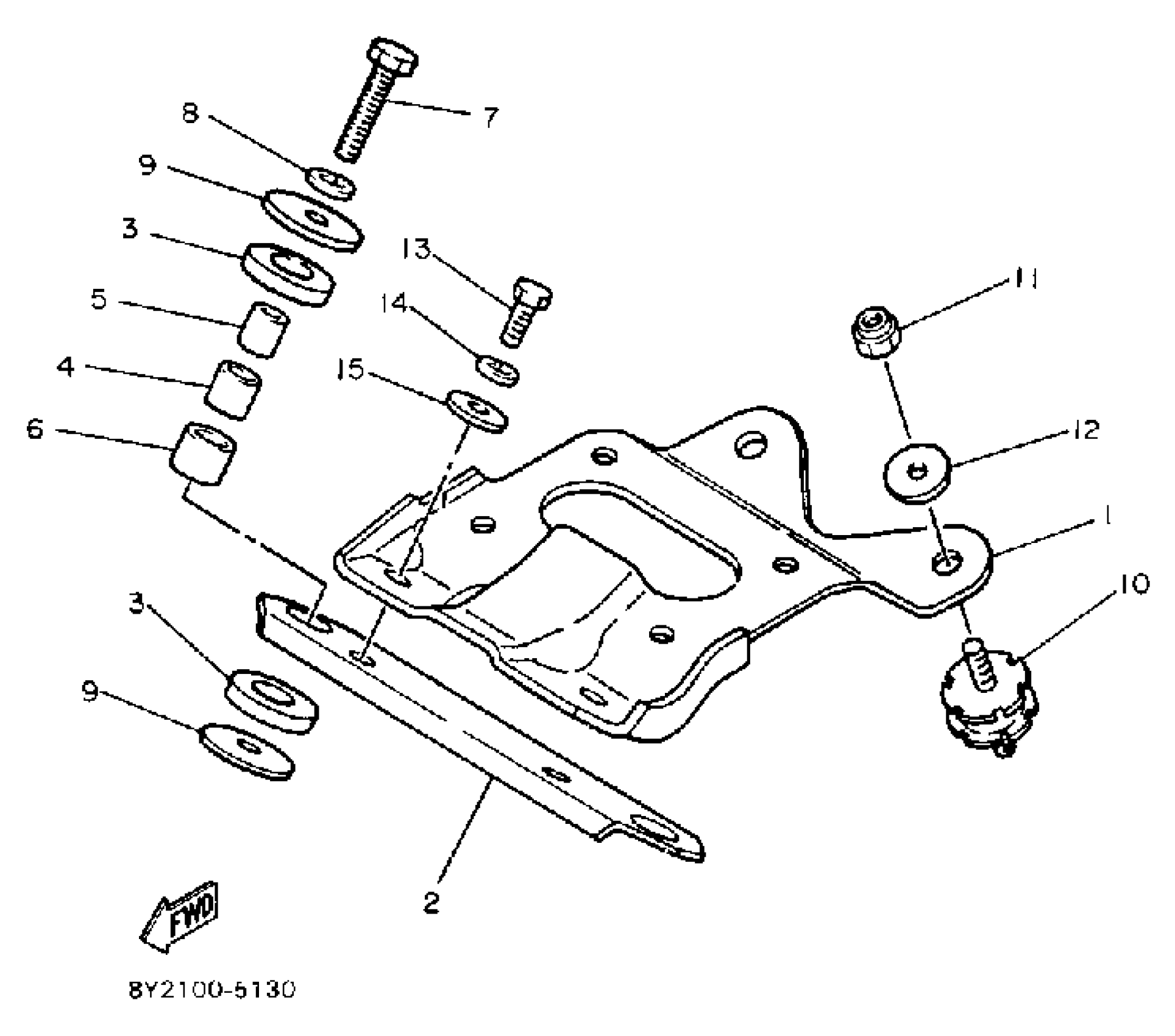

1988 Yamaha Enticer LTR (Long Track+reverse (ET340TRM) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8G8-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8G8-21419-00-00

1
Out of stock

3

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

4

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

5

COLLAR

90387-10514-00

1
Out of stock

6

COLLAR

90387-21515-00

1
Out of stock

7

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

9

WASHER (888)

90201-10151-00

—
Out of stock

10

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1
Out of stock

11

NUT, FLANGE(3BM)

95704-10500-00

1
Out of stock

12

WASHER, PLATE (856)

90201-10321-00

1
Out of stock

13

BOLT(6TD)

97017-10025-00

1
Out of stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1
Out of stock

15

WASHER (583)

90201-10639-00

1
Out of stock
