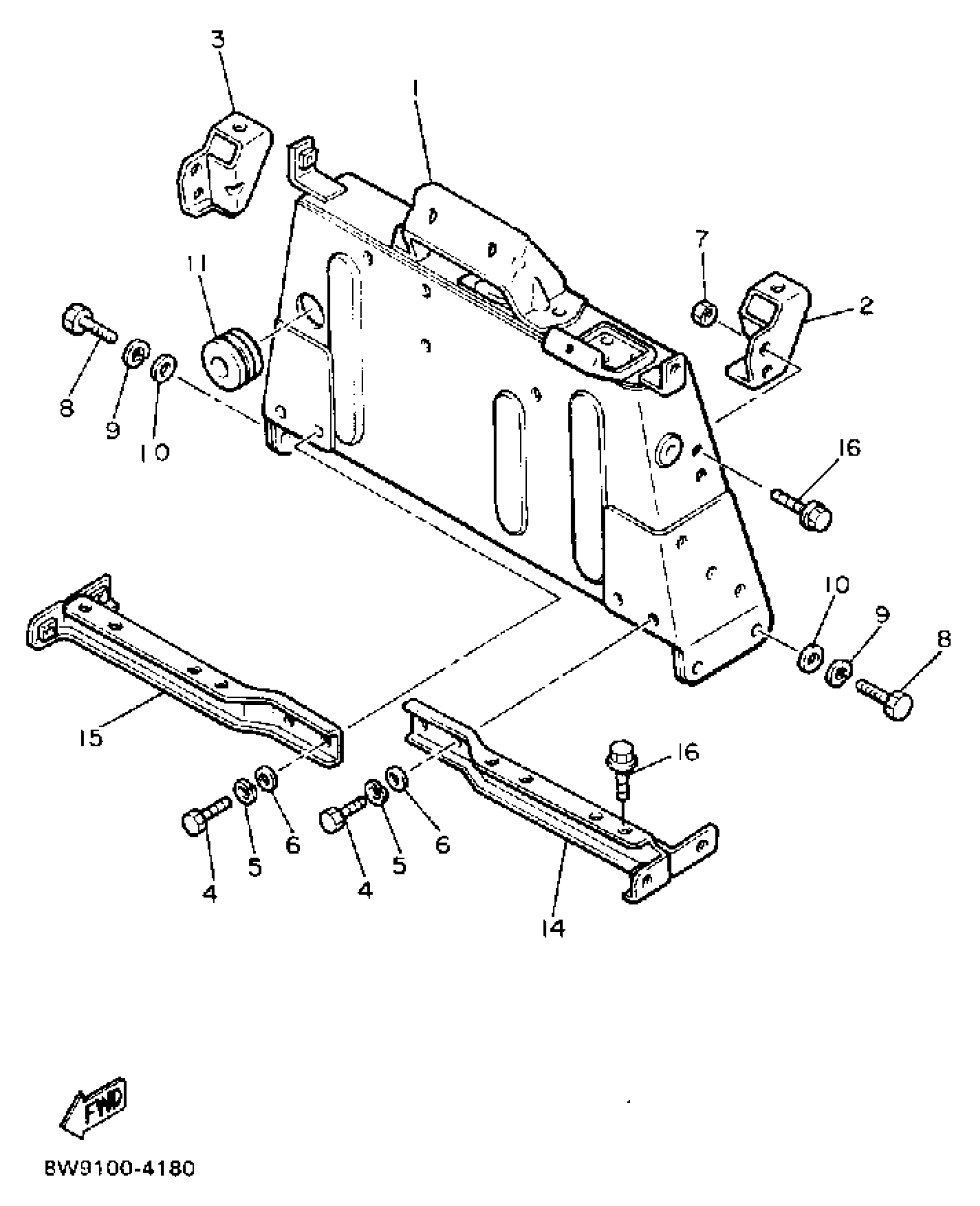

Yamaha ET340TM (ENTICER 340T (LONG TRACK)) 1988 STEERING GATE Diagram

GATE, STEERING

8W6-23871-00-00

Unavailable

STAY, FUEL TANK 1

8W6-24115-00-00

Unavailable

STAY, FUEL TANK

8W6-24116-00-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NUT, HEXAGON

95380-06600-00

Unavailable

BOLT(JA9)

90101-08691-00

$4.29

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

.. WASHER, PLATE

92990-08600-00

Unavailable

GROMMET (1H3)

90480-28191-00

$10.49

BOLT (661)

97013-06012-00

$5.60

WASHER, SPRING

92995-06100-00

Unavailable

BRACKET 13

82A-23898-00-00

Unavailable

BRACKET 14

82A-23899-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable
