- ET340TM (ENTICER 340T (LONG TRACK)) 1988
PUMP DRIVE - GEAR

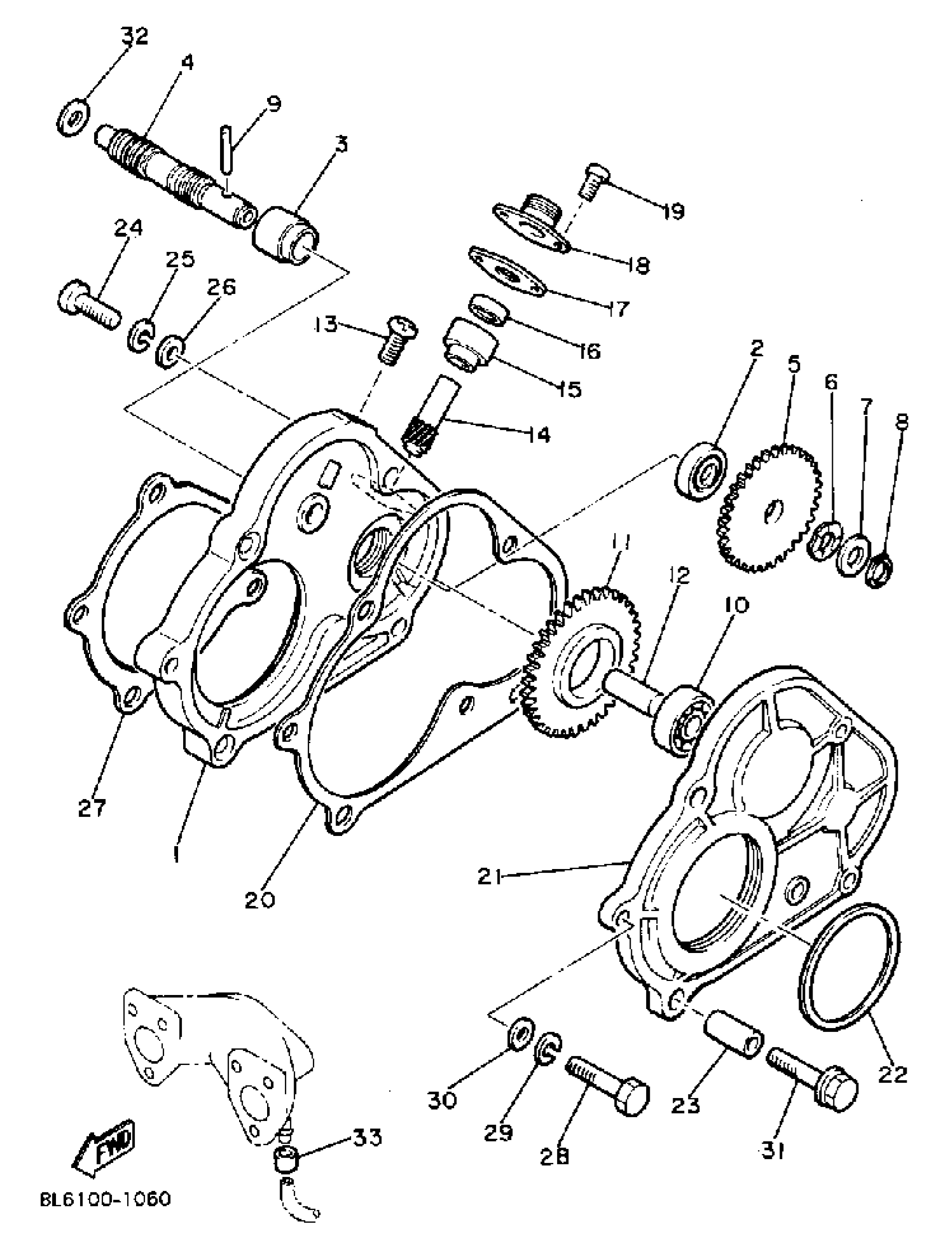

Yamaha ET340TM (ENTICER 340T (LONG TRACK)) 1988 PUMP DRIVE - GEAR Diagram
#
1
COVER, OIL PUMP
8G8-15416-00-00
Unavailable
2
OIL SEAL (J10)
93101-10090-00
$8.49
3
METAL, WORM SHAFT OUTER
821-13176-00-00
$17.49
4
SHAFT, WORM
821-13175-00-00
Unavailable
5
GEAR, DRIVE 2
821-13188-00-00
Unavailable
6
WASHER, WAVE (137)
90206-11016-00
Unavailable
7
PLATE, CAM THRUST
137-13148-00-00
Unavailable
8
CIRCLIP(10W)
99009-10400-00
$4.73
9
PIN,DOWEL (137)
93603-22028-00
$3.76
10
BRG,R-B 6000RS 32MM 30G KY
93306-00002-00
Unavailable
11
GEAR, IDLE
8G8-13179-00-00
Unavailable
12
SHAFT, IDLE GEAR
8G8-13342-00-00
$4.08
13
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
14
GEAR, DRIVEN (10T)
813-17841-00-00
Unavailable
15
BUSH, DRIVEN GEAR OUTER
821-17843-00-00
Unavailable
16
OIL SEAL (6X12X4-821)
93104-06033-00
Unavailable
17
GASKET
821-17818-02-00
Unavailable
18
CAP, HOUSING
821-17819-00-00
Unavailable
19
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
20
GASKET 2
8G8-15466-03-00
Unavailable
21
COVER, OIL PUMP R
8G8-15426-00-00
Unavailable
22
OIL SEAL, SR-TYPE
93112-53004-00
Unavailable
23
PIN, DOWEL
91810-18025-00
Unavailable
24
SCREW PAN HEAD
98580-06020-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
Unavailable
27
GASKET,O/PPCUR1
8G8-15456-03-00
Unavailable
28
BOLT, HEXAGON
97017-06030-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
WASHER, PLAIN (646)
92990-06600-00
Unavailable
31
BOLT, FLANGE
95817-06035-00
Unavailable
32
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
33
CLIP (2A6)
90468-02025-00
Unavailable
