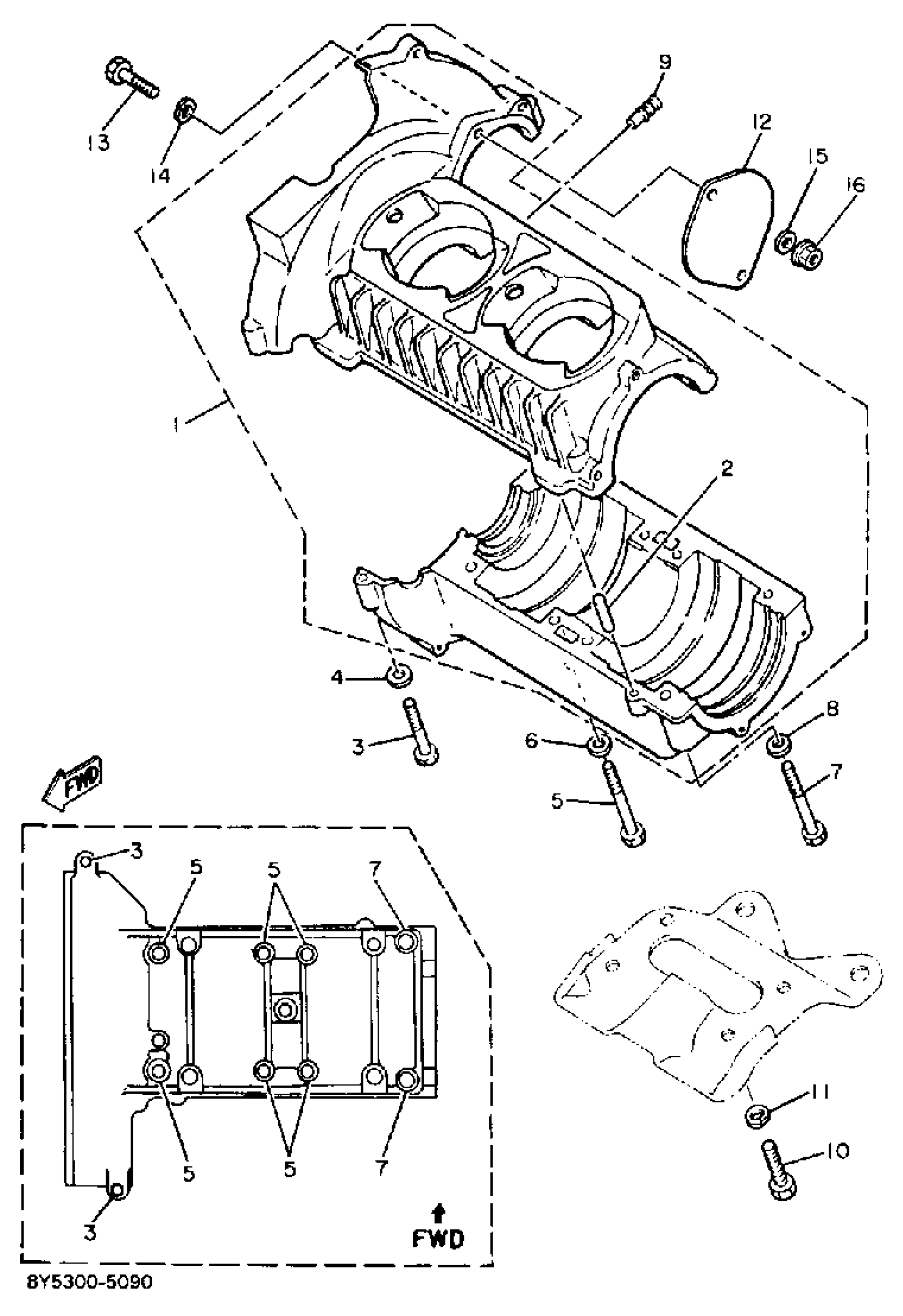

Yamaha ET340TM (ENTICER 340T (LONG TRACK)) 1988 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASY

8J9-15100-01-00

Unavailable

2

PIN, DOWEL (8G8)

93605-10108-00

$5.29

3

BOLT

97014-08040-00

$4.90

4

.. WASHER, PLATE

92990-08600-00

$2.17

5

BOLT (663)

97013-08060-00

$3.20

6

.. WASHER, PLATE

92990-08600-00

$2.17

7

BOLT(6TC)

97027-08070-00

Unavailable

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

PIPE, JOINT

8G8-24461-00-00

Unavailable

10

BOLT, DOME HEAD

90106-10034-00

Unavailable

11

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

12

PLATE

8K4-12633-00-00

Unavailable

13

BOLT

97013-08035-00

$4.48

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

.. WASHER, PLATE

92990-08600-00

$2.17

16

NUT, FLANGE

95704-08500-00

Unavailable
