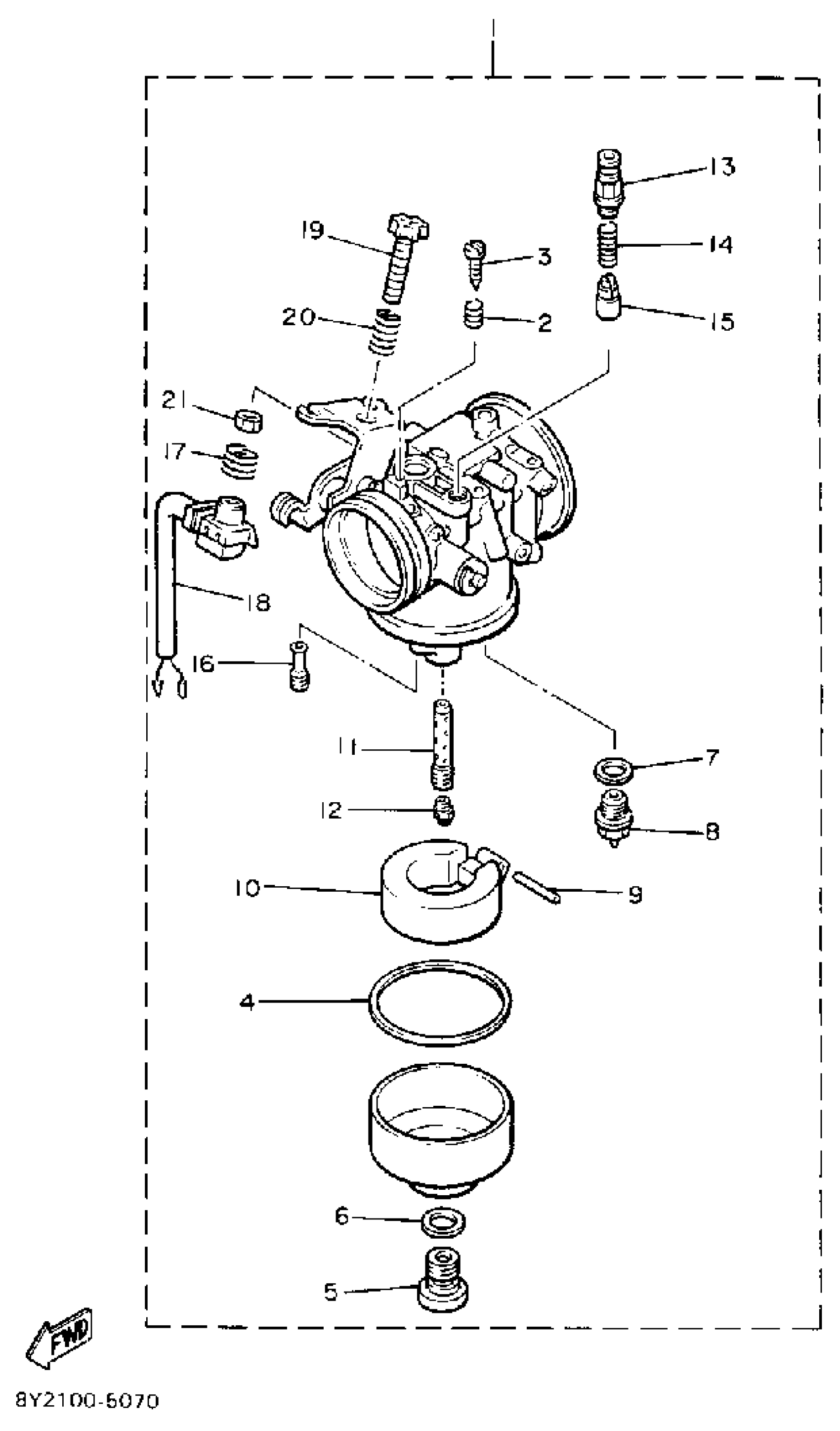

Yamaha ET340TM (ENTICER 340T (LONG TRACK)) 1988 CARBURETOR Diagram
#
Description
Price
1
CARBURETOR ASSEMBLY
80E-14101-02-00
Unavailable
2
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
3
SCREW, PILOT ADJUSTING
7R5-14211-00-00
Unavailable
4
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
5
HOLDER
8M6-14261-00-00
$46.99
6
GASKET
286-14198-00-00
$9.99
7
WASHER, VALVE SEAT
214-14195-00-00
$7.99
8
VALVE SEAT ASSY
168-14190-15-00
$42.99
9
PIN,FLOAT
8M6-14186-00-00
$9.49
10
FLOAT ASSY
8M6-14185-00-00
$91.99
11
. NOZZLE, MAIN
8Y2-14941-4A-00
Unavailable
12
JET, MAIN (#125)
3G2-14231-25-00
$13.49
12
JET, MAIN (#135)
3G2-14231-27-00
$13.49
12
JET,MAIN #122.5
3G2-1423A-75-A1
Unavailable
12
JET,MAIN #132.5
3G2-1423A-77-00
$13.49
12
. JET, MAIN (#1213)
8V0-1423E-48-00
Unavailable
12
. JET, MAIN (#1288)
8V0-1423E-51-00
Unavailable
13
CAP, PLUNGER
8G8-14174-00-00
Unavailable
14
SPRING, PLUNGER
127-14135-00-00
Unavailable
15
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
16
JET, PILOT (# 95)
193-14142-95-00
Unavailable
17
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
18
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
19
. SCREW, THROTTLE
8X0-14122-01-00
Unavailable
20
SPRING
8X0-14500-00-00
Unavailable
21
NUT
8X0-14358-00-00
Unavailable
