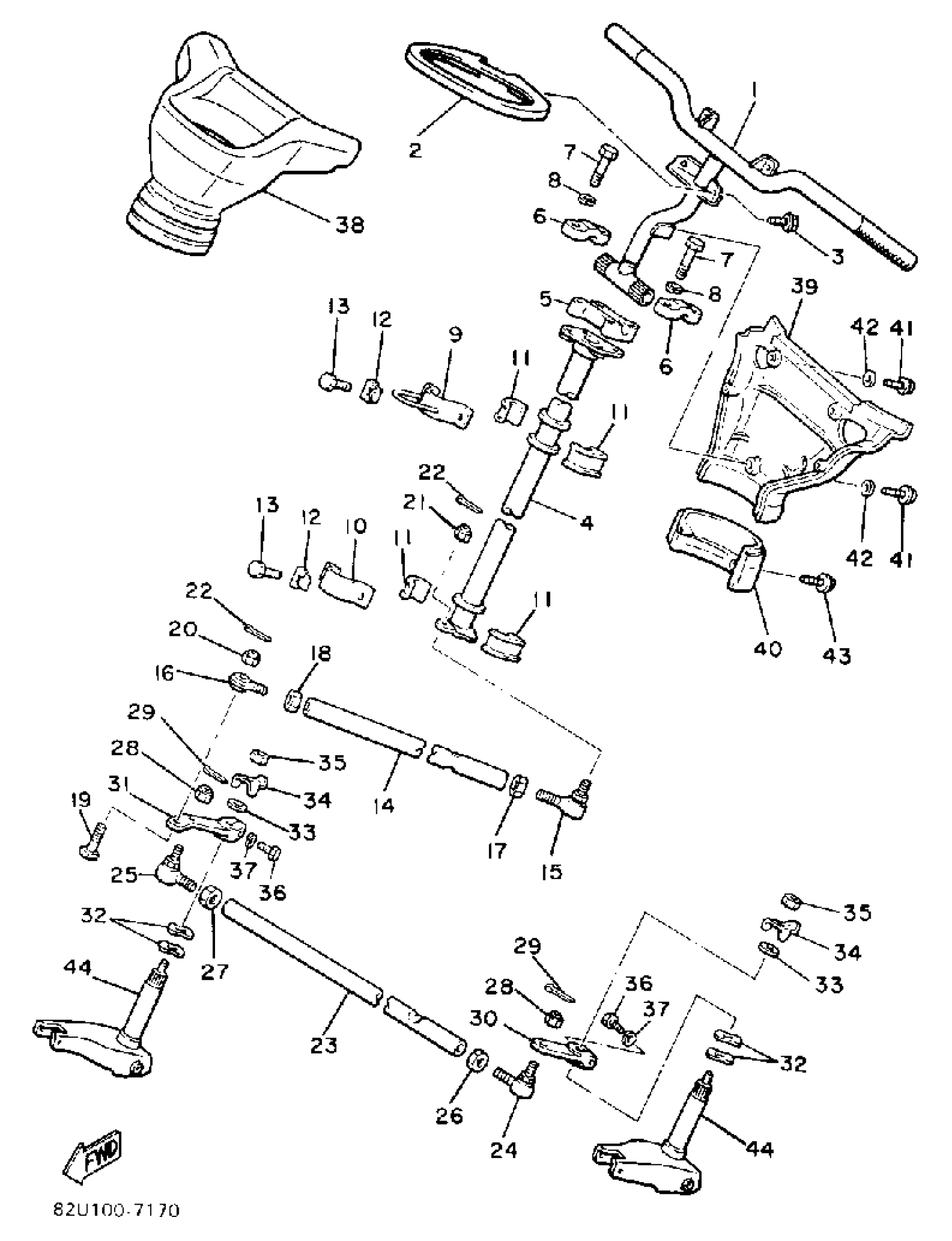

Yamaha ET340TL (ENTICER 340T (LONG TRACK)) 1987 STEERING Diagram
#
1
COLUMN,STEERING
80Y-23811-00-00
Unavailable
2
BRACKET 10
8V0-23878-00-00
Unavailable
3
BOLT, FLANGE
95812-06010-00
$2.98
4
COLUMN, STEERING 2
8W6-23813-00-00
Unavailable
5
HANDLE, HOLDER
164-23441-01-98
Unavailable
6
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
7
BOLT, HEXAGON
97017-08055-00
$9.49
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
HOLDER, BEARING
84M-23872-00-00
Unavailable
10
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
11
BEARING, STEERING
8F3-23812-00-00
Unavailable
12
WASHER, LOCK 1
8AC-23894-01-00
$4.78
13
BOLT, HEXAGON
97017-08016-00
$8.49
14
ROD,STEERING RELAY
87F-23821-00-00
Unavailable
15
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
16
JOINT, UNIVERSAL 3
87S-23847-01-00
Unavailable
17
NUT (682)
95380-10700-00
Unavailable
18
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
19
BOLT
90109-10482-00
Unavailable
20
NUT, NYLON
95707-10300-00
Unavailable
21
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
22
PIN, COTTER
91490-25020-00
Unavailable
23
ROD, TIE
8G8-23831-00-00
Unavailable
24
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
25
JOINT, UNIVERSAL 2
86X-23845-00-00
Unavailable
26
NUT (682)
95380-10700-00
Unavailable
27
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
28
NUT, NYLON
95707-10300-00
Unavailable
29
PIN, COTTER
91490-25020-00
Unavailable
30
ARM, OUTSIDE 1
8F3-23851-00-00
Unavailable
31
ARM, OUTSIDE 2
8F3-23852-00-00
Unavailable
32
WASHER, WAVE (878)
90206-20037-00
Unavailable
33
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
34
WASHER, LOCK
90215-10096-00
Unavailable
35
NUT(3BM)
95314-10600-00
Unavailable
36
BOLT, HEXAGON
97017-08025-00
Unavailable
37
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
38
PAD, STEERING
8L8-23815-01-00
Unavailable
39
. PAD, STEERING
8L8-23817-02-00
Unavailable
40
COVER, STEERING
8Y0-23818-00-00
Unavailable
41
SCREW, PAN HEAD W/WASHER
97607-05112-00
Unavailable
42
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
43
SCREW, PAN HEAD WITH WASHER
97607-04314-00
Unavailable
44
COLUMN, SKI 1
8F3-23853-00-00
Unavailable
