- ET340TL (ENTICER 340T (LONG TRACK)) 1987
PRIMARY SHEAVE

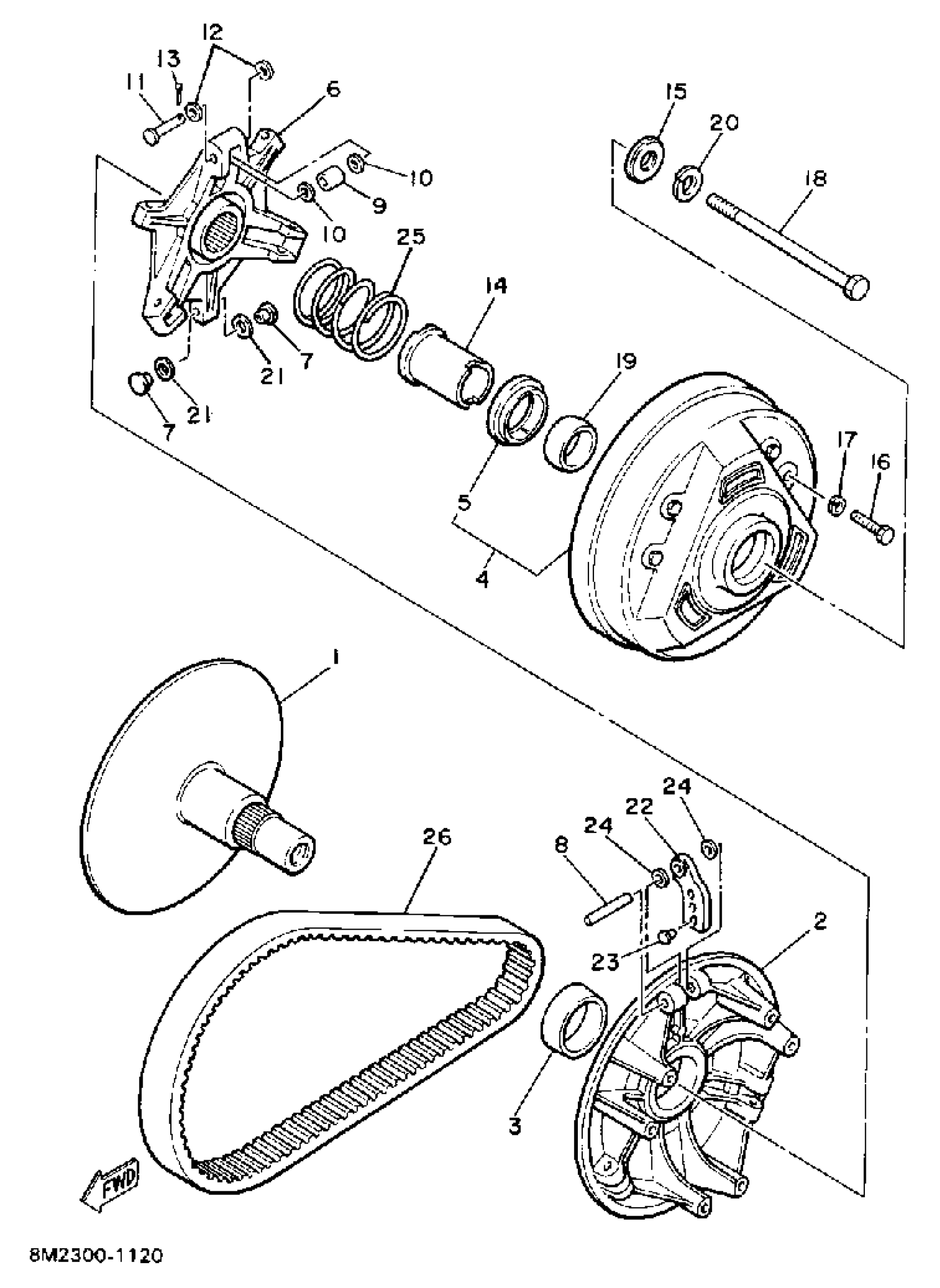

Yamaha ET340TL (ENTICER 340T (LONG TRACK)) 1987 PRIMARY SHEAVE Diagram
#
Description
Price
1
PRI. FIXED SHEAVE
8H8-W1761-00-00
Unavailable
2
SHEAVE, PRI SLIDING
8E7-17621-01-00
Unavailable
3
BUSH, SPEC''L SHAPE
90389-41018-00
Unavailable
4
PRI. SHEAVE CAP
8E7-W1762-00-00
Unavailable
5
SEAT, SPRING
8E7-17644-02-00
Unavailable
6
SPIDER
8A7-17627-00-00
Unavailable
7
SLIDER
8F2-17653-00-00
$13.49
8
PIN, DOWEL (8V8)
93607-44190-00
$16.99
9
COLLAR (8A7)
90387-06560-00
$7.49
10
WASHER (8J0)
90202-06113-00
$4.72
11
PIN, W/HOLE (8G6)
90240-06062-00
$10.49
12
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
13
PIN, COTTER
91490-25020-00
$3.19
14
COLLAR
90387-28721-00
Unavailable
15
SPACER 1
8J0-17654-00-00
Unavailable
16
BOLT(JF7)
97080-06030-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
BOLT
90101-13406-00
Unavailable
19
. BUSH, SPEC''L SHAPE
90389-34019-00
Unavailable
20
WASHER, SPRING
90204-13010-00
Unavailable
21
WASHER, PLATE (8K2)
90201-090A4-00
Unavailable
22
WEIGHT 1
8G8-17632-00-00
Unavailable
23
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
24
WASHER, PLATE(8E7)
90201-07641-00
Unavailable
25
SPRING, COMPRESSION
90501-50500-00
Unavailable
26
V-BELT
820-17641-01-00
Unavailable
26
CLUTCH TUNE UP KIT
(8G5-00000-50-00)
Unavailable
26
PRIMARY SHEAVE ASSEMBLY
8G6-17601-09-00
Unavailable
