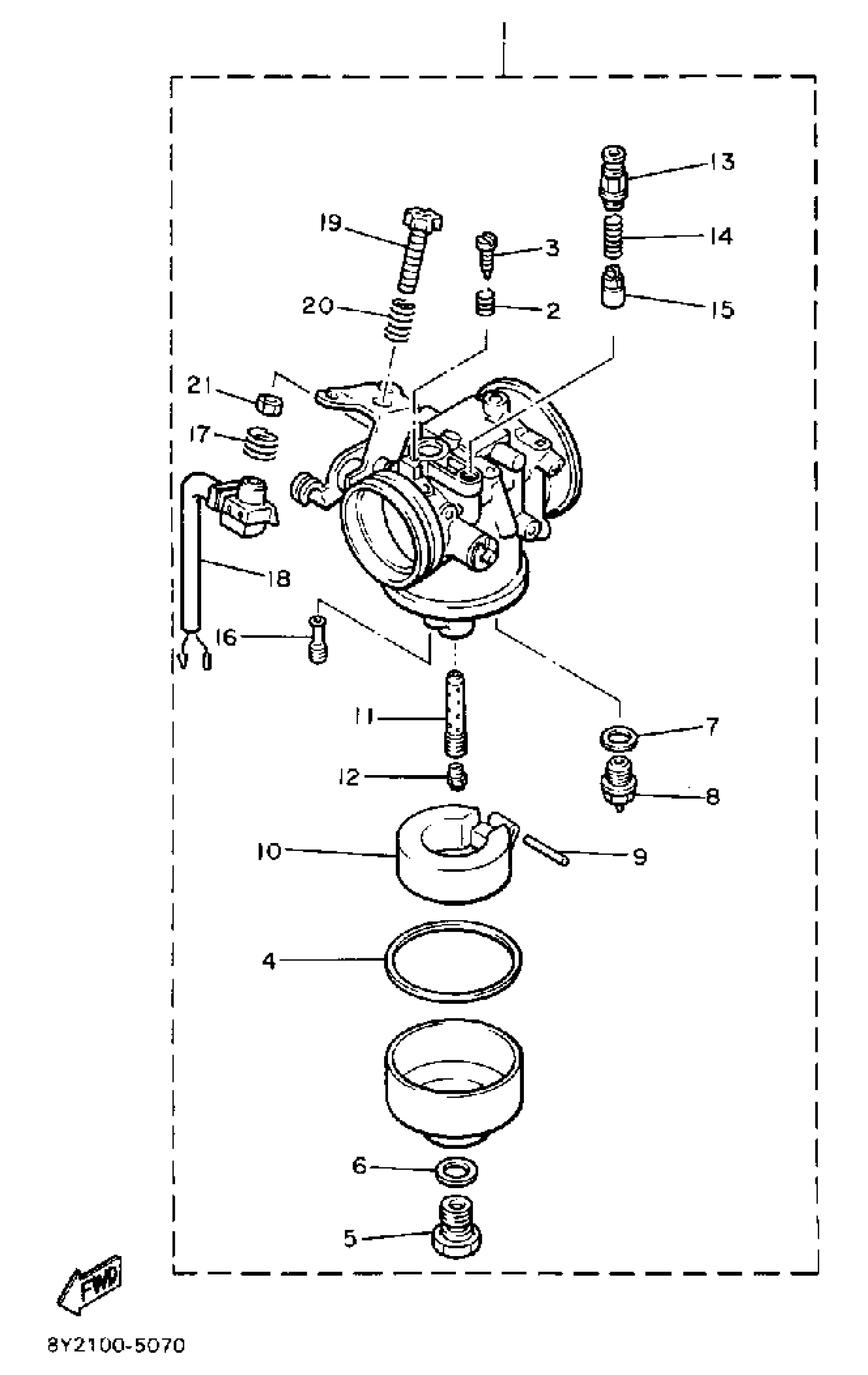

Yamaha ET340TL (ENTICER 340T (LONG TRACK)) 1987 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

80E-14101-02-00

Unavailable

2

SPRING, AIR ADJUSTING

82A-14134-00-00

$8.99

3

SCREW, PILOT ADJUSTING

7R5-14211-00-00

Unavailable

4

GASKET, FLOAT CHAMBER

8M6-14126-00-00

$18.99

5

HOLDER

8M6-14261-00-00

$46.99

6

GASKET

286-14198-00-00

$9.99

7

WASHER, VALVE SEAT

214-14195-00-00

$7.99

8

VALVE SEAT ASSY

168-14190-15-00

$42.99

9

PIN,FLOAT

8M6-14186-00-00

$9.49

10

FLOAT ASSY

8M6-14185-00-00

$91.99

11

. NOZZLE, MAIN

8Y2-14941-4A-00

Unavailable

12

JET, MAIN (#125)

3G2-14231-25-00

$13.49

12

JET, MAIN (#135)

3G2-14231-27-00

$13.49

12

JET,MAIN #122.5

3G2-1423A-75-A1

Unavailable

12

JET,MAIN #132.5

3G2-1423A-77-00

$13.49

12

. JET, MAIN (#1213)

8V0-1423E-48-00

Unavailable

12

. JET, MAIN (#1288)

8V0-1423E-51-00

Unavailable

13

CAP, PLUNGER

8G8-14174-00-00

Unavailable

14

SPRING, PLUNGER

127-14135-00-00

Unavailable

15

PLUNGER, STARTER

8G8-14171-00-00

Unavailable

16

JET, PILOT (# 95)

193-14142-95-00

Unavailable

17

SPRING, THROTTLE STOP

8X0-14133-00-00

Unavailable

18

SWITCH, CARBURETOR

87S-8259A-01-00

Unavailable

19

. SCREW, THROTTLE

8X0-14122-01-00

Unavailable

20

SPRING

8X0-14500-00-00

Unavailable

21

NUT

8X0-14358-00-00

Unavailable
