- ET340TJ (ENTICER 340T (LONG TRACK)) 1985
SHROUD - WINSHIELD ET340TK

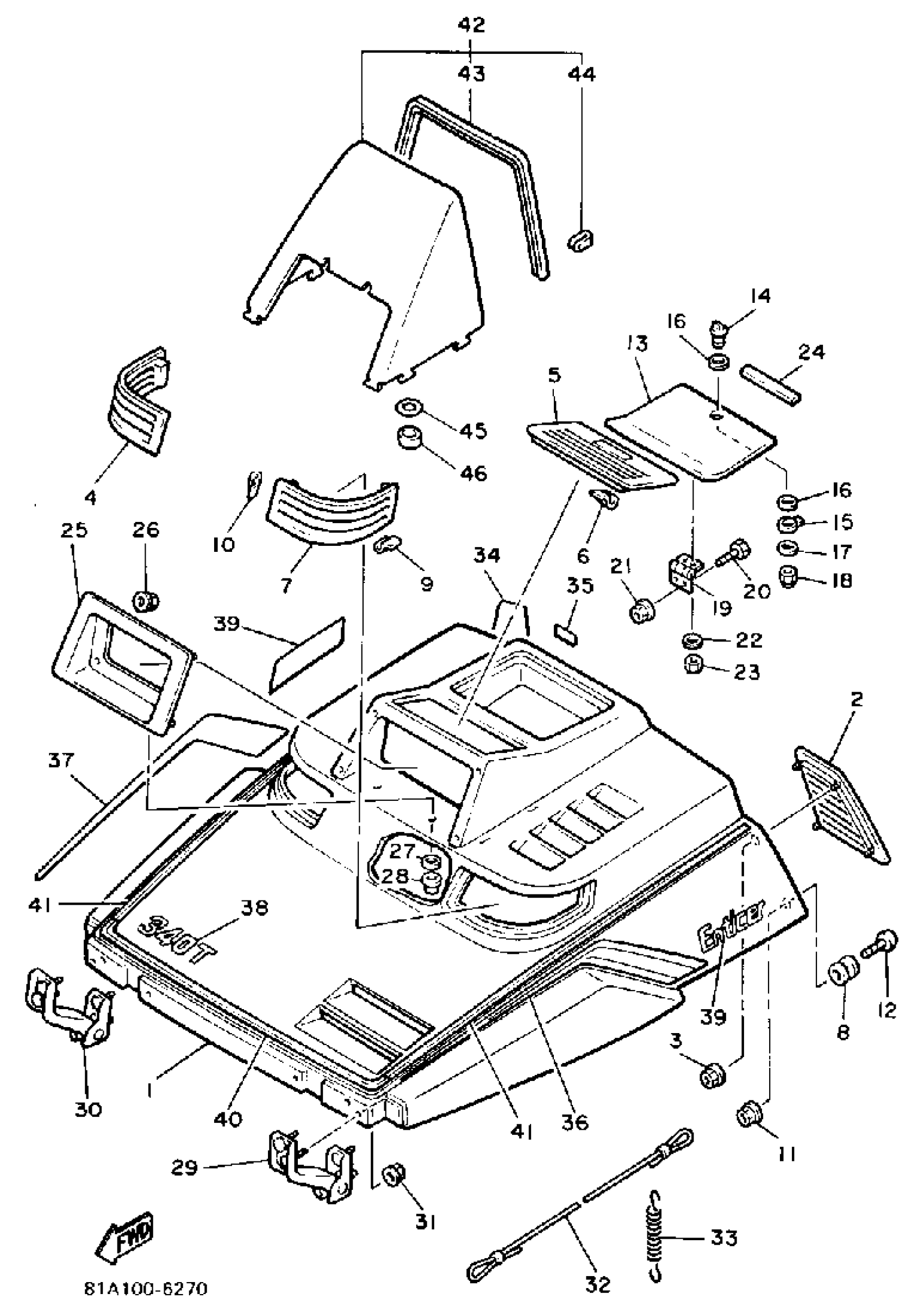

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 SHROUD - WINSHIELD ET340TK Diagram
#
1
SHROUD ASSY
8Y2-W7711-09-00
Unavailable
2
LOUVER 1
8W8-77131-00-00
Unavailable
3
NUT, FLANGE(3GM)
95707-05500-00
$8.49
4
LOUVER 3
81L-77133-00-00
Unavailable
5
LOUVER 4
8Y4-77134-00-00
Unavailable
6
CLIP
90468-05094-00
Unavailable
7
LOUVER 5
8Y4-77109-00-00
Unavailable
8
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
9
CLIP
90468-05137-00
Unavailable
10
CLIP
90468-05138-00
Unavailable
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, BINDING
98907-06030-00
$8.49
13
COVER, LUGGAGE BOX
8Y4-77392-00-00
Unavailable
14
KNOB
8L9-77324-00-00
Unavailable
15
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
16
WASHER, PLAIN(735)
90201-10119-00
Unavailable
17
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
18
NUT, NYLON
95707-05300-00
Unavailable
19
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
20
BOLT
97006-05014-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
$8.49
22
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
23
NUT, CAP
95307-05800-00
Unavailable
24
DAMPER 2
8W6-77374-00-00
Unavailable
25
BODY, HEADLIGHT
8Y2-84311-00-00
Unavailable
26
NUT, FLANGE(3GM)
95707-05500-00
$8.49
27
WASHER, PLATE
90201-04027-00
Unavailable
28
NUT, SPRING (1L9)
90183-04012-00
Unavailable
29
HINGE ASSEMBLY
8W6-77140-00-00
Unavailable
30
HINGE ASSEMBLY 2
8W6-7714A-00-00
Unavailable
31
NUT, FLANGE(7NB)
95780-06500-00
$2.60
32
STOPPER,SHROUD
89X-77118-00-00
Unavailable
33
CLAMP, ROD
80X-77159-00-00
Unavailable
34
LABEL, WARNING
80E-77458-00-00
Unavailable
35
INDICATOR 3
8X0-77743-01-00
Unavailable
36
ORNAMENT 1
81A-77163-00-00
Unavailable
37
ORNAMENT 2
81A-77164-00-00
Unavailable
38
EMBLEM 1
81A-77351-00-00
Unavailable
39
EMBLEM 2
81A-77352-00-00
Unavailable
40
STRIPE 1
81A-77281-00-00
Unavailable
41
STRIPE 2
81A-77282-00-00
Unavailable
42
WINDSHIELD,ET340
8X1-77210-10-XX
Unavailable
43
TRIM,UPPER
87K-77213-00-00
Unavailable
44
. FASTENER
80V-77223-00-00
Unavailable
45
FASTNER
82H-77223-00-00
Unavailable
46
FASTNER
82H-77223-00-00
Unavailable
