Description

Price

1

STATOR ASSEMBLY

8W6-85510-20-00

Unavailable

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

Unavailable

3

. COIL, LIGHTING 1

8G8-85513-20-00

Unavailable

4

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

Unavailable

5

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

6

. LEAD WIRE ASSEMBLY (8V0-85515-20)

8W0-85515-20-00

Unavailable

7

CLAMP, READ

445-81328-20-00

Unavailable

8

SCREW, PAN

98507-05035-00

$8.49

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD

98507-04018-00

$2.19

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

SCREW, PAN

98507-05040-00

$8.49

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

. SPACER

8T0-85519-20-00

Unavailable

17

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

Unavailable

18

SCREW, BIND (705)

98980-06016-00

Unavailable

19

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

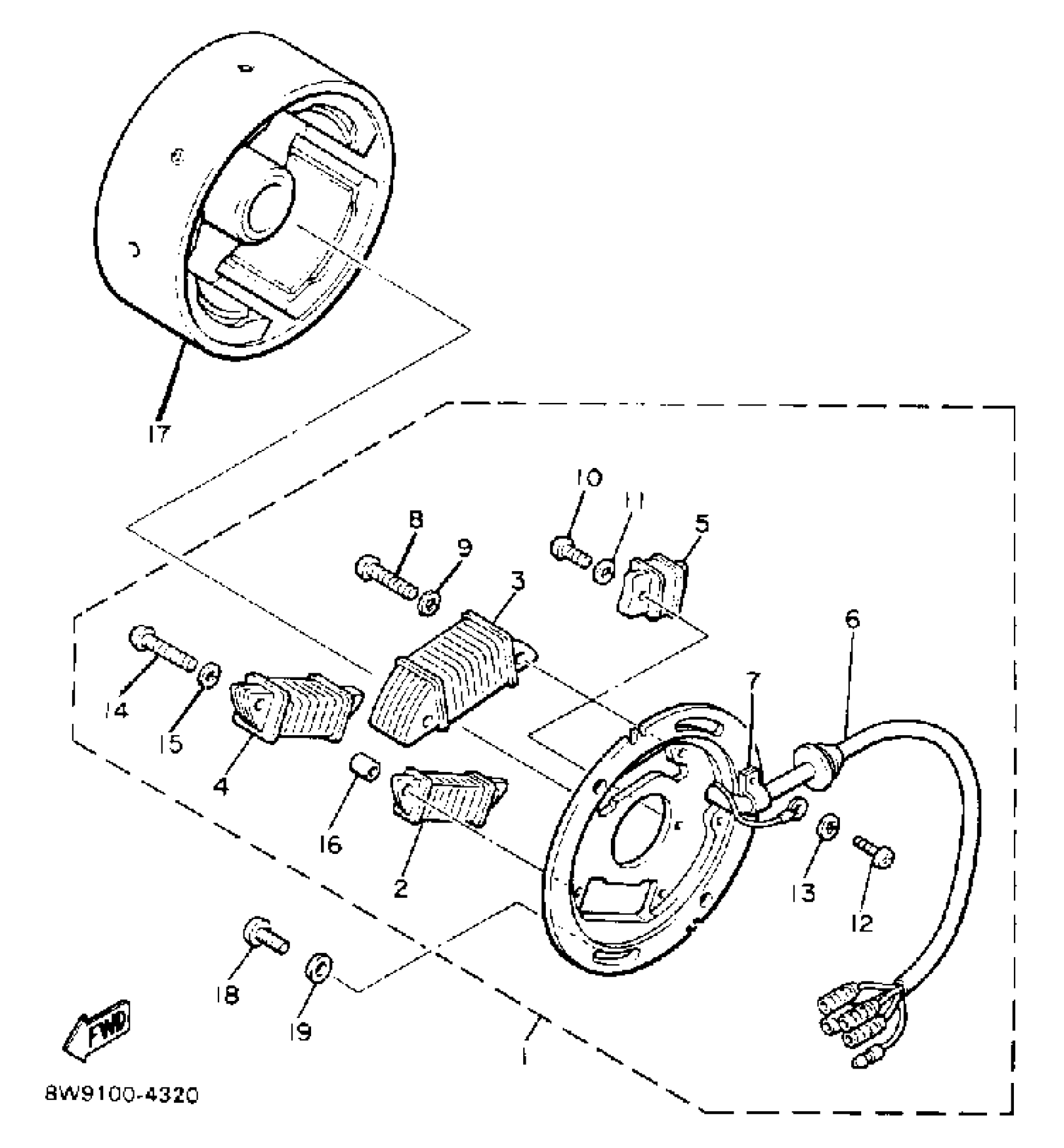

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 GENERATOR Diagram

STATOR ASSEMBLY

. COIL, SOURCE (8T0-85511-20)

. COIL, LIGHTING 1

. COIL, LIGHTING 2 (8V0-85514-20)

. COIL, PULSER (8N5-85580-20)

. LEAD WIRE ASSEMBLY (8V0-85515-20)

CLAMP, READ

SCREW, PAN

YBS67-5 WASHER, SPRING

SCREW, PAN HEAD

WASHER, PLAIN (646)

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

SCREW, PAN

YBS67-5 WASHER, SPRING

. SPACER

. ROTOR ASSEMBLY (8K1-85550-20)

SCREW, BIND (705)

WASHER, PLATE 6261117600
