Description

Price

1

FRAME

8X0-21910-00-00

Unavailable

2

. HOOD 1

8X0-21982-00-00

Unavailable

3

. HOOD 2

8X0-21983-00-00

Unavailable

4

RIVET, BLIND (8H4)

90267-48053-00

$3.61

5

RIVET, BLIND (8J5)

90267-48057-00

$8.49

6

. TRIM 1

8W6-2196T-00-00

Unavailable

7

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

8

RIVET,BLIND

90267-40080-00

Unavailable

9

BODY, LATCH 1

8M6-77171-00-00

Unavailable

10

COLLAR (420)

90387-06241-00

$8.49

11

WASHER, PLATE 8221447500

90201-06057-00

$5.60

12

SCREW, BINDING

98907-06025-00

$8.49

13

COVER 2

8Y2-2198G-00-00

Unavailable

14

SHIELD, NOISE

8Y2-2199F-00-00

Unavailable

15

EMBLEM 4

(81A-77354-00-00)

Unavailable

16

EMBLEM 5

(81A-77355-00-00)

Unavailable

17

COVER,1

85T-2198F-00-00

Unavailable

18

SCREW, BINDING

98907-06012-00

Unavailable

19

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

20

ORNAMENT 3

81A-77169-00-00

Unavailable

21

ORNAMENT 4

81A-77113-00-00

Unavailable

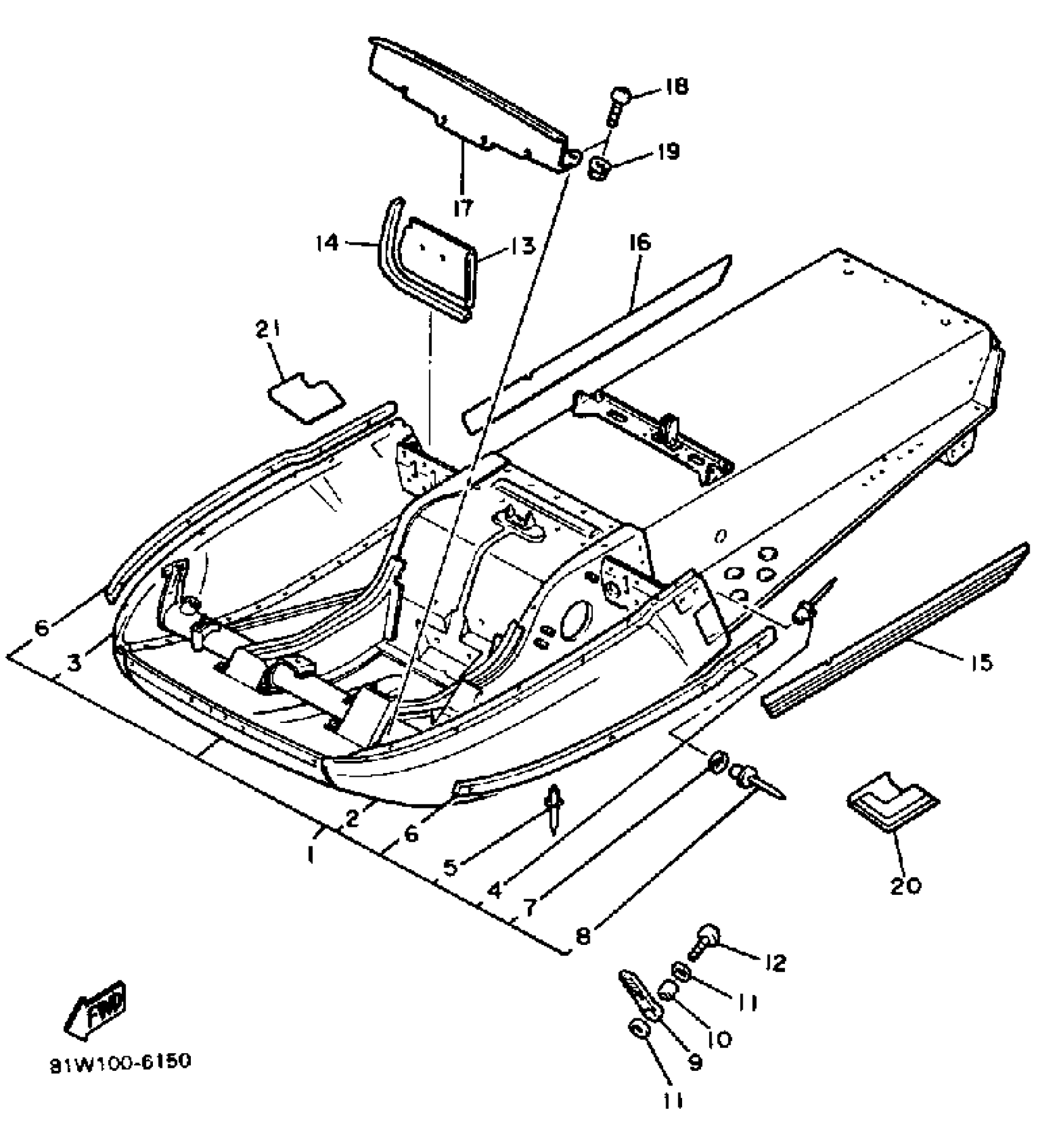

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 FRAME ET340TK Diagram

FRAME

. HOOD 1

. HOOD 2

RIVET, BLIND (8H4)

RIVET, BLIND (8J5)

. TRIM 1

WASHER, PLATE (8M6)

RIVET,BLIND

BODY, LATCH 1

COLLAR (420)

WASHER, PLATE 8221447500

SCREW, BINDING

COVER 2

SHIELD, NOISE

EMBLEM 4

EMBLEM 5

COVER,1

SCREW, BINDING

NUT, FLANGE(7NB)

ORNAMENT 3

ORNAMENT 4
