Description

Price

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

$117.99

2

. UNAVAILABLE IN PRICE BOOK

8H8-83512-00-00

Unavailable

3

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

4

SCREW, PAN

98507-05040-00

$8.49

5

NUT, NYLON

95707-05300-00

$4.24

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

Unavailable

7

COLLAR, LEVER

802-83913-00-00

Unavailable

8

. SCREW, TAPPING

97780-30312-00

Unavailable

9

. WASHER, PLAIN

92990-05200-00

Unavailable

10

BEAM SWITCH ASSY

8H8-83950-01-00

$79.99

11

STOP SWITCH ASSY

88R-82530-00-00

$31.99

12

LEVER HOLDER ASSEMBLY (RIGHT)

84R-82720-00-00

Unavailable

13

LEVER, THROTTLE

8V0-42138-00-00

$64.99

14

EMERGENCY SAFETYSW

82K-82575-09-00

Unavailable

15

REFLECTOR ASSEMBLY

81E-85110-00-00

Unavailable

16

BASE, REFLECTOR

80E-85115-00-00

Unavailable

17

WASHER, PLAIN (646)

92990-05600-00

Unavailable

18

NUT, NYLON

95707-05300-00

$4.24

19

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

20

NUT, NYLON

95707-05300-00

$4.24

21

88T GRIP BLACK 1 PC

88T-26240-85-BK

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

WIRE, SUB-LEAD

8Y2-82318-00-00

Unavailable

24

SWITCH

82J-82917-00-00

Unavailable

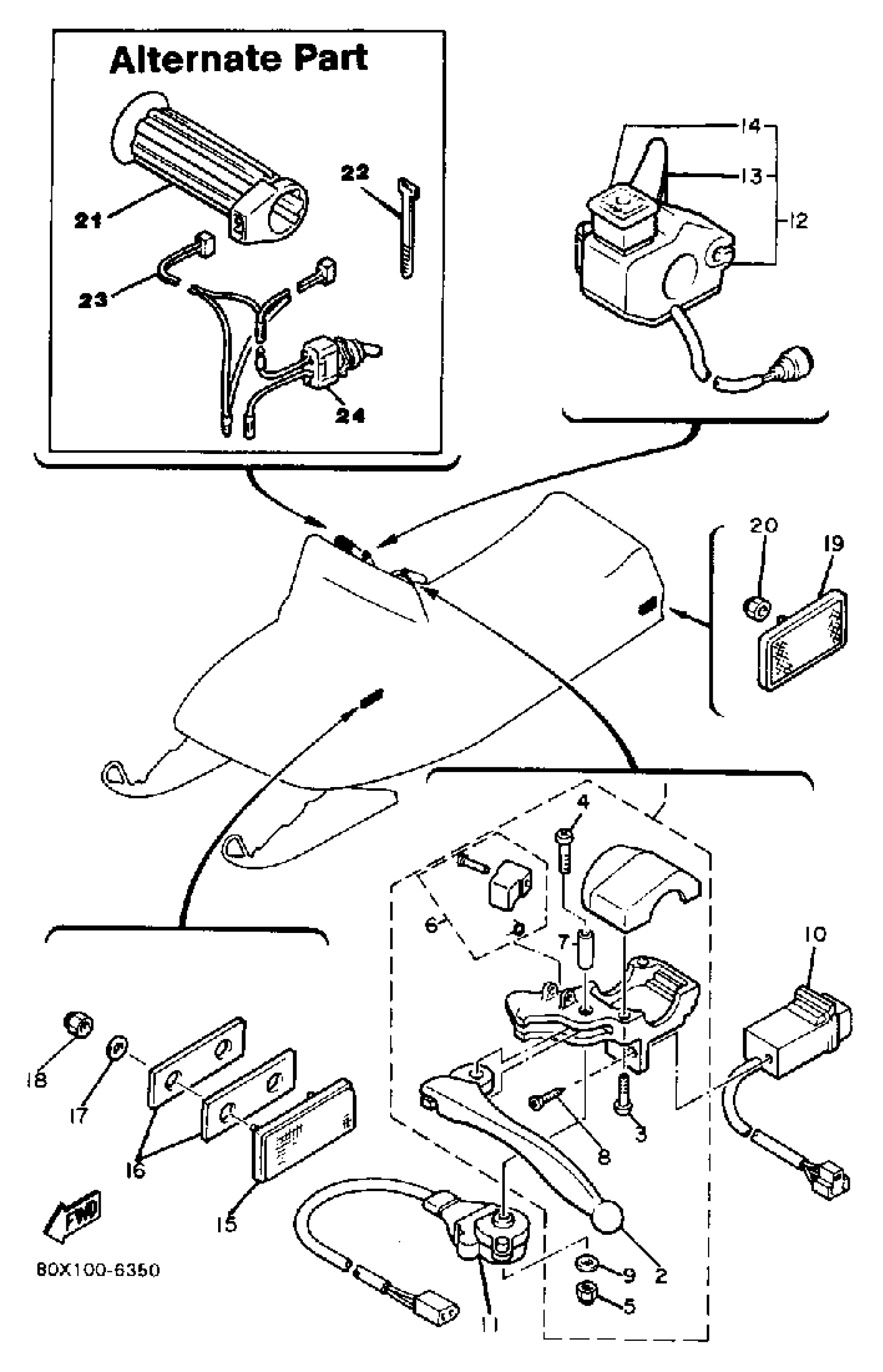

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 ELECTRICAL 2 Diagram

LEVER HOLDER ASSY (LEFT)

. UNAVAILABLE IN PRICE BOOK

SCREW, PAN HEAD(41N)

SCREW, PAN

NUT, NYLON

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

COLLAR, LEVER

. SCREW, TAPPING

. WASHER, PLAIN

BEAM SWITCH ASSY

STOP SWITCH ASSY

LEVER HOLDER ASSEMBLY (RIGHT)

LEVER, THROTTLE

EMERGENCY SAFETYSW

REFLECTOR ASSEMBLY

BASE, REFLECTOR

WASHER, PLAIN (646)

NUT, NYLON

REAR REFLECTOR ASSY

NUT, NYLON

88T GRIP BLACK 1 PC

BAND, SWITCH CORD

WIRE, SUB-LEAD

SWITCH
