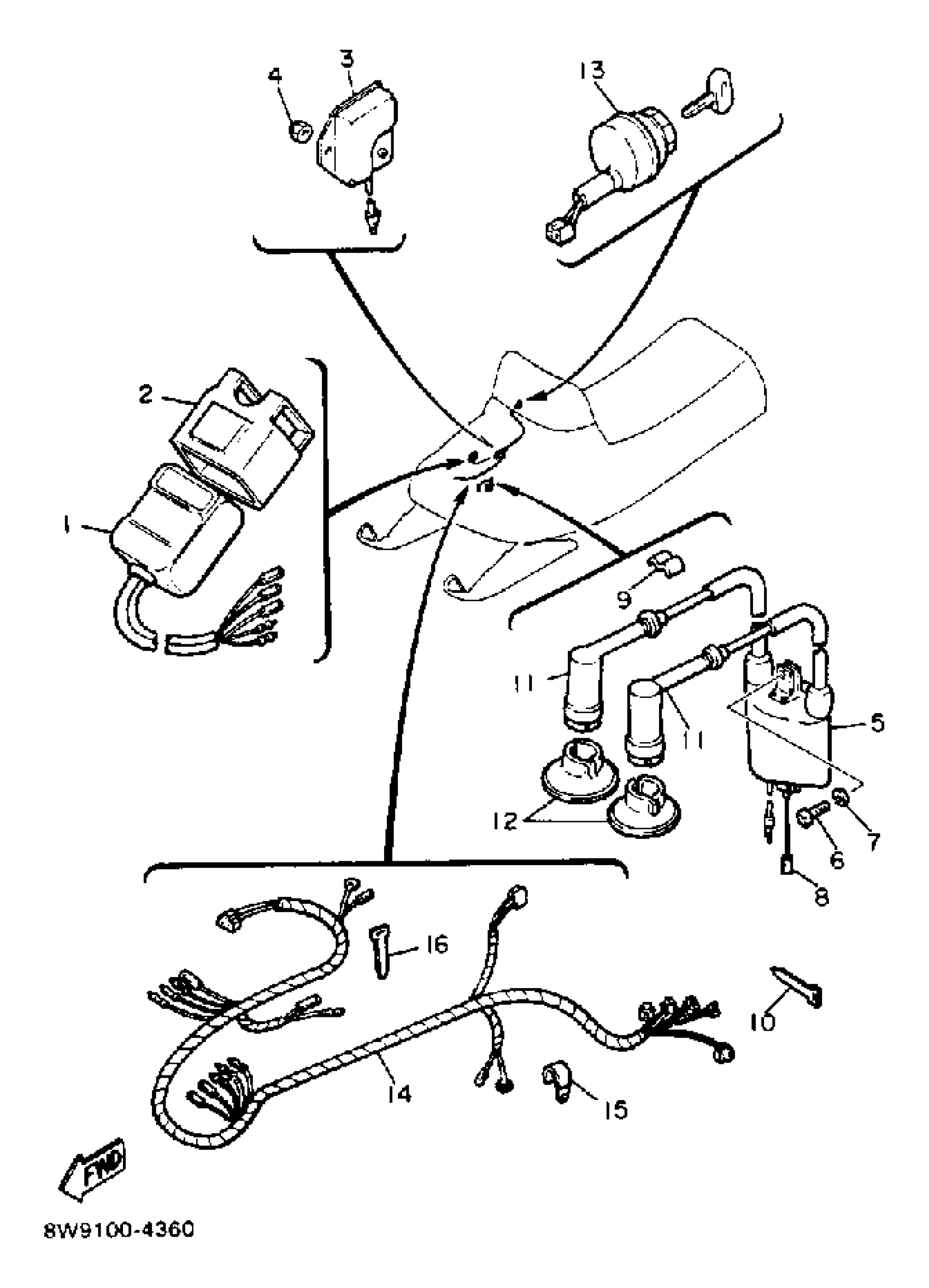

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

BAND

2A7-85546-00-00

Unavailable

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

NUT, NYLON

95707-06300-00

$3.50

IGNITION COIL ASSEMBLY

8W3-82310-T0-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

GROMMET 1

8W6-82355-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

$7.99

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

SEAL, PLUG CAP

8G8-82372-00-00

Unavailable

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

WIRE HARNESS ASSEMBLY (TK)

81A-82590-20-00

Unavailable

WIRE HARNESS ASSEMBLY (TJ)

8Y2-82590-20-00

Unavailable

CLAMP

90465-08028-00

Unavailable

BAND

341-26397-01-00

Unavailable
