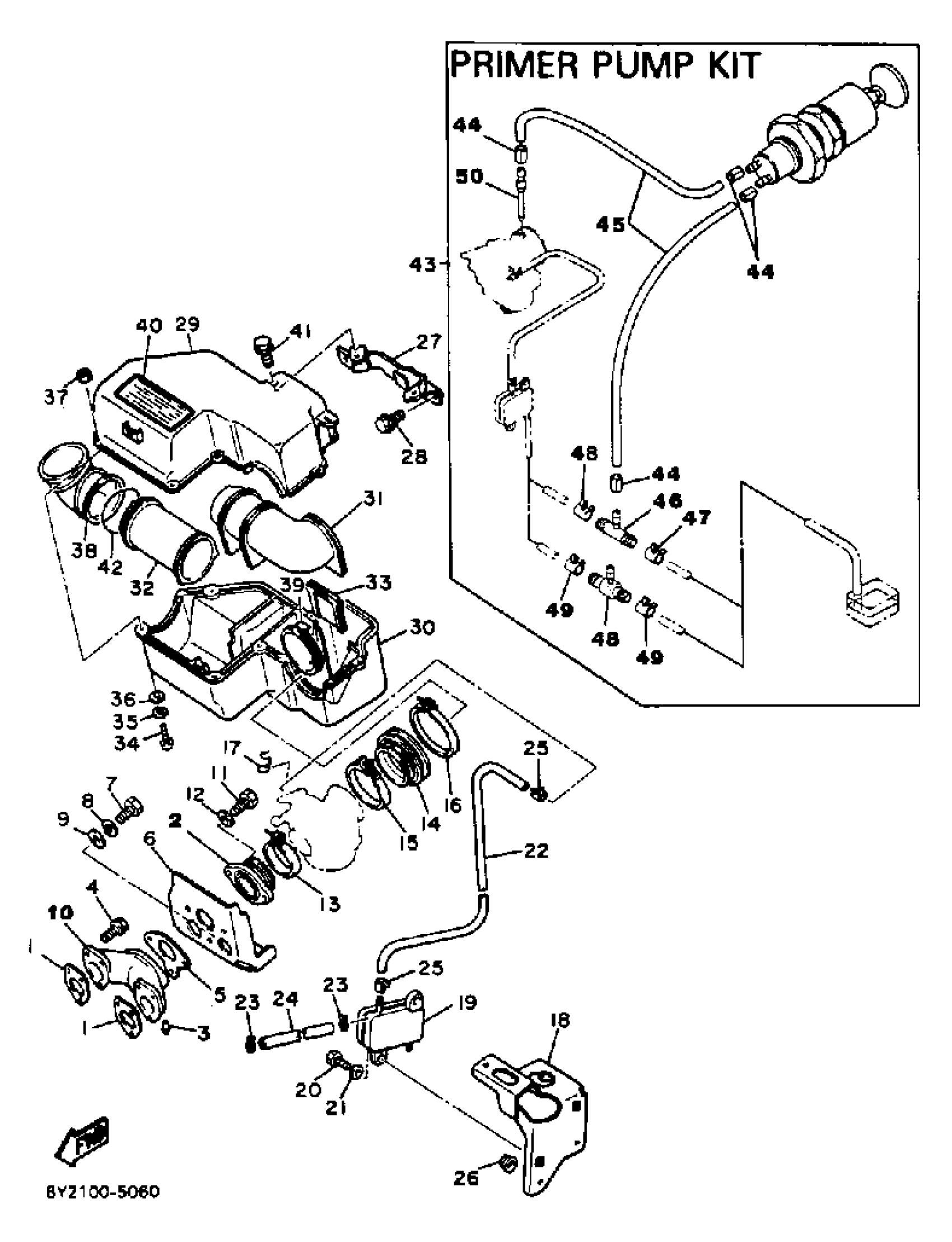

Yamaha ET340TJ (ENTICER 340T (LONG TRACK)) 1985 AIR CLEANER Diagram
#
1
GASKET
8Y2-13563-02-00
$9.49
2
JOINT, CARBURETOR
8G8-13565-00-00
Unavailable
3
NOZZLE
824-13552-00-00
Unavailable
4
BOLT, FLANGE
95817-06020-00
$3.81
5
GASKET, MANIFOLD
8Y2-13556-01-00
Unavailable
6
GASKET
8H5-13567-00-00
Unavailable
7
BOLT, HEXAGON
97017-08016-00
$8.49
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
WASHER, PLATE
90209-08150-00
Unavailable
10
MANIFOLD
8G8-13555-01-00
$114.99
11
BOLT, HEXAGON
97017-08025-00
$10.49
12
.. WASHER, PLATE
92990-08600-00
Unavailable
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
BAND
86M-13575-00-00
$19.49
14
JOINT, AIR CLEANER
8G8-14453-01-00
$31.99
15
CLAMP, HOSE (29L)
90460-68230-00
Unavailable
16
CLAMP, HOSE(59V)
90460-85277-00
Unavailable
17
CLAMP
90465-10033-00
Unavailable
18
BRACKET, FUEL PUMP
8G8-24491-00-00
Unavailable
19
FUEL PUMP ASY
8J6-24410-01-00
Unavailable
20
BOLT, HEXAGON
97013-06018-00
Unavailable
21
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
Unavailable
22
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
22
TUBE, FLEXIBLE VINYL(8AK)
91A30-05039-00
Unavailable
23
CLIP
90467-090A2-00
Unavailable
24
HOSE (L450)
90445-10144-00
Unavailable
25
CLIP (8A1)
90467-09026-00
Unavailable
26
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
27
STAY 1
8G8-14498-00-00
Unavailable
28
BOLT, FLANGE
95812-06010-00
Unavailable
29
SILENCER, INTAKE 1
8G8-14431-00-00
Unavailable
30
SILENCER 2
8G8-14441-00-00
Unavailable
31
PIPE
8G8-14419-00-00
Unavailable
32
PIPE
8G8-14465-00-00
Unavailable
33
PLATE
8G8-14477-00-00
Unavailable
34
SCREW, PAN HEAD
98580-05020-00
Unavailable
35
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
36
WASHER, PLAIN (646)
92990-05600-00
Unavailable
37
NUT, HEXAGON (663)
95380-05600-00
Unavailable
38
PIPE, SUCTION 1
8N5-14423-00-00
Unavailable
39
PIPE
8G8-14466-01-00
Unavailable
40
LABEL, CAUTION
8A5-14488-00-00
Unavailable
41
BOLT, FLANGE
95817-06014-00
Unavailable
42
SPRING TENSION 808144550000
90506-06083-00
Unavailable
43
PRIMER PUMP KIT
8U0-W2431-00-00
Unavailable
44
CLIP (2A6)
90468-02025-00
Unavailable
45
TUBE, FLEXIBLE VINYL(8AE)
91A20-03130-00
Unavailable
46
PIPE, JOINT
815-24379-00-00
Unavailable
47
CLIP
90467-11028-00
Unavailable
48
WAY 3 (8U0)
90413-05011-00
Unavailable
49
CLIP (8A1)
90467-09026-00
Unavailable
50
. NOZZLE
8U0-13552-00-00
Unavailable
