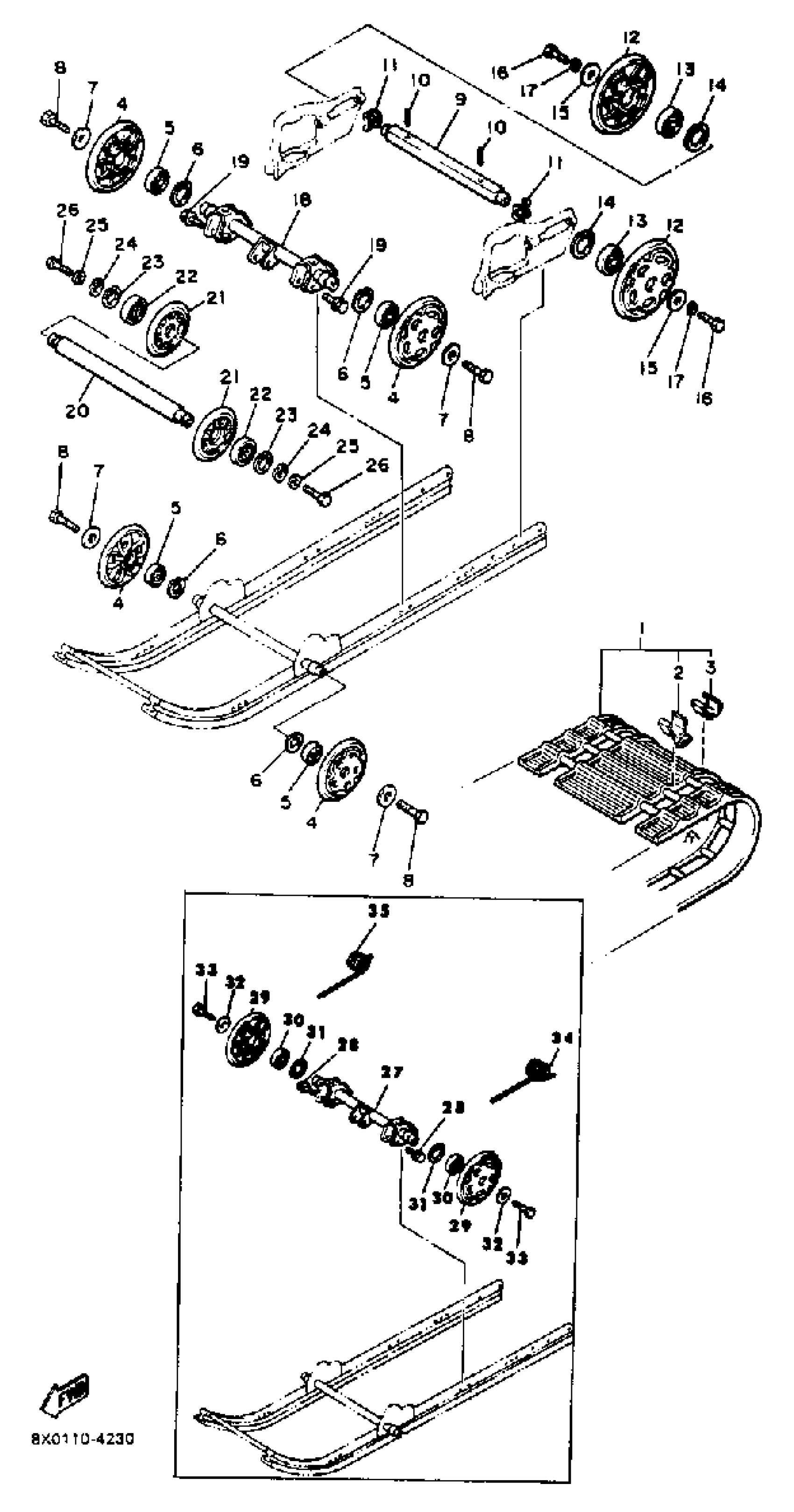

Yamaha ET340TH (ENTICER 340T (LONG TRACK)) 1984 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

BOLT (8K2)

90109-08559-00

$8.49

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

WASHER (8G1)

90201-08681-00

$7.49

8

BOLT (8K2)

90109-08559-00

$8.49

9

AXLE, REAR

8E3-47521-00-00

Unavailable

10

PIN, SPRING (663)

91690-40040-00

Unavailable

11

WASHER

8E3-47384-00-00

Unavailable

12

WHEEL GUIDE COMP.

8L4-47530-00-00

$171.99

13

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

14

CIRCLIP(48Y)

99009-47500-00

$9.49

15

WASHER, PLATE (8M2)

90201-083A8-00

Unavailable

16

BOLT, HEXAGON

97013-08020-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BAR, SUSPENSION

8V5-47451-00-00

Unavailable

19

BOLT, WITH WASHER

90119-08008-00

Unavailable

20

IDLER

8L1-47461-00-00

Unavailable

21

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

22

BEARING(8AB)

93306-00444-00

$41.99

23

CIRCLIP(5U8)

99009-42500-00

$8.49

24

CIRCLIP(1AR)

99009-20400-00

Unavailable

25

WASHER (688)

92990-08400-00

Unavailable

26

BOLT(JA9)

90101-08691-00

Unavailable

27

BAR, SUSPENSION

8T9-47451-00-00

Unavailable

28

BOLT(21W)

97017-06035-00

Unavailable

29

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

30

BEARING(8AB)

93306-00444-00

$41.99

31

CIRCLIP(5U8)

99009-42500-00

$8.49

32

WASHER (8G1)

90201-08681-00

$7.49

34

SPRING, TORSION

90508-99649-00

Unavailable

35

SPRING, TORSION

90508-99650-00

Unavailable
