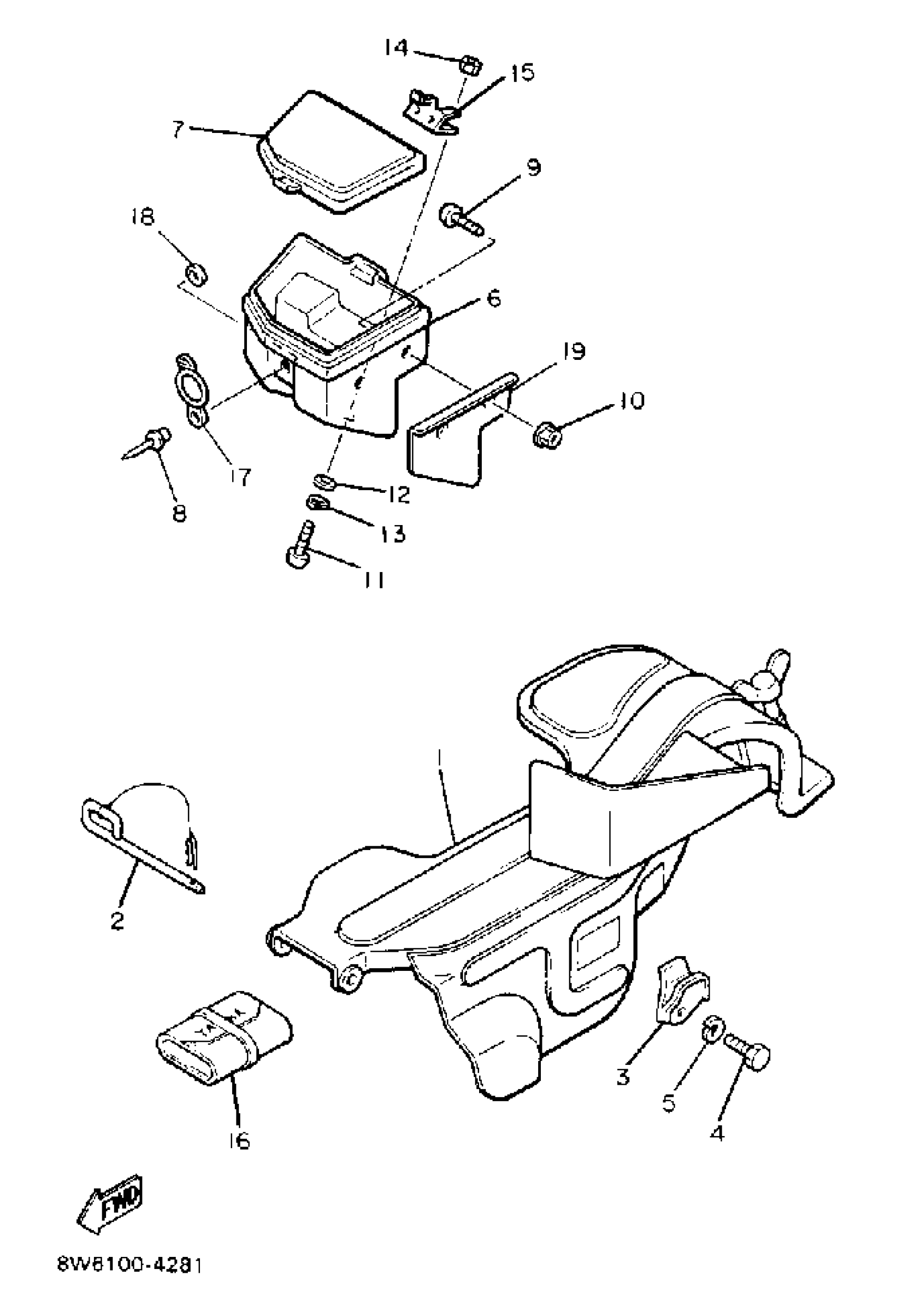

Yamaha ET340TH (ENTICER 340T (LONG TRACK)) 1984 GUARD - LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8W6-77311-00-00

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PROTECTOR, DRIVE

8F3-77323-00-00

Unavailable

4

BOLT, HEXAGON

97017-08016-00

$8.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

BOX, TOOL

8W6-77381-00-00

Unavailable

7

LID, TOOL BOX

8W6-77382-00-00

Unavailable

8

RIVET, BLIND (8R6)

90267-48086-00

$4.14

9

SCREW, BINDING

98907-05010-00

$8.49

10

NUT, FLANGE(3GM)

95707-05500-00

$8.49

11

SCREW, BINDING

98907-06014-00

$7.99

12

WASHER, PLATE

90201-06380-00

$0.60

13

WASHER, SPRING

92907-06100-00

$4.25

14

NUT(4MY)

95307-06800-00

$3.82

15

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

Unavailable

16

TOOL KIT

85L-28100-01-00

Unavailable

17

HOOK 1

8K4-77386-00-00

Unavailable

18

WASHER, PLATE

90201-04027-00

Unavailable

19

LABEL, WARNING 2

8BD-77762-00-00

Unavailable
