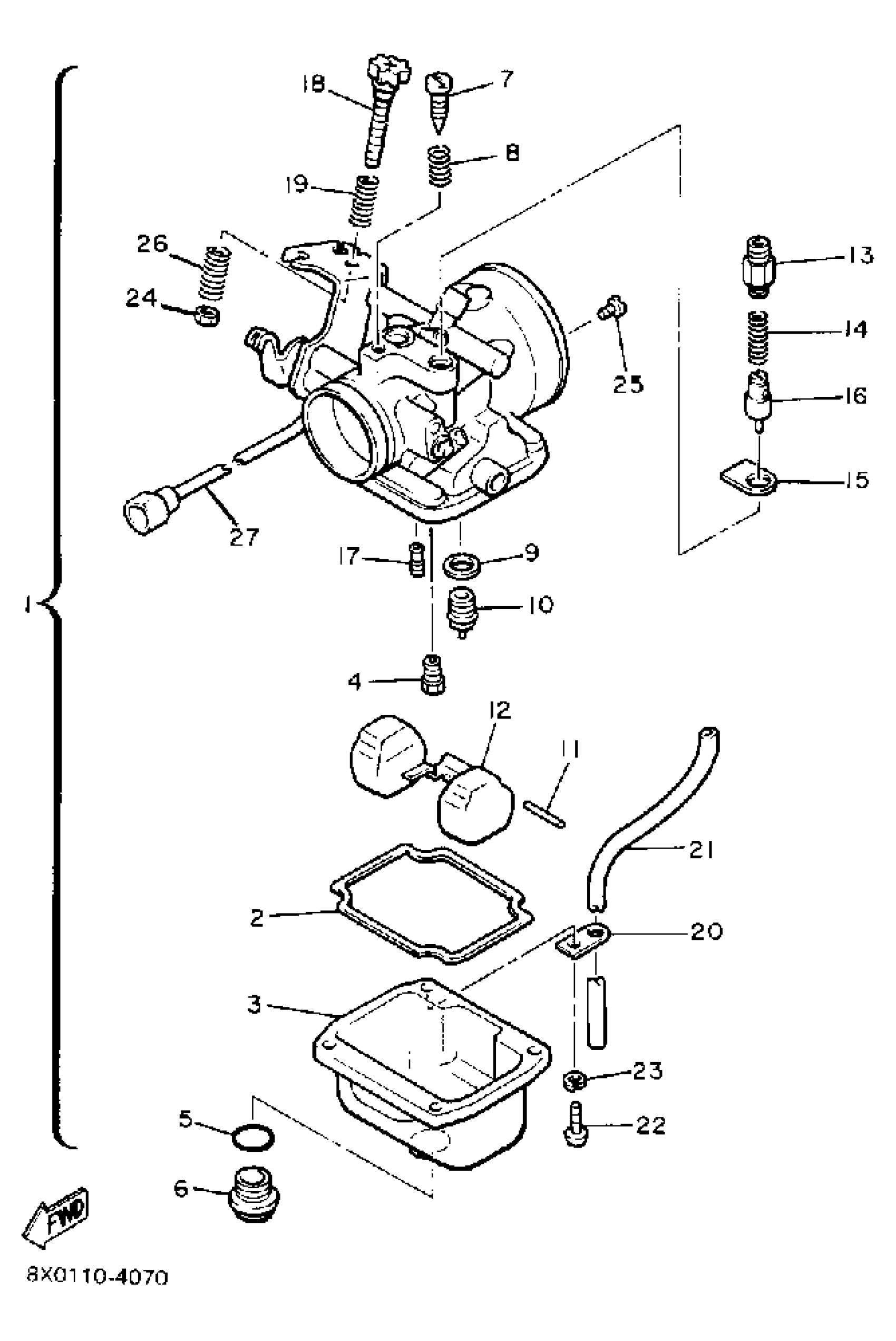

Yamaha ET340TH (ENTICER 340T (LONG TRACK)) 1984 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8X0-14101-00-00
Unavailable
2
. GASKET, FLOAT CHMBR
8G8-14184-00-00
Unavailable
3
BODY, FLOAT CHMBR 1
(8H5-14181-00-00)
Unavailable
4
JET, MAIN #200
137-14143-40-A1
$13.49
4
JET, MAIN #210
137-14143-42-A1
Unavailable
4
JET, MAIN #220
137-14143-44-A1
$11.99
4
JET, MAIN #240
137-14143-48-A1
$13.49
5
O-RING (541)
558-14147-00-00
$9.99
6
PLUG, SCREW
500-14115-00-00
$29.99
7
. SCREW, AIR ADJUSTING
8G8-14123-00-00
Unavailable
8
. SPRING, AIR ADJUSTING
137-14134-00-00
Unavailable
9
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
10
VALVE SEAT ASSY
8H5-14190-15-00
$68.99
11
PIN, FLOAT
537-14186-00-00
$7.99
12
. FLOAT
8H5-14185-00-00
Unavailable
13
. CAP, PLUNGER
8J6-14174-00-00
Unavailable
14
SPRING, PLUNGER
127-14135-00-00
Unavailable
15
. PLATE, STARTER LVR
8G8-14178-00-00
Unavailable
16
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
17
. JET, PILOT (#75)
193-14142-75-00
Unavailable
18
. SCREW, THROTTLE
8X0-14122-01-00
Unavailable
19
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
20
. PLATE
313-14146-00-00
Unavailable
21
HOSE
89A-14987-00-00
Unavailable
22
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
23
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
24
NUT
8X0-14358-00-00
Unavailable
25
JET, AIR (#1.0)
239-14172-10-00
Unavailable
26
. SPRING
8X0-14275-00-00
Unavailable
27
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
