TRACK SUSPENSION 2 ET340TF - TG

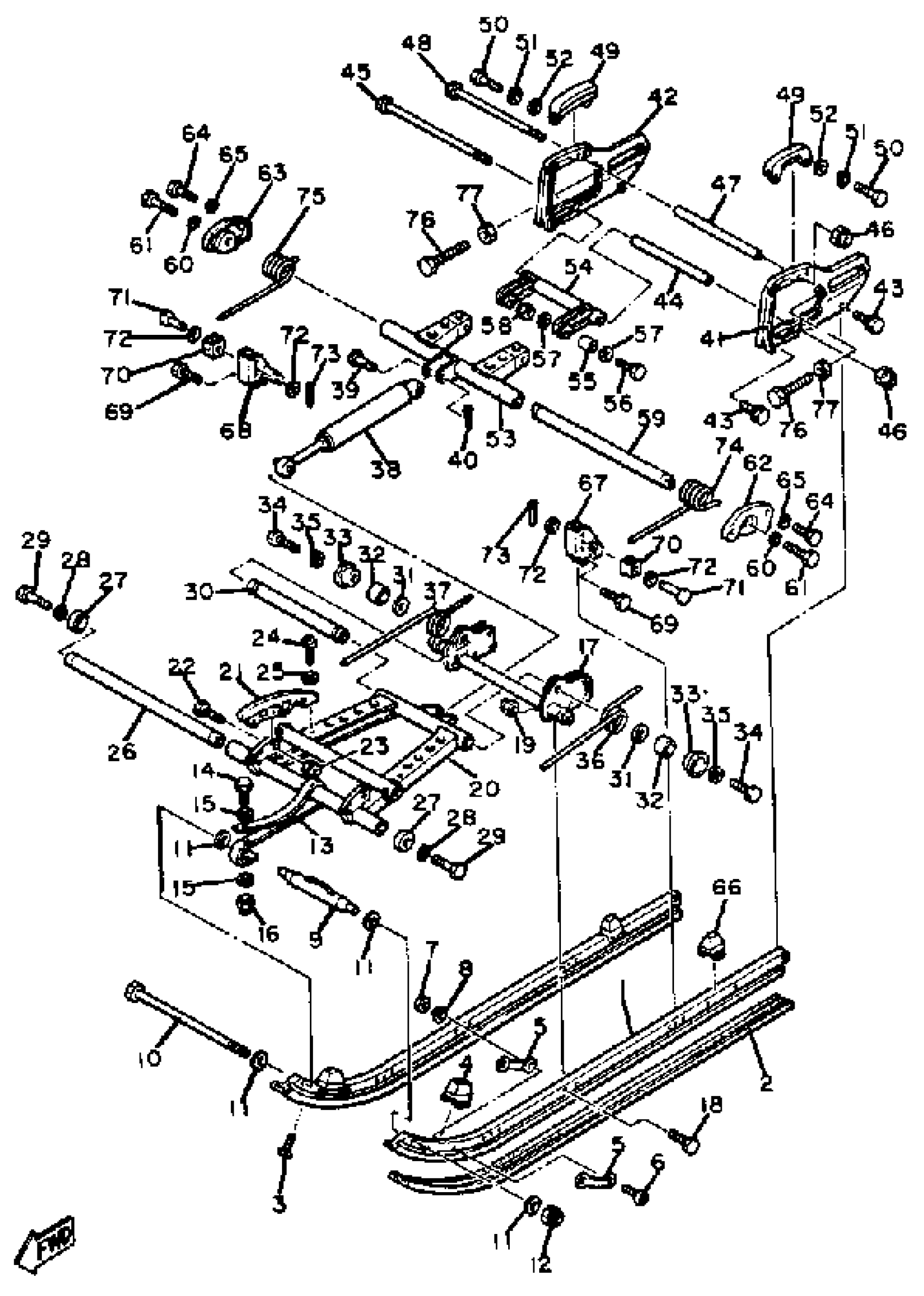

Yamaha ET340TF 1982 TRACK SUSPENSION 2 ET340TF - TG Diagram
#
1
FRAME, SLIDING 1
8L1-47411-00-00
Unavailable
2
RUNNER, SLIDING 1
8R3-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
3
SCREW, FLAT
98707-06020-00
$8.49
4
DAMPER 1
888-47456-01-00
$9.99
5
PLATE, DAMPER
885-47458-01-00
Unavailable
6
SCREW, PAN HEAD
98517-05030-00
$10.49
7
NUT, HEXAGON (663)
95380-05600-00
$8.49
8
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
9
BRACKET 1
899-47415-00-00
Unavailable
10
BOLT (8M8)
90101-08374-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
NUT, NYLON
95717-08300-00
$2.70
13
STOPPER 1
888-47495-02-00
Unavailable
14
BOLT(3RV)
97014-06035-00
$2.75
15
WASHER, PLATE
90201-06747-00
Unavailable
16
NUT, NYLON
95707-06300-00
Unavailable
17
BRACKET 2
8L4-47416-00-00
Unavailable
18
BOLT(21W)
97017-06035-00
Unavailable
19
NUT, NYLON
95707-06300-00
Unavailable
20
ARM, PIVOT 1
8X0-47331-00-00
Unavailable
21
RUNNER, SLIDING 2
8G8-47422-00-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
NUT, NYLON
95707-06300-00
Unavailable
24
SCREW PAN HEAD
98580-06020-00
Unavailable
25
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
26
SHAFT 1
8A5-47465-02-00
Unavailable
27
SPACER
885-47341-00-00
Unavailable
28
WASHER, TTH
92907-10400-00
Unavailable
29
BOLT (8J7)
97013-10030-00
Unavailable
30
SHAFT 3
8A5-47485-02-00
Unavailable
31
WASHER, PLATE
90201-10058-00
Unavailable
32
COLLAR
90387-30570-00
Unavailable
33
HOOK 1
8E7-47446-00-00
Unavailable
34
BOLT
97013-10040-00
Unavailable
35
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
36
. SPRING, FRONT 1
8X0-47471-00-00
Unavailable
36
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
36
. WASHER, PLATE
90201-203F5-00
Unavailable
36
SPRING, FRONT 1
99999-01433-00
Unavailable
37
. SPRING, FRONT 2
8X0-47472-00-00
Unavailable
37
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
37
. WASHER, PLATE
90201-203F5-00
Unavailable
37
SPRING, FRONT 2
99999-01434-00
Unavailable
38
SHOCK ABSORBER
8E7-47480-01-00
Unavailable
39
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
40
PIN, COTTER
91490-30030-00
Unavailable
41
FRAME, SLIDING 2
8E3-47412-00-00
Unavailable
42
FRAME, SLIDING 3
8E3-47413-00-00
Unavailable
43
BOLT, WITH WASHER
90119-08008-00
Unavailable
44
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
45
BOLT (8M8)
90101-08374-00
Unavailable
46
NUT, NYLON
95717-08300-00
$2.70
47
COLLAR (899 SUSPENSION)
90387-08497-00
Unavailable
48
BOLT, HEXAGON
97027-08250-00
Unavailable
49
RUNNER, SLIDING
8E3-47422-00-00
Unavailable
50
BOLT, HEXAGON
97017-06025-00
Unavailable
51
WASHER, SPRING
92995-06100-00
Unavailable
52
WASHER, PLATE
90201-06020-00
Unavailable
53
ARM, PIVOT 2
8A5-47332-00-00
Unavailable
54
BRACKET 3
8A5-47417-00-00
Unavailable
55
COLLAR (8A5 SUSPENSION)
90387-08508-00
Unavailable
56
BOLT
97013-08045-00
Unavailable
57
WASHER (1T1)
90201-08649-00
Unavailable
58
NUT, NYLON
95717-08300-00
$2.70
59
SHAFT 2
8A5-47475-02-00
Unavailable
60
WASHER, TTH
92907-10400-00
Unavailable
61
BOLT (8J7)
97013-10030-00
Unavailable
62
BRACKET, REAR 1
8A5-47425-00-00
Unavailable
63
BRACKET, REAR 1
8A5-47426-00-00
Unavailable
64
BOLT(JA9)
90101-08691-00
Unavailable
65
WASHER (688)
92990-08400-00
Unavailable
66
DAMPER 2
8L1-47457-01-00
Unavailable
67
BRACKET 5
8L4-47463-00-00
Unavailable
68
BRACKET 6
8L4-47464-00-00
Unavailable
69
BOLT(21W)
97017-06035-00
Unavailable
70
HOOK 2
890-47447-00-00
Unavailable
71
PIN WITH HOLE (890)
90249-12113-00
Unavailable
72
WASHER, PLATE
90201-12047-00
Unavailable
73
PIN, COTTER
91490-30030-00
Unavailable
74
SPRING, TORSION 3(8E7)
90508-99331-00
Unavailable
75
SPRING, TORSION 4(8E7)
90508-99332-00
Unavailable
76
BOLT, HEXAGON (8E3)
90101-10314-00
Unavailable
77
NUT (2Y5)
90179-10279-00
Unavailable
77
NUT (682)
95380-10700-00
Unavailable
