SPEEDOMETER KIT ET340TF

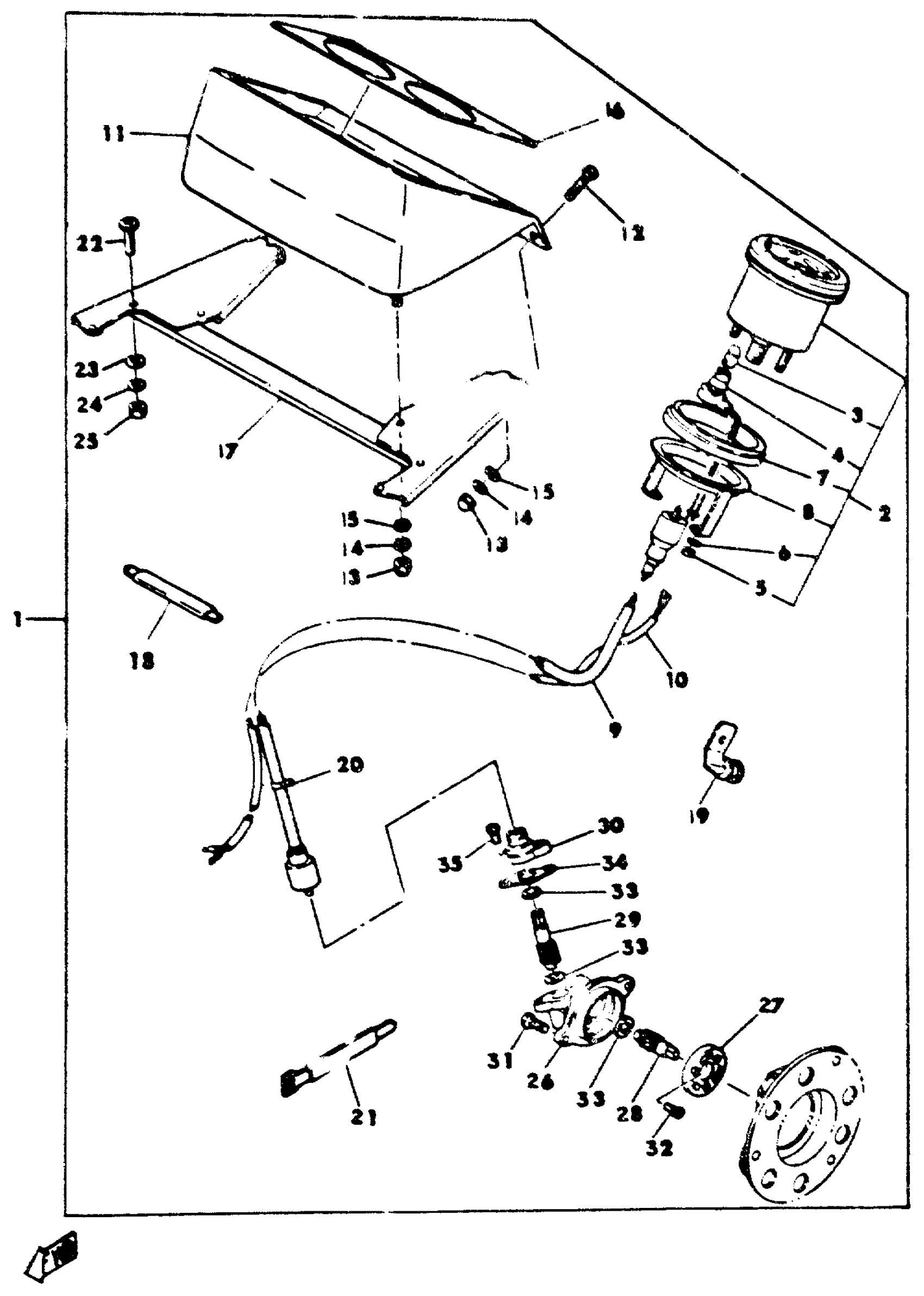

Yamaha ET340TF 1982 SPEEDOMETER KIT ET340TF Diagram
#
1
SPEEDOET300/340BCD
(ACC-01200-68-00)
Unavailable
2
SPEEDOMETER ASSEMBLY
8G6-83510-21-00
Unavailable
3
BULB (12V-3.4W)
123-83516-21-00
$4.26
4
SOCKET, METER
(861-83536-40-00)
Unavailable
5
NUT, HEXAGON (663)
95380-05600-00
$8.49
6
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
7
DAMPER, METER
8G6-83523-00-00
Unavailable
8
. BRACKET, METER
8G6-83519-00-00
Unavailable
9
SPEEDOMETER CABLE
8F3-83550-01-00
Unavailable
10
WIRE, LEAD
8H4-83553-00-00
Unavailable
11
PANEL,METER
8G5-83611-00-00
Unavailable
12
SCREW, BINDING
98907-05020-00
$8.49
13
NUT, HEXAGON (663)
95380-05600-00
$8.49
14
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
15
. WASHER, PLAIN
92990-05200-00
Unavailable
16
COVER, METER PANEL
8G6-83612-00-00
Unavailable
17
BRACKET, PANEL 1
8G5-83631-00-00
Unavailable
18
CLAMP
90465-05128-00
Unavailable
19
CLAMP
90465-08028-00
Unavailable
20
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
21
BAND
341-26397-01-00
Unavailable
22
SCREW, BIND
98903-05016-00
Unavailable
23
. WASHER, PLAIN
92990-05200-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
25
NUT, HEXAGON (663)
95380-05600-00
$8.49
26
HOUSING
8E6-47711-10-00
Unavailable
27
JOURNAL
853-47712-10-00
Unavailable
28
GEAR, DRIVE
810-47731-11-00
Unavailable
29
GEAR, DRIVEN (810-47741-10)
810-47741-11-00
Unavailable
30
COVER, METER HOUSING
8E3-47721-10-00
Unavailable
31
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
32
SCREW, FLAT
98707-04012-00
Unavailable
33
SHIM
810-47717-10-00
Unavailable
34
GASKET
810-47727-11-00
Unavailable
35
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
