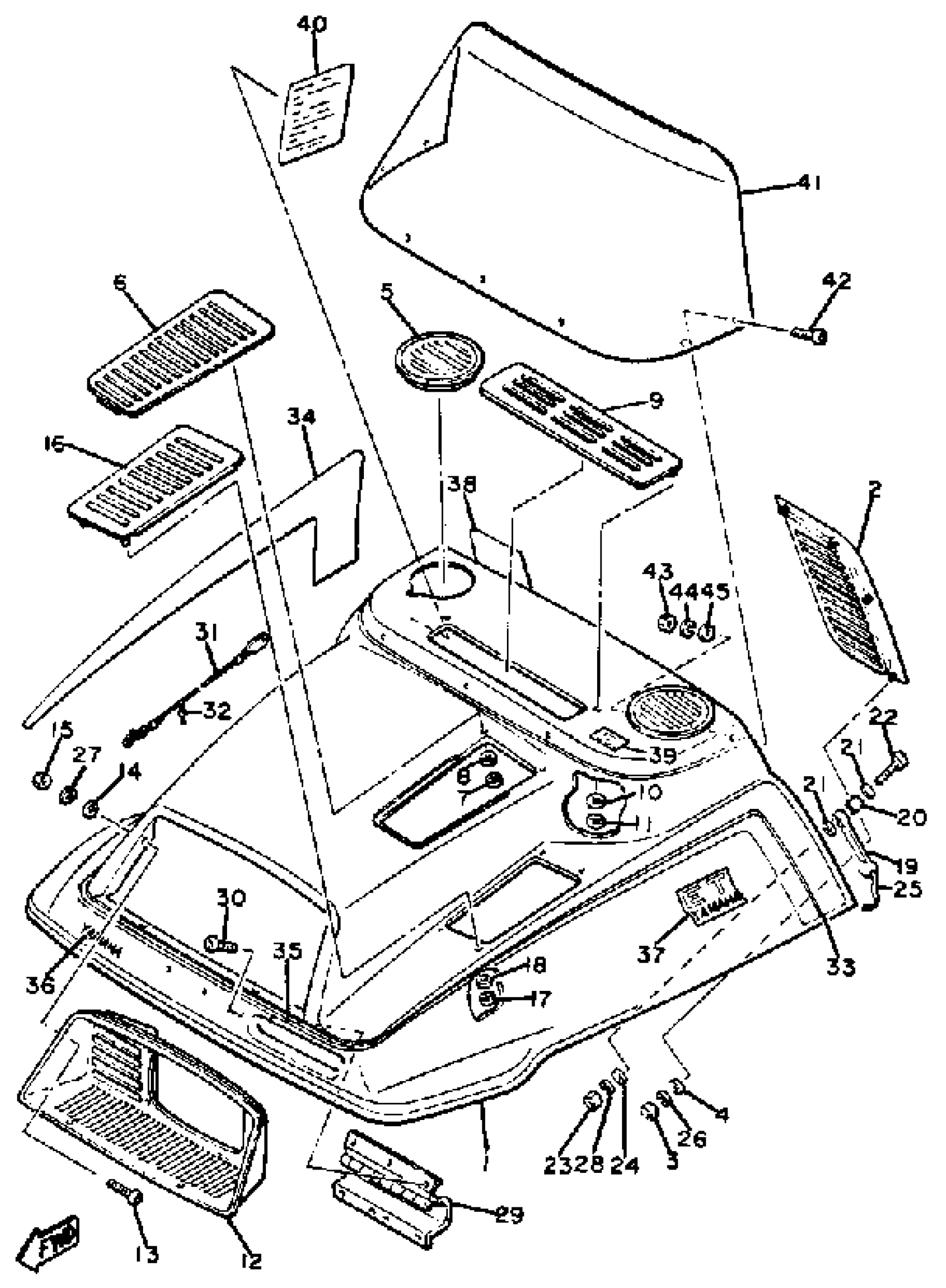

Yamaha ET340TF 1982 SHROUD - WINDSHIELD ET340TF Diagram

#

Description
Price

1

SHROUD ASSEMBLY

8G8-W7711-01-00

Unavailable

2

LOUVER 1

8F3-77131-00-00

Unavailable

3

NUT, HEXAGON (663)

95380-05600-00

$8.49

4

. WASHER, PLAIN

92990-05200-00

Unavailable

5

LOUVER 3

8F3-77133-00-00

Unavailable

6

LOUVER 4

8J4-77134-00-00

Unavailable

7

NUT 6504269100

90183-05003-00

$9.49

8

EMBLEM 3

838-77143-00-00

Unavailable

9

LOUVER 5

8J4-77109-00-00

Unavailable

10

EMBLEM 3

838-77143-00-00

Unavailable

11

NUT 6504269100

90183-05003-00

$9.49

12

BODY, HEADLIGHT

8F3-84311-00-00

Unavailable

13

SCREW, BINDING

98907-05020-00

$8.49

14

WASHER, PLAIN (3GDF)

90201-051K1-00

$8.49

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

LOUVER 6

8J4-77108-00-00

Unavailable

17

NUT 6504269100

90183-05003-00

$9.49

18

EMBLEM 3

838-77143-00-00

Unavailable

19

LATCH ASSEMBLY

8G5-77170-00-00

Unavailable

20

SPACER

90560-07007-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

SCREW, BINDING

98907-06030-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

25

LATCH ASSEMBLY

8N8-77170-00-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

HINGE ASSEMBLY

8F3-77140-00-00

Unavailable

30

SCREW, BIND (705)

98980-06016-00

Unavailable

31

STOPPER, SHROUD

8G8-77118-00-00

Unavailable

32

CLAMP,ROD

838-77159-00-00

Unavailable

33

ORNAMENT 1

8N5-77163-00-00

Unavailable

34

ORNAMENT 2

8N5-77164-00-00

Unavailable

35

STRIPE 1

8N4-77281-00-00

Unavailable

36

EMBLEM 1

8N4-77351-00-00

Unavailable

37

EMBLEM 2

8N4-77352-00-00

Unavailable

38

LABEL, WARNING

8F3-77458-00-00

Unavailable

39

LABEL, WARNING 1

8L2-77761-01-00

Unavailable

40

INDICATOR 3

(8R3-77743-00-00)

Unavailable

41

WINDSHIELD

8R3-77210-00-00

Unavailable

42

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

43

NUT, HEXAGON (663)

95380-05600-00

$8.49

44

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

45

GRAPHIC SET

(8N5-W0070-00-00)

Unavailable

45

WASHER, PLATE 8067717800

90201-05029-00

Unavailable
