1982 Yamaha ET340TF Frame ET340TF Diagram

← All diagrams

Find the part on the Frame ET340TF diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

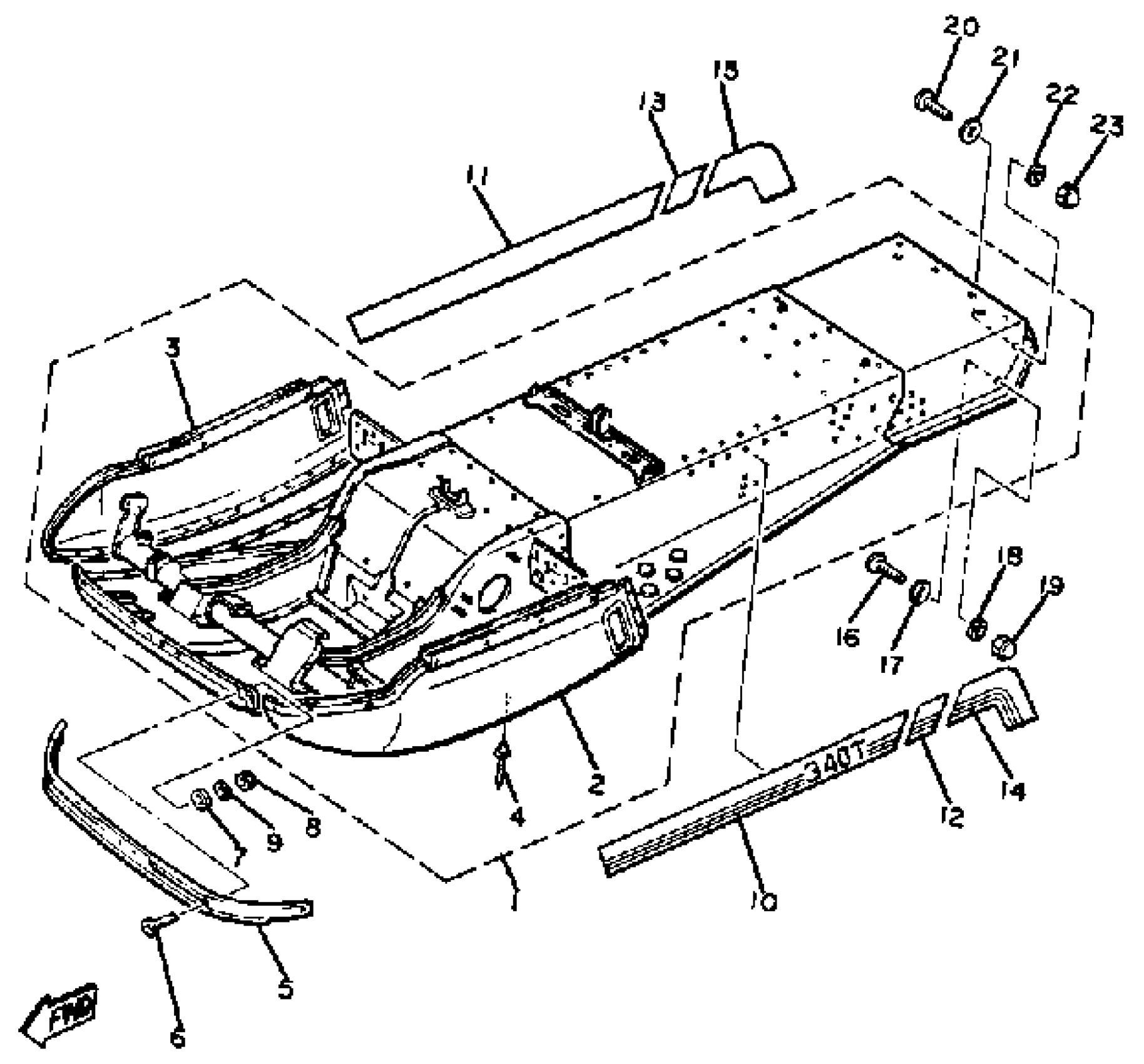

1982 Yamaha ET340TF Frame ET340TF Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8R3-21910-00-00)

1
Out of stock

2

. HOOD 1

8J6-21982-00-00

1
Out of stock

3

HOOD 2

8J6-21983-00-00

1
Out of stock

4

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

5

RNFCMNT, FRAME 1

8G8-21986-00-00

1
Out of stock

6

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

7

WASHER, PLATE

90201-06M08-00

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

EMBLEM 3

(8R3-77353-00-00)

1
Out of stock

11

EMBLEM 4

(8R3-77354-00-00)

1
Out of stock

12

EMBLEM 5

(8R3-77355-00-00)

1
Out of stock

13

EMBLEM 6

(8R3-77356-00-00)

1
Out of stock

14

EMBLEM 7

(8R3-77357-00-00)

1
Out of stock

15

EMBLEM 8

(8R3-77358-00-00)

1
Out of stock

16

SCREW,BINDING

98907-08014-00

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

NUT, CROWN

95303-08800-00

—

$7.52

In stock

20

SCREW, BINDING

98907-08016-00

1
Out of stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

NUT, CROWN

95303-08800-00

—

$7.52

In stock
