1982 Yamaha ET340TF Bumper ET340TF - TG Diagram

← All diagrams

Find the part on the Bumper ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

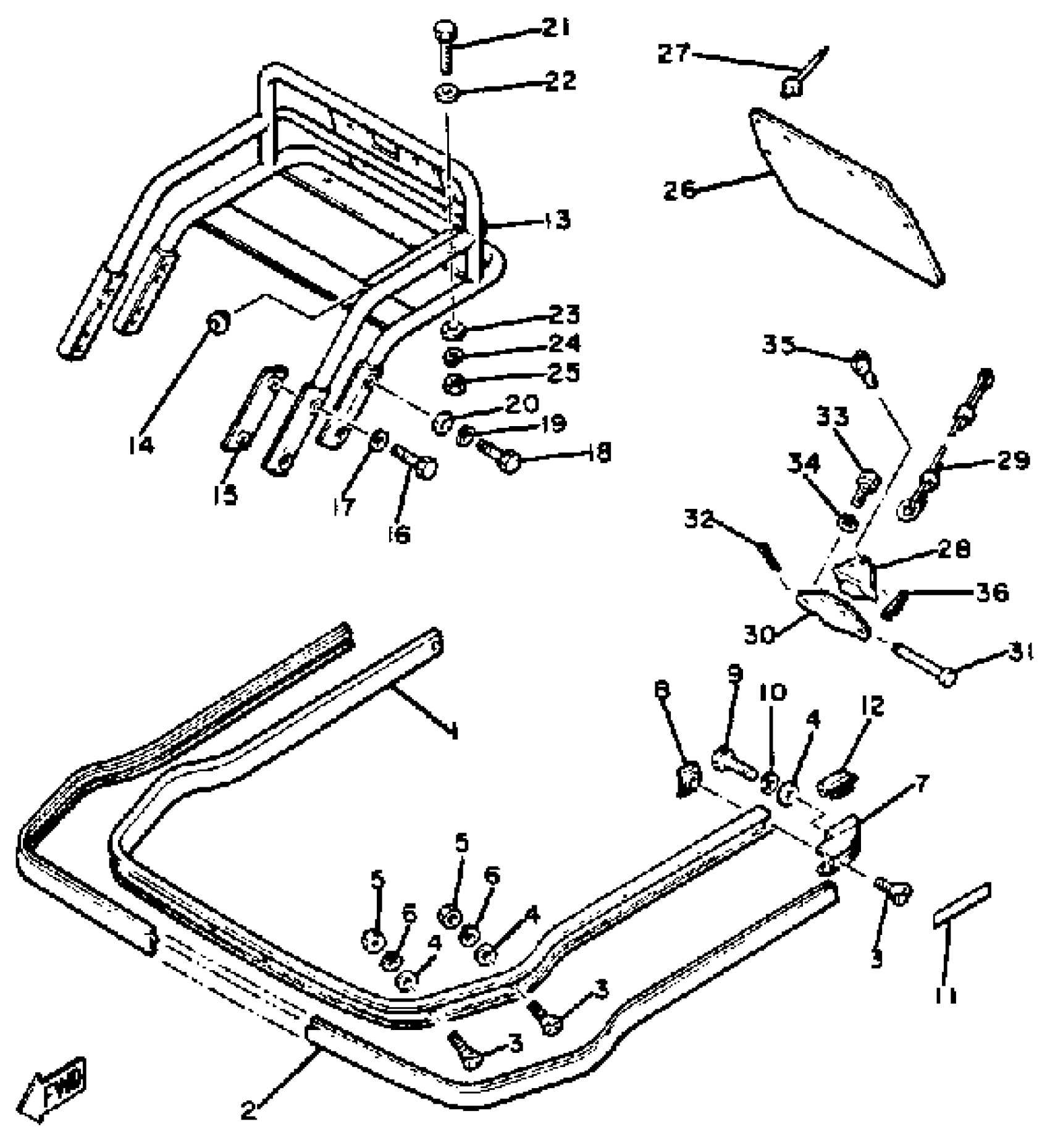

1982 Yamaha ET340TF Bumper ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8G8-77511-00-00

1
Out of stock

2

BUMPER, FRONT 4

8G8-77514-00-00

1
Out of stock

3

SCREW, FLAT

98707-06030-00

1

$6.08

In stock

4

WASHER, PLATE

90201-06M08-00

1
Out of stock

5

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

END, BUMPER

8G8-77523-01-00

1
Out of stock

8

STAY 1

8G8-77535-00-00

1
Out of stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

STRIPE 3

8G8-77283-00-00

1
Out of stock

12

BUSH, RUBBER 2

8H5-77516-00-00

1
Out of stock

13

BUMPER, REAR 1

(8L1-77541-00-00)

1
Out of stock

14

GROMMET (8L1)

90480-15268-00

—

$20.82

In stock

15

BRKT, ASSIST GRIP

8L1-77576-00-00

1
Out of stock

16

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

BOLT

97013-08035-00

—

$4.80

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

21

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

23

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

FLAP

8F2-77595-00-00

1
Out of stock

27

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

28

BRACKET, HITCH 1

8H7-77591-00-00

1
Out of stock

29

BRACKET, HITCH 2

8F1-77592-00-00

1
Out of stock

30

BRACKET, HITCH 7

8H7-77597-00-00

1
Out of stock

31

PIN, CLEVIS

91701-08100-00

1
Out of stock

32

PIN, COTTER

91490-25020-00

—

$2.94

In stock

33

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

34

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

35

PIN, SPEC''L SHAPE

90249-10126-00

1
Out of stock

36

PIN, HINGE

8A7-77157-00-00

1
Out of stock
