1982 Yamaha ET340TF Engine Bracket ET340TF - TG Diagram

← All diagrams

Find the part on the Engine Bracket ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

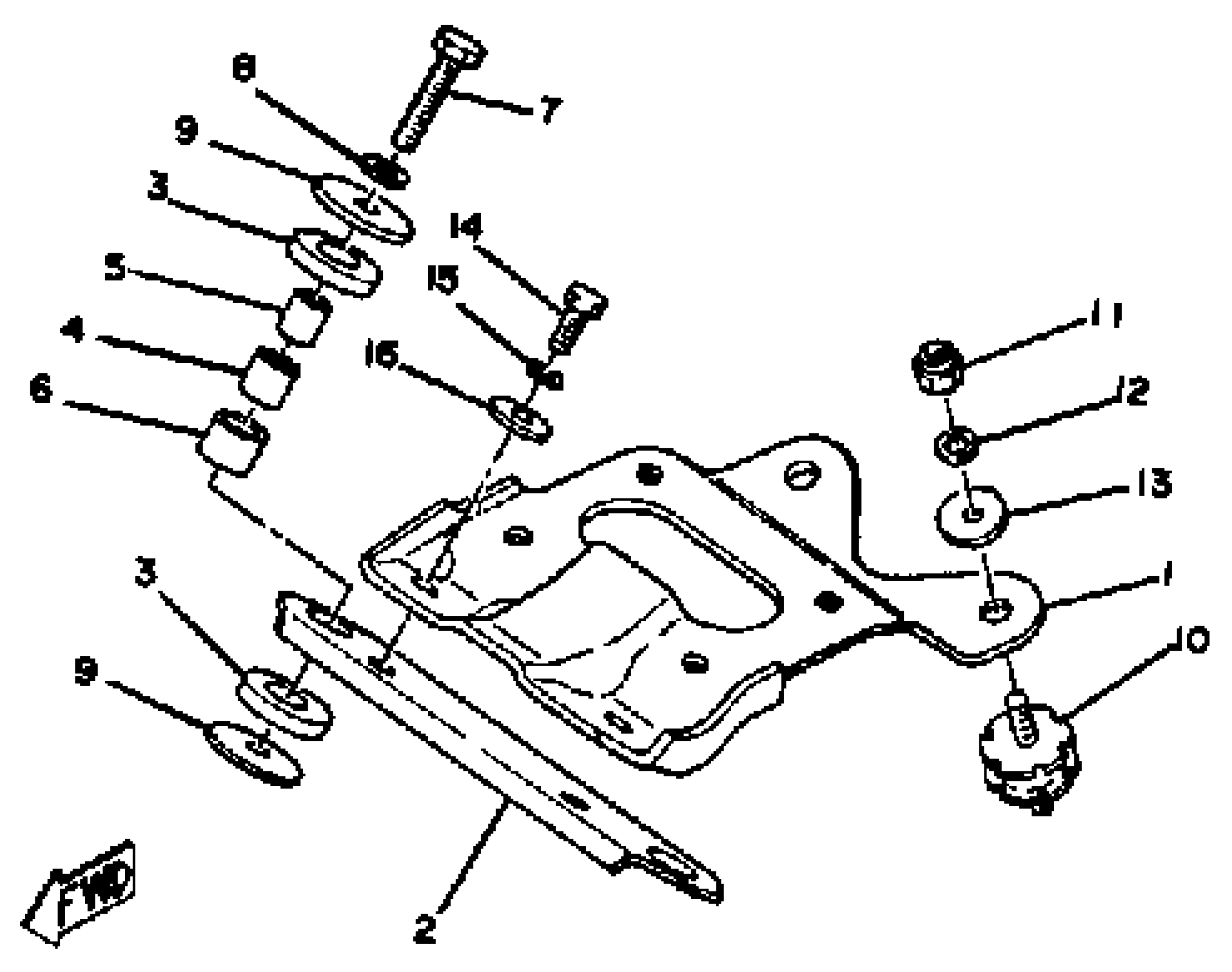

1982 Yamaha ET340TF Engine Bracket ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8G8-21411-00-00

1
Out of stock

2

BRACKET, ENGINE 2

8G8-21419-00-00

1
Out of stock

3

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

4

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

5

COLLAR

90387-10514-00

1
Out of stock

6

COLLAR

90387-21515-00

1
Out of stock

7

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

WASHER (888)

90201-10151-00

—

$3.94

In stock

10

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

11

NUT(624)

95380-10600-00

1

$2.14

In stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

14

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

WASHER (583)

90201-10639-00

—
Out of stock
