1982 Yamaha ET340TF Crankcase ET340TF - TG Diagram

← All diagrams

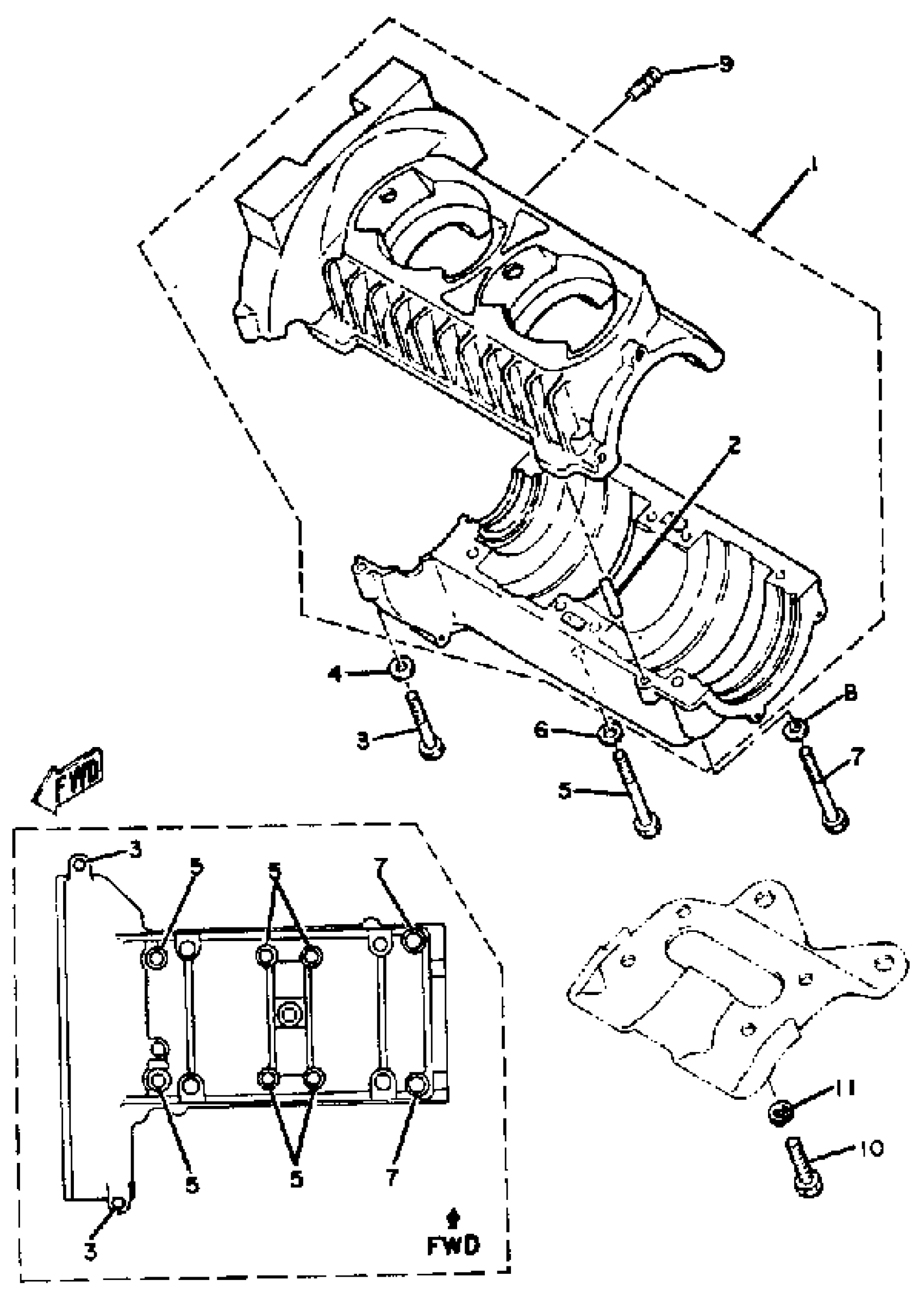

Find the part on the Crankcase ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha ET340TF Crankcase ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASY

8J9-15100-01-00

1
Out of stock

2

PIN, DOWEL (8G8)

93605-10108-00

1

$6.68

In stock

3

BOLT

97014-08040-00

1

$5.26

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

BOLT (663)

97013-08060-00

1

$3.25

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

PIPE, JOINT

8G8-24461-00-00

1
Out of stock

10

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
