Description

Price

1

CDI UNIT ASSEMBLY

8N4-85540-20-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

NUT, NYLON

95707-06300-00

$3.50

5

IGNITION COIL ASY

8E7-82310-09-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WIRE, SUB-LEAD

J42-82318-00-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

12

SEAL, PLUG CAP

8G8-82372-00-00

Unavailable

13

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

14

CLAMP (3Y2)

90464-16039-00

$9.49

15

WIRE HARNESS ASSEMBLY

8N5-82590-20-00

Unavailable

16

CLAMP

90465-08028-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

$7.99

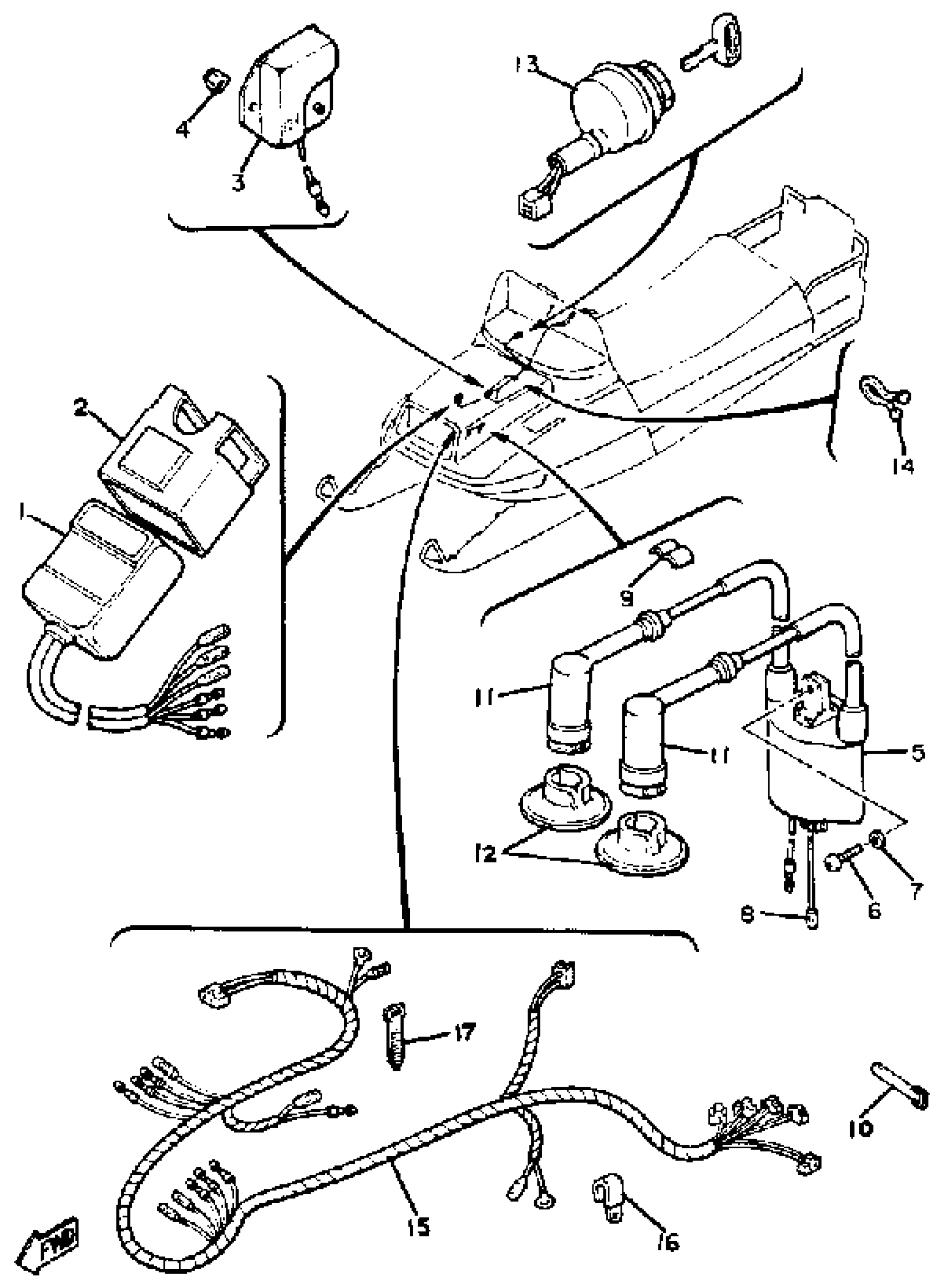

Yamaha ET340TF 1982 ELECTRICAL 1 ET340TF - TG Diagram

CDI UNIT ASSEMBLY

BAND

VOLTAGE REGULATOR ASSY

NUT, NYLON

IGNITION COIL ASY

SCREW PAN HEAD

WASHER, SPRING

WIRE, SUB-LEAD

CLAMP, CORD

BAND, SWITCH CORD

PLUG CAP ASSEMBLY

SEAL, PLUG CAP

MAIN SWITCH ASSY

CLAMP (3Y2)

WIRE HARNESS ASSEMBLY

CLAMP

BAND, SWITCH CORD
