- ET340M (ENTICER 340) 1988
SHROUD - WINDSHIELD

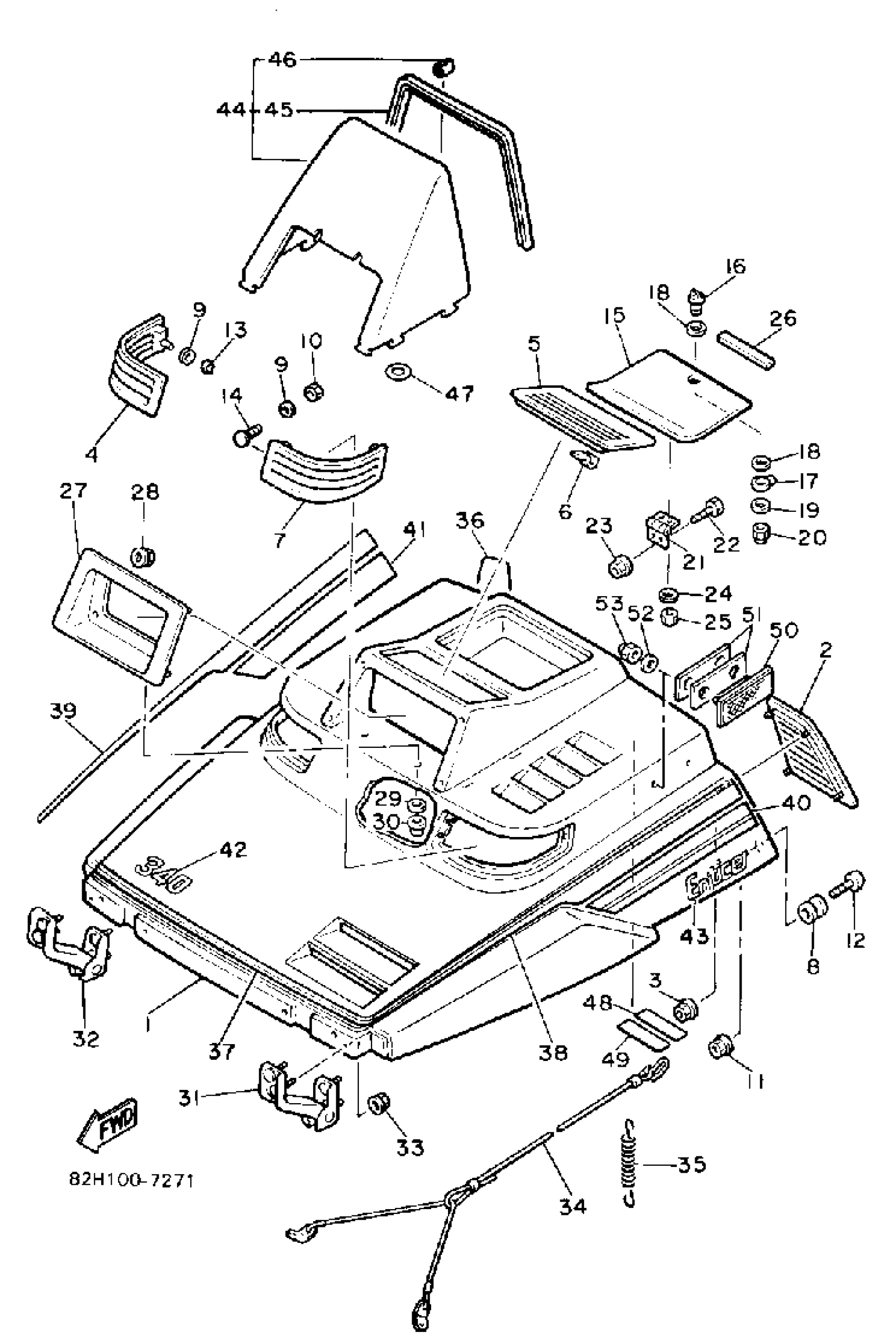

Yamaha ET340M (ENTICER 340) 1988 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASY
83T-77111-00-00
Unavailable
2
LOUVER 1
8W8-77131-00-00
Unavailable
3
NUT, FLANGE(3GM)
95707-05500-00
$8.49
4
LOUVER 3
83T-77133-00-00
Unavailable
5
LOUVER 4
83T-77134-00-00
Unavailable
6
CLIP
90468-05094-00
Unavailable
7
LOUVER 5
83T-77109-00-00
Unavailable
8
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
9
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
10
NUT, NYLON
95707-05300-00
$4.24
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, BINDING
98907-06030-00
$8.49
13
NUT, SPRING(2MA)
90183-04045-00
Unavailable
14
BOLT
90109-051E9-00
Unavailable
15
COVER, LUGGAGE BOX
83T-77392-00-00
Unavailable
16
KNOB
8L9-77324-00-00
Unavailable
17
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
18
WASHER, PLAIN(735)
90201-10119-00
Unavailable
19
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
20
NUT, NYLON
95707-05300-00
$4.24
21
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
22
BOLT
97006-05014-00
Unavailable
23
NUT, FLANGE(3GM)
95707-05500-00
$8.49
24
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
25
NUT, CAP
95307-05800-00
Unavailable
26
DAMPER 2
8W6-77374-00-00
Unavailable
27
BODY, HEADLIGHT
83T-84311-00-00
Unavailable
28
NUT, FLANGE(3GM)
95707-05500-00
$8.49
29
WASHER, PLATE
90201-04027-00
Unavailable
30
NUT, SPRING (1L9)
90183-04012-00
Unavailable
31
HINGE ASSEMBLY
8W6-77140-00-00
Unavailable
32
HINGE ASSEMBLY 2
8W6-7714A-00-00
Unavailable
33
NUT, FLANGE(7NB)
95780-06500-00
$2.60
34
STOPPER,SHROUD
89X-77118-00-00
Unavailable
35
CLAMP, ROD
80X-77159-00-00
Unavailable
36
LABEL, WARNING
8Y2-77458-00-00
Unavailable
37
ORNAMENT 1
83T-77163-00-00
Unavailable
38
ORNAMENT 2
83T-77164-00-00
Unavailable
39
ORNAMENT 3
83T-77169-00-00
Unavailable
40
ORNAMENT 4
83T-77113-00-00
Unavailable
41
ORNAMENT 5
83T-77114-00-00
Unavailable
42
EMBLEM 1
83T-77351-00-00
Unavailable
43
EMBLEM 2
83T-77352-00-00
Unavailable
44
WINDSHIELD,ET340
8X1-77210-10-XX
Unavailable
45
TRIM,UPPER
87K-77213-00-00
Unavailable
46
. FASTENER
80V-77223-00-00
Unavailable
47
FASTNER
82H-77223-00-00
Unavailable
48
LABEL, CAUTION
80X-1417E-00-00
Unavailable
49
LABEL 1
80X-47578-00-00
Unavailable
50
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
51
BASE, REFLECTOR
80E-85115-00-00
Unavailable
52
WASHER, PLAIN (646)
92990-05600-00
Unavailable
53
NUT, NYLON
95707-05300-00
$4.24
