Description

Price

1

GUARD, DRIVE

8W6-77311-00-00

Unavailable

2

LABEL, WARNING 2

8BD-77762-00-00

$7.99

3

SHAFT

8F3-77327-00-00

Unavailable

4

PROTECTOR, DRIVE

8F3-77323-00-00

Unavailable

5

BOLT, HEXAGON

97017-08016-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

BOX, TOOL

8W6-77381-00-00

Unavailable

8

LID, TOOL BOX

8W6-77382-00-00

Unavailable

9

HOOK 1

8K4-77386-00-00

Unavailable

10

RIVET, BLIND (8R6)

90267-48086-00

$4.14

11

WASHER, PLATE

90201-04027-00

$3.02

12

PROTECTOR

8W6-77373-00-00

Unavailable

13

SCREW, BINDING

98907-05010-00

$8.49

14

NUT, NYLON

95707-05300-00

$4.24

15

SCREW, BINDING

98907-06014-00

$7.99

16

WASHER, PLATE

90201-06380-00

Unavailable

17

NUT (J17)

95380-06800-00

Unavailable

18

BRACKET, SPARK PLUGPLUG

8H9-77376-00-00

Unavailable

19

TOOL KIT

85L-28100-01-00

Unavailable

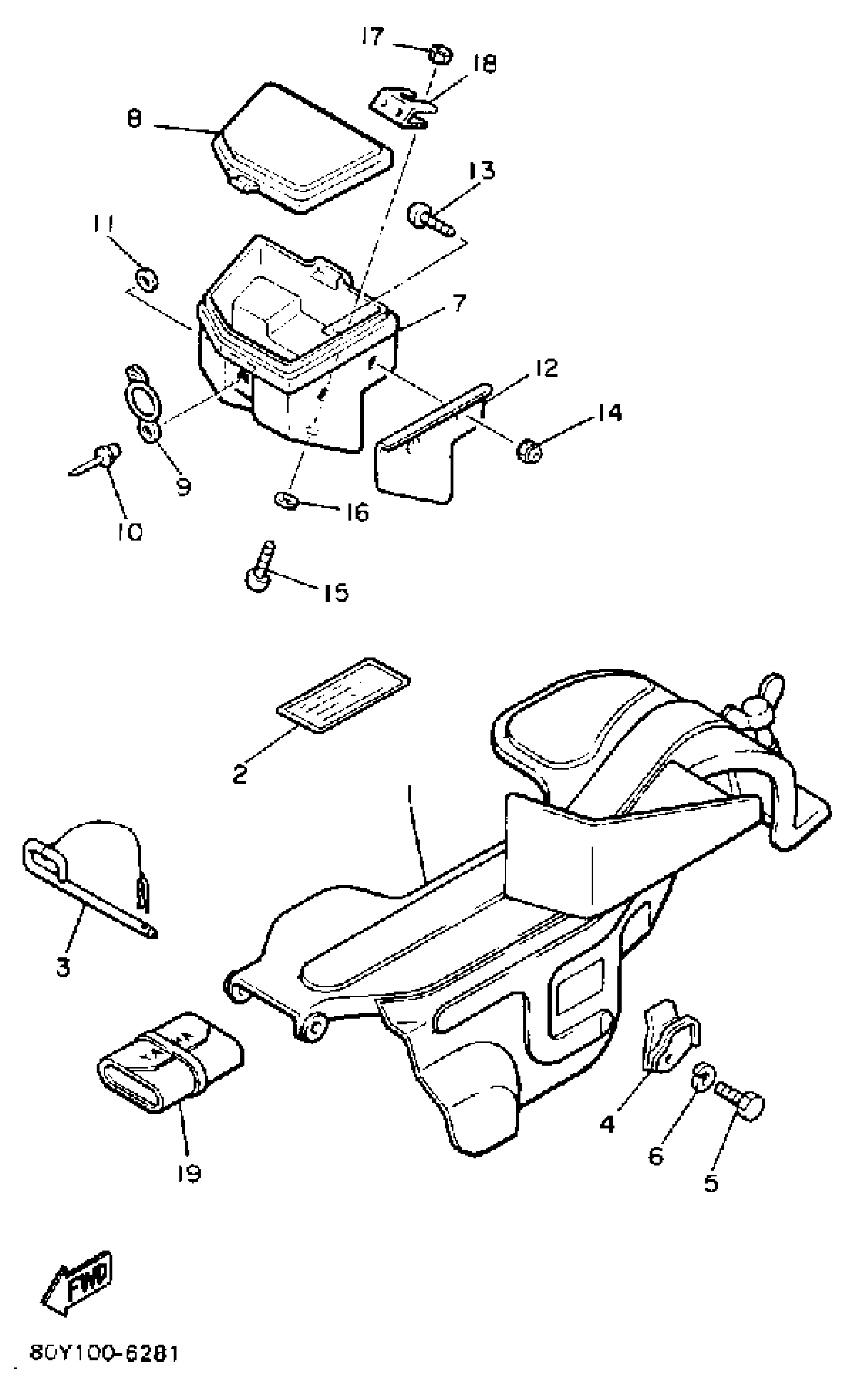

Yamaha ET340M (ENTICER 340) 1988 GUARD - LUGGAGE BOX Diagram

GUARD, DRIVE

LABEL, WARNING 2

SHAFT

PROTECTOR, DRIVE

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

BOX, TOOL

LID, TOOL BOX

HOOK 1

RIVET, BLIND (8R6)

WASHER, PLATE

PROTECTOR

SCREW, BINDING

NUT, NYLON

SCREW, BINDING

WASHER, PLATE

NUT (J17)

BRACKET, SPARK PLUGPLUG

TOOL KIT
