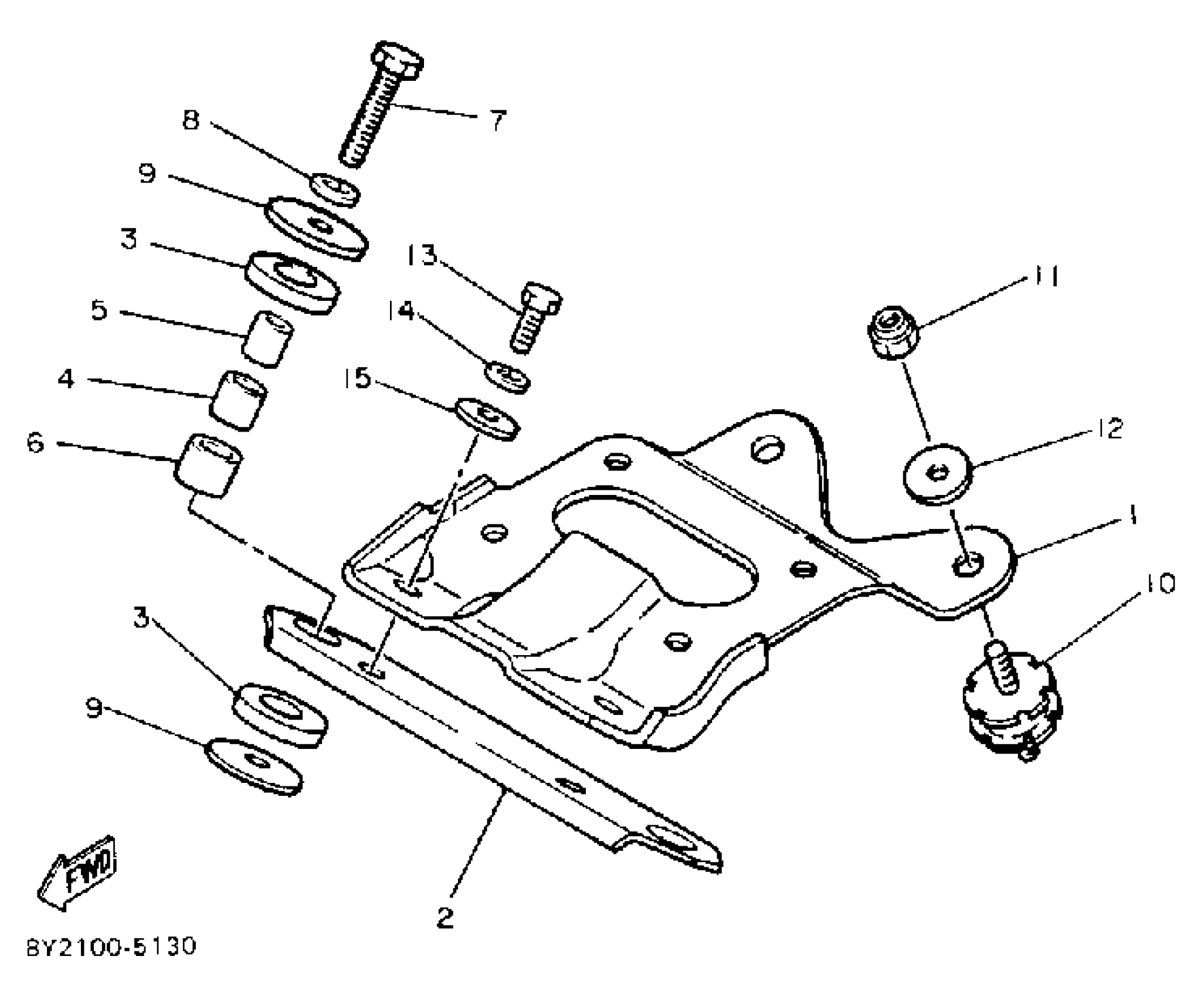

Yamaha ET340M (ENTICER 340) 1988 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8G8-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

8G8-21419-00-00

Unavailable

3

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

4

BUSH, SPEC''L RUBBER

90385-15025-00

Unavailable

5

COLLAR

90387-10514-00

Unavailable

6

COLLAR

90387-21515-00

Unavailable

7

BOLT,HEXAGON(676)

97013-10050-00

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

WASHER (888)

90201-10151-00

Unavailable

10

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

$77.99

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

WASHER, PLATE (856)

90201-10321-00

$8.49

13

BOLT(6TD)

97017-10025-00

$8.49

14

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

15

WASHER (583)

90201-10639-00

$10.49
