Description

Price

1

GASKET

8Y2-13563-02-00

$9.49

2

JOINT, CARBURETOR

8G8-13565-00-00

Unavailable

3

NOZZLE

824-13552-00-00

Unavailable

4

BOLT, FLANGE

95817-06020-00

$3.81

5

GASKET, MANIFOLD

8Y2-13556-01-00

Unavailable

6

GASKET

8H5-13567-00-00

Unavailable

7

BOLT, HEXAGON

97017-08016-00

$8.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLATE

90209-08150-00

Unavailable

10

MANIFOLD

8G8-13555-01-00

$114.99

11

BOLT, HEXAGON

97017-08025-00

$10.49

12

.. WASHER, PLATE

92990-08600-00

Unavailable

13

BAND

86M-13575-00-00

$19.49

14

JOINT, AIR CLEANER

8G8-14453-01-00

$31.99

15

CLAMP, HOSE (29L)

90460-68230-00

$16.99

16

CLAMP, HOSE(59V)

90460-85277-00

Unavailable

17

BRACKET, FUEL PUMP

8G8-24491-00-00

Unavailable

18

FUEL PUMP ASY

8J6-24410-01-00

Unavailable

19

BOLT, HEXAGON

97013-06018-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

Unavailable

22

CLIP

90467-090A2-00

Unavailable

23

HOSE (L450)

90445-10144-00

Unavailable

24

CLIP (8A1)

90467-09026-00

Unavailable

25

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

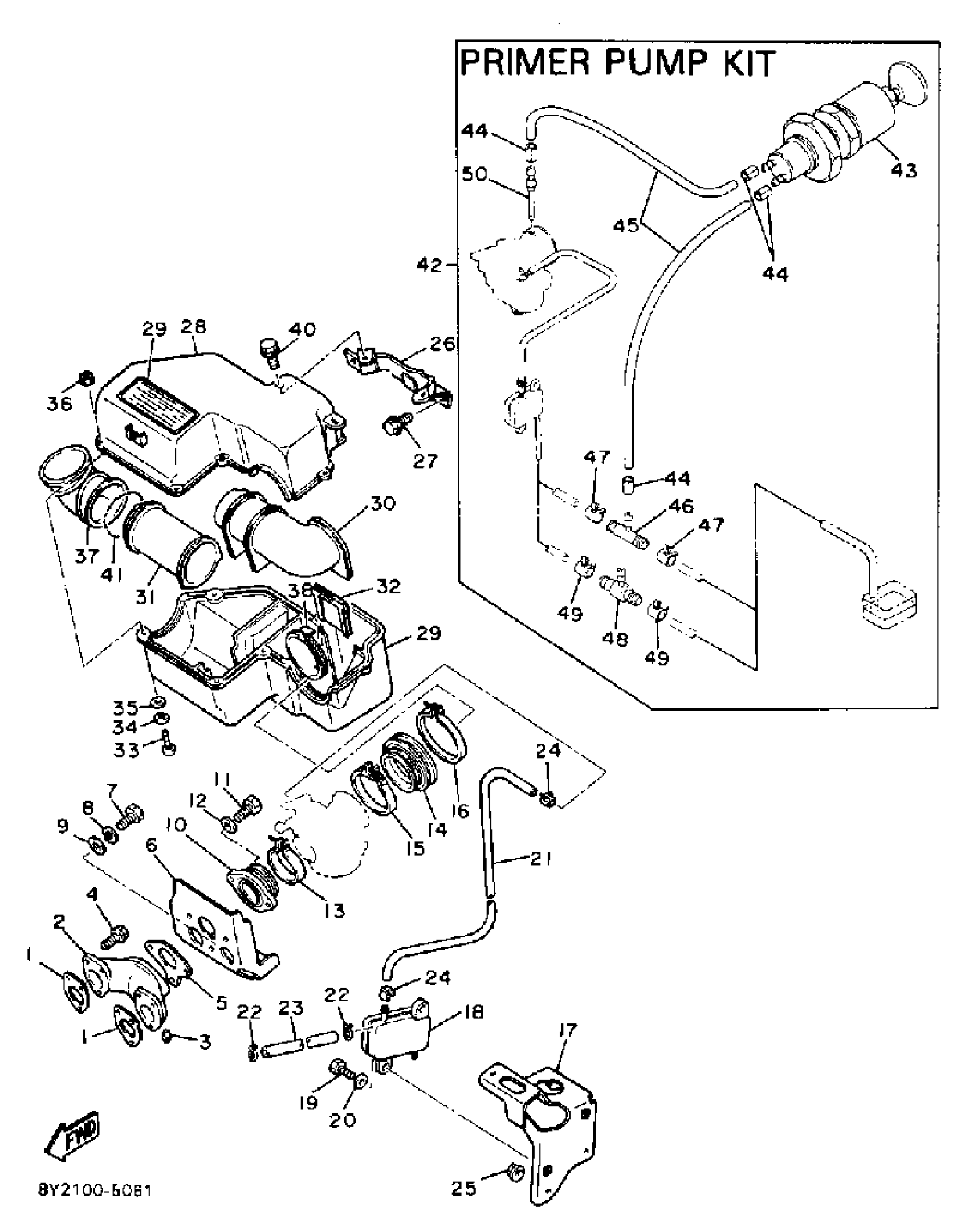

Yamaha ET340M (ENTICER 340) 1988 AIR CLEANER Diagram

GASKET

JOINT, CARBURETOR

NOZZLE

BOLT, FLANGE

GASKET, MANIFOLD

GASKET

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLATE

MANIFOLD

BOLT, HEXAGON

.. WASHER, PLATE

BAND

JOINT, AIR CLEANER

CLAMP, HOSE (29L)

CLAMP, HOSE(59V)

BRACKET, FUEL PUMP

FUEL PUMP ASY

BOLT, HEXAGON

WASHER, PLAIN (646)

TUBE, FLEXIBLE VINYL(8AU)

CLIP

HOSE (L450)

CLIP (8A1)

NUT, FLANGE(7NB)
