Partiron

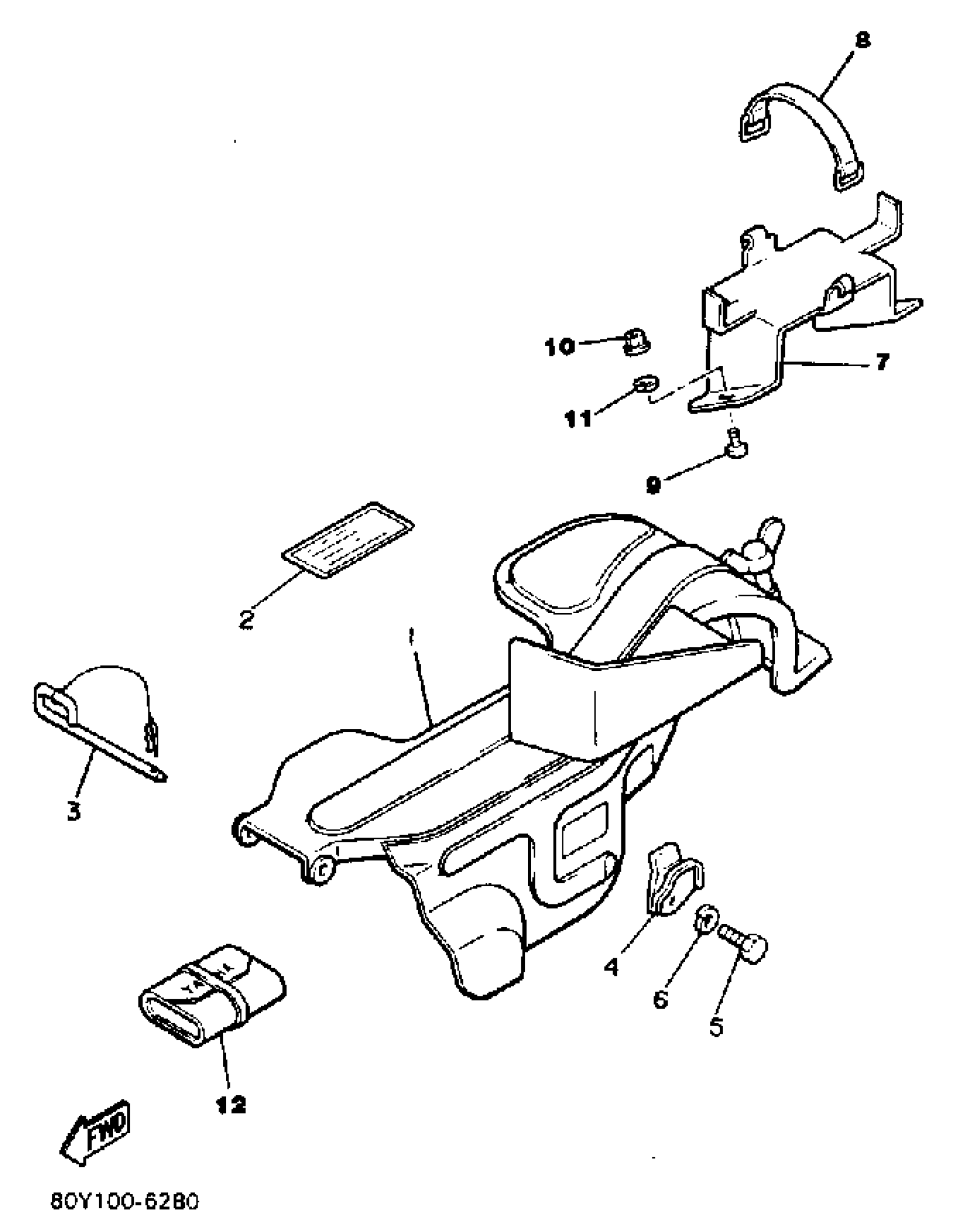

Yamaha ET340L (ENTICER 340) 1987 GUARD - LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8W6-77311-00-00

Unavailable

2

LABEL, WARNING 2

8BD-77762-00-00

$3.89

3

SHAFT

8F3-77327-00-00

Unavailable

4

PROTECTOR, DRIVE

8F3-77323-00-00

Unavailable

5

BOLT, HEXAGON

97017-08016-00

$5.79

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

BRACKET, TL BX FTNG

8W8-21945-00-00

Unavailable

8

BAND, BATTERY

4J2-82131-01-00

$22.53

9

SCREW, BINDING

98907-06014-00

$5.23

10

NUT, W/ WASHER

95707-06600-00

$5.77

11

WASHER, SPRING

92907-06100-00

$0.98

12

TOOL KIT

85L-28100-01-00

$69.15
