Description

Price

1

ROTOR ASSY

85L-85550-02-00

$229.99

2

BASE ASSY

83R-85560-M0-00

$247.99

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 1

82H-81313-M0-00

Unavailable

5

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

. TERMINAL, EARTH 1

8R4-85568-M0-00

Unavailable

8

. TERMINAL, EARTH 2

8R4-85569-M0-00

Unavailable

9

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

10

SCREW, WITH WASHER(81E)

90159-05130-00

$1.11

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

CLAMP (2T4)

90461-05036-00

Unavailable

15

COLLAR (1M1)

90387-06553-00

$9.49

16

SCREW, BIND (705)

98980-06016-00

Unavailable

17

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

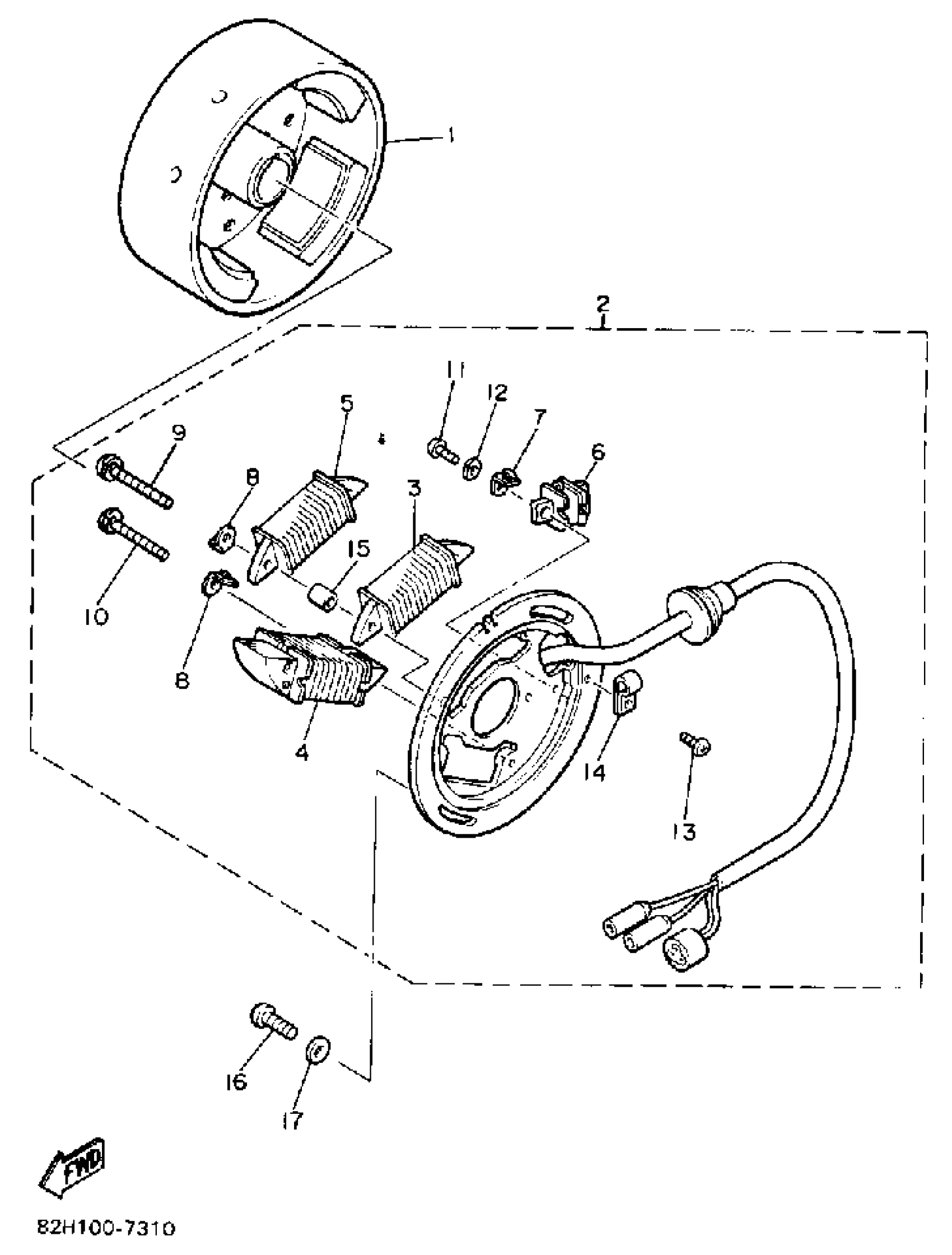

Yamaha ET340L (ENTICER 340) 1987 GENERATOR Diagram

ROTOR ASSY

BASE ASSY

COIL, CHARGE

COIL, LIGHTING 1

COIL, LIGHTING 2

PULSER ASSY

. TERMINAL, EARTH 1

. TERMINAL, EARTH 2

SCREW, WITH WASHER(81E)

SCREW, WITH WASHER(81E)

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD (713)

CLAMP (2T4)

COLLAR (1M1)

SCREW, BIND (705)

WASHER, PLATE 6261117600
