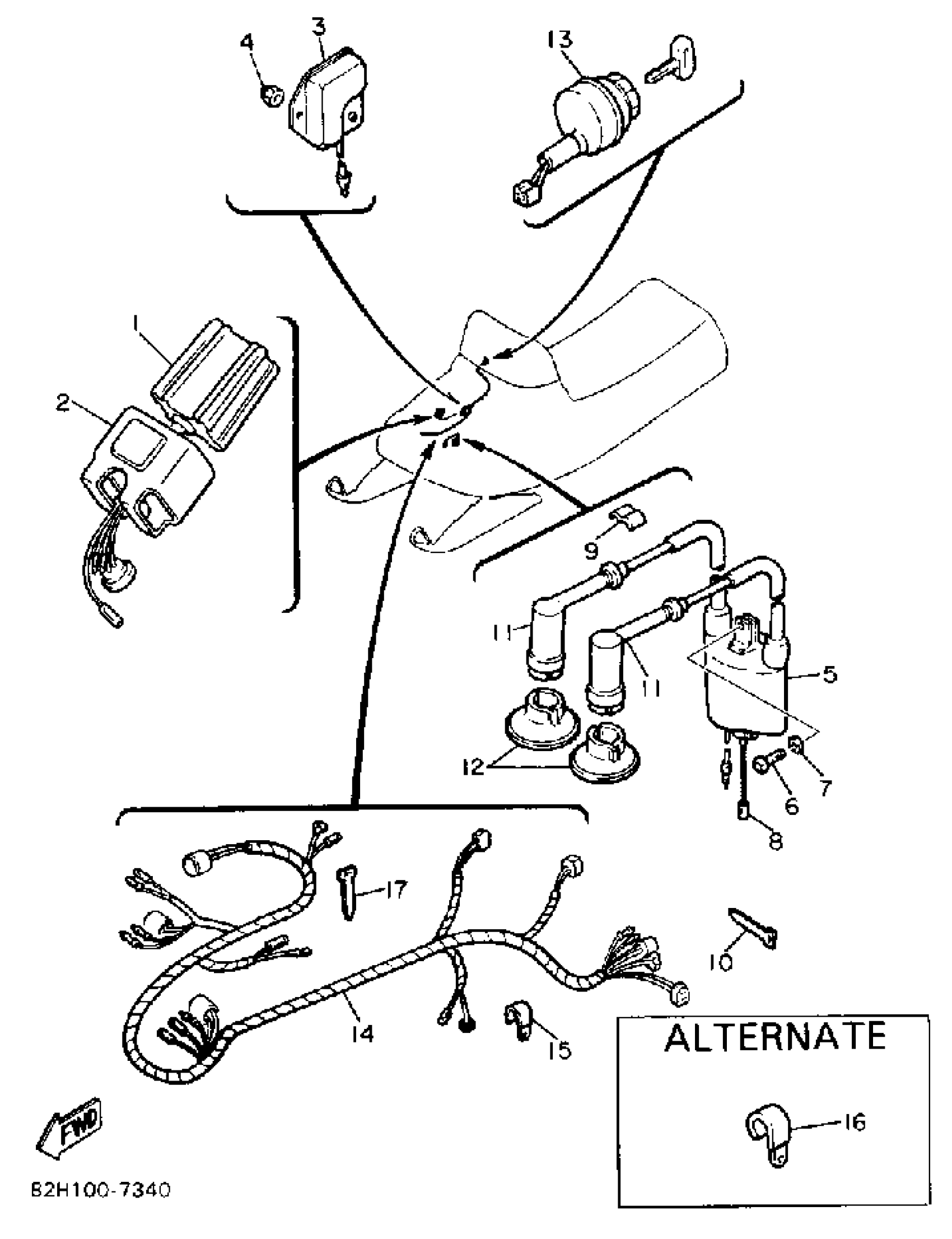

Yamaha ET340L (ENTICER 340) 1987 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

81E-85540-M0-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

NUT, NYLON

95707-06300-00

$3.50

5

IGNITION COIL ASSEMBLY

8W3-82310-T0-00

Unavailable

6

SCREW PAN HEAD

98580-06020-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

9

GROMMET 1

8W6-82355-00-00

Unavailable

10

BAND, SWITCH CORD

437-83936-01-00

$7.99

11

PLUG CAP ASSEMBLY

8J0-82370-10-00

Unavailable

12

SEAL, PLUG CAP

8G8-82372-00-00

Unavailable

13

MAIN SWITCH ASSY

8R4-82510-20-00

$117.99

14

WIRE HARNESS ASSEMBLY

82H-82590-20-00

Unavailable

15

CLAMP

90465-08028-00

Unavailable

16

CLAMP

90465-08028-00

Unavailable

17

BAND

341-26397-01-00

Unavailable
