- ET340K (ENTICER 340) 1986
SHROUD-WINDSHIELD

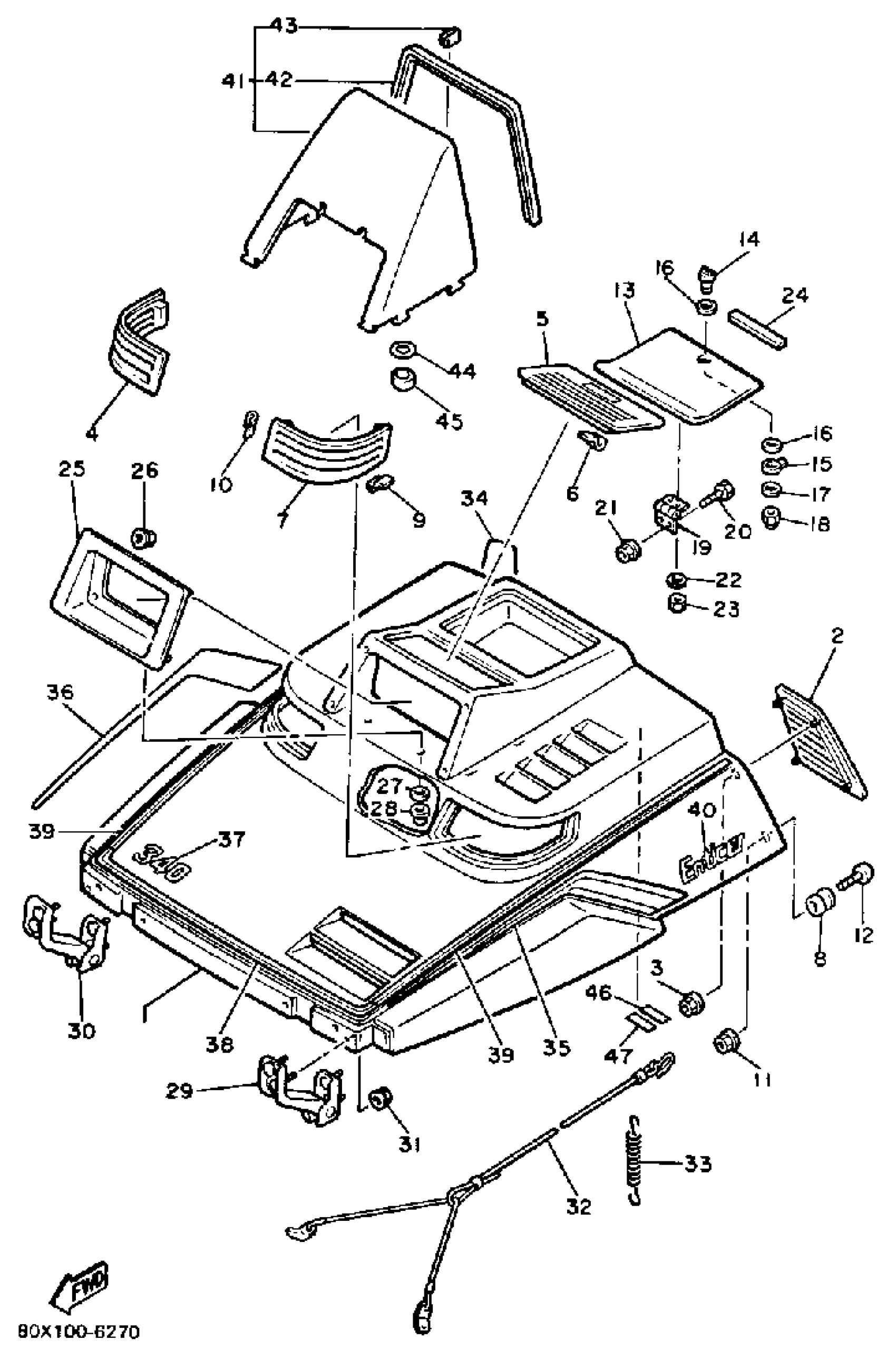

Yamaha ET340K (ENTICER 340) 1986 SHROUD-WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY
80E-W7711-09-00
Unavailable
2
LOUVER 1
8W8-77131-00-00
Unavailable
3
NUT, FLANGE(3GM)
95707-05500-00
$8.49
4
LOUVER 3
81M-77133-00-00
Unavailable
5
LOUVER 4
80E-77134-00-00
Unavailable
6
CLIP
90468-05094-00
Unavailable
7
LOUVER 5
80E-77109-00-00
Unavailable
8
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
9
CLIP
90468-05137-00
Unavailable
10
CLIP
90468-05138-00
Unavailable
11
NUT, FLANGE(7NB)
95780-06500-00
$2.60
12
SCREW, BINDING
98907-06030-00
$8.49
13
COVER, LUGGAGE BOX
80E-77392-00-00
Unavailable
14
KNOB
8L9-77324-00-00
Unavailable
15
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
16
WASHER, PLAIN(735)
90201-10119-00
Unavailable
17
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
18
NUT, NYLON
95707-05300-00
Unavailable
19
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
20
BOLT
97006-05014-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
$8.49
22
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
23
NUT, CAP
95307-05800-00
Unavailable
24
DAMPER 2
8W6-77374-00-00
Unavailable
25
BODY, HEADLIGHT
80E-84311-00-00
Unavailable
26
NUT, FLANGE(3GM)
95707-05500-00
$8.49
27
WASHER, PLATE
90201-04027-00
Unavailable
28
NUT, SPRING (1L9)
90183-04012-00
Unavailable
29
HINGE ASSEMBLY
8W6-77140-00-00
Unavailable
30
HINGE ASSEMBLY 2
8W6-7714A-00-00
Unavailable
31
NUT, FLANGE(7NB)
95780-06500-00
$2.60
32
STOPPER,SHROUD
89X-77118-00-00
Unavailable
33
CLAMP, ROD
80X-77159-00-00
Unavailable
34
LABEL, WARNING
8Y2-77458-00-00
Unavailable
35
ORNAMENT 1
80X-77163-00-00
Unavailable
36
ORNAMENT 2
80X-77164-00-00
Unavailable
37
EMBLEM 1
80X-77351-00-00
Unavailable
38
STRIPE 1
80X-77281-00-00
Unavailable
39
STRIPE 2
80X-77282-00-00
Unavailable
40
EMBLEM 2
80X-77352-00-00
Unavailable
41
WINDSHIELD,ET340
8X1-77210-10-XX
Unavailable
42
TRIM,UPPER
87K-77213-00-00
Unavailable
43
. FASTENER
80V-77223-00-00
Unavailable
44
FASTNER
82H-77223-00-00
Unavailable
45
FASTNER
82H-77223-00-00
Unavailable
46
LABEL, CAUTION
80X-1417E-00-00
Unavailable
47
LABEL 1
80X-47578-00-00
Unavailable
