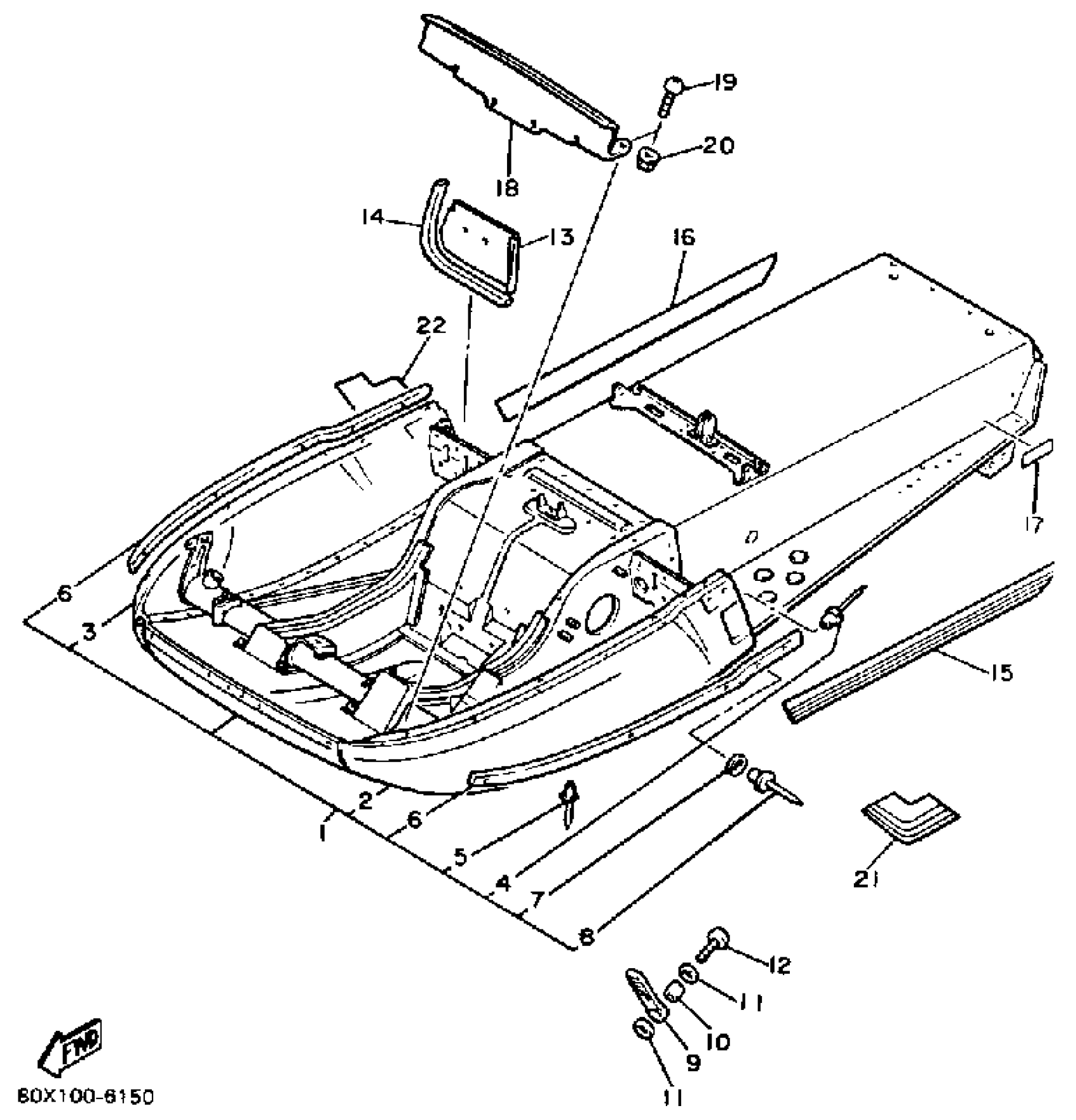

Yamaha ET340K (ENTICER 340) 1986 FRAME Diagram

#

Description
Price

1

FRAME COMP.

8Y2-21910-01-00

Unavailable

2

. HOOD 1

8X0-21982-00-00

Unavailable

3

. HOOD 2

8X0-21983-00-00

Unavailable

4

RIVET, BLIND (8H4)

90267-48053-00

$3.61

5

RIVET, BLIND (8J5)

90267-48057-00

$8.49

6

. TRIM 1

8W6-2196T-00-00

Unavailable

7

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

8

RIVET,BLIND

90267-40080-00

Unavailable

9

BODY, LATCH 1

8M6-77171-00-00

Unavailable

10

COLLAR (420)

90387-06241-00

$8.49

11

WASHER, PLATE 8221447500

90201-06057-00

$5.60

12

SCREW, BINDING

98907-06025-00

$8.49

13

COVER 2

8Y2-2198G-00-00

Unavailable

14

SHIELD, NOISE

8Y2-2199F-00-00

Unavailable

15

EMBLEM 4

80X-77354-00-00

Unavailable

16

EMBLEM 5

80X-77355-00-00

Unavailable

17

INDICATOR 2

8K2-77742-00-00

Unavailable

18

COVER,1

85T-2198F-00-00

Unavailable

19

SCREW, BINDING

98907-06012-00

Unavailable

20

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

21

ORNAMENT 3

80X-77169-00-00

Unavailable

22

ORNAMENT 4

80X-77113-00-00

Unavailable
