Description

Price

1

TRACK ASY

8J6-47110-02-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

CIRCLIP(5U8)

99009-42500-00

$8.49

6

SHAFT 5 (80X-47487-00-00)

90891-50061-00

Unavailable

7

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

8

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

9

BEARING(8AB)

93306-00444-00

$41.99

10

CIRCLIP(5U8)

99009-42500-00

$8.49

11

CIRCLIP(1AR)

99009-20400-00

$8.49

12

REAR AXLE COMP.

8L8-47520-02-00

$89.99

13

COLLAR

90387-200M8-00

Unavailable

14

COLLAR

90387-20022-00

$24.99

15

GUIDE WHEEL COMP.

8K2-47530-00-00

$127.99

16

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

17

CIRCLIP(48Y)

99009-47500-00

Unavailable

18

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

19

PIN, COTTER

91490-30030-00

Unavailable

20

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

21

BEARING(8AB)

93306-00444-00

$41.99

22

CIRCLIP(5U8)

99009-42500-00

$8.49

23

CIRCLIP(1AR)

99009-20400-00

$8.49

24

SHAFT 4

8V0-47486-00-00

Unavailable

25

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

26

PIN, COTTER

91490-30030-00

Unavailable

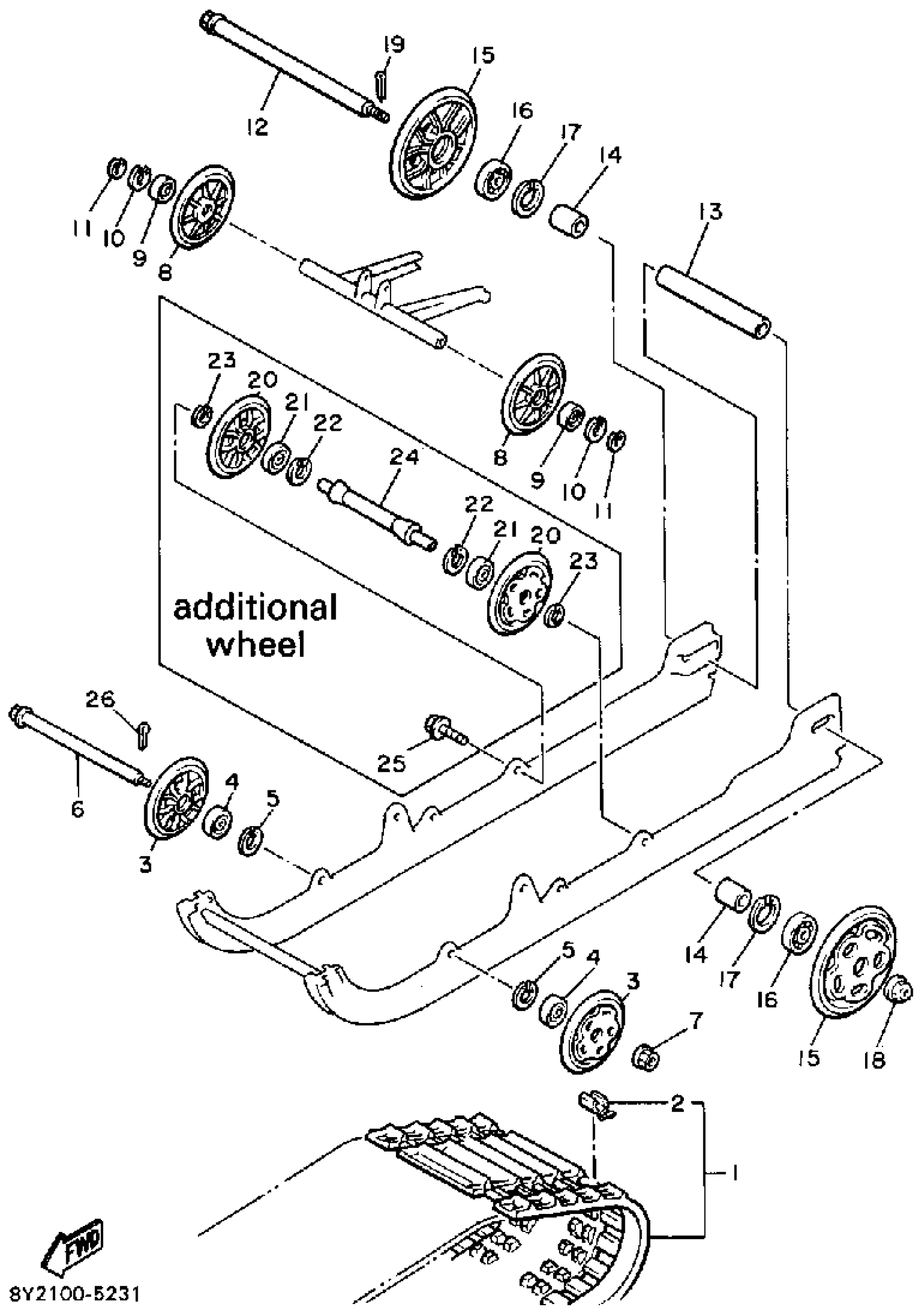

Yamaha ET340J (ENTICER 340) 1985 TRACK SUSPENSION 1 Diagram

TRACK ASY

METAL, SLIDE

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

SHAFT 5 (80X-47487-00-00)

NUT, SELF-LOCKING (8BF)

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

REAR AXLE COMP.

COLLAR

COLLAR

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

NUT, SELF-LOCKING (8BF)

PIN, COTTER

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

SHAFT 4

BOLT, FLANGE(4LN)

PIN, COTTER
