- ET340J (ENTICER 340) 1985
CRANKSHAFT-PISTON

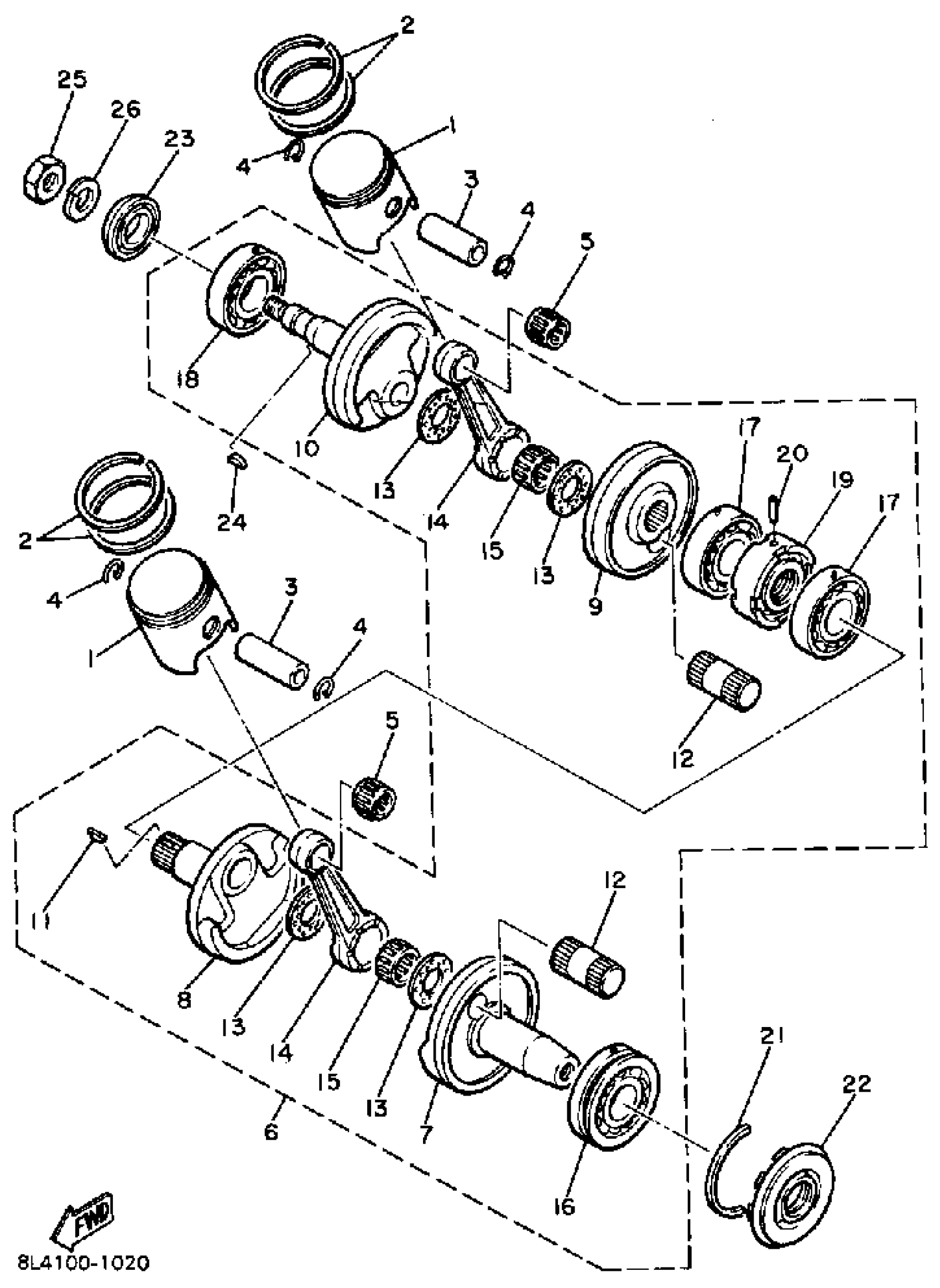

Yamaha ET340J (ENTICER 340) 1985 CRANKSHAFT-PISTON Diagram
#
1
PISTON (STD)
8G8-11631-01-96
Unavailable
1
PISTON O/S 0.25
8G8-11635-01-00
Unavailable
1
PISTON 2 O/S 0.50
8G8-11636-01-00
Unavailable
2
PISTON RING SET (STD)
8G8-11601-00-00
$62.99
2
PISTON RING SET (0.25MM O/S)
8G8-11601-10-00
Unavailable
2
PISTON RING SET (0.50MM O/S)
8G8-11601-20-00
Unavailable
3
PIN, PISTON
137-11633-10-00
$27.99
4
CIRCLIP (137-11634-00)
93450-17025-00
$8.49
5
BRG,CYL-CAL ROLLER 14-7G KY
93310-216E1-00
$26.99
6
CRANKSHAFT ASSEMBLY
8L3-11400-00-00
Unavailable
7
. CRANK 1
8G8-11412-01-00
Unavailable
8
. CRANK 2
8L3-11422-01-00
Unavailable
9
. CRANK 3
8L3-11432-01-00
Unavailable
10
. CRANK 4
8G8-11442-01-00
Unavailable
11
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
12
PIN, CRANK
8G8-11681-00-00
Unavailable
13
WASHER (29L)
90209-22248-00
Unavailable
14
ROD, CONNECTING
34X-11651-00-00
Unavailable
15
BEARING, CYLIMDRICAL (4A7)
93310-422L0-00
Unavailable
16
. BEARING (B6306)
93306-30618-00
Unavailable
17
BEARING (8G8)
93306-20617-00
Unavailable
18
BEARING
93306-30571-00
Unavailable
19
. SEAL, LABYRINTH 1
8L3-11515-01-00
Unavailable
20
PIN, SPRING (663)
91690-30010-00
Unavailable
21
CIRCLIP (1J7)
93440-72049-00
Unavailable
22
OIL SEAL, SD-TYPE
93102-30184-00
Unavailable
23
OIL SEAL (8G8)
93102-25183-00
Unavailable
24
KEY, WOODRUFF
90280-05001-00
Unavailable
25
NUT
90170-16425-00
Unavailable
26
WASHER(JN5)
92907-16100-00
Unavailable
