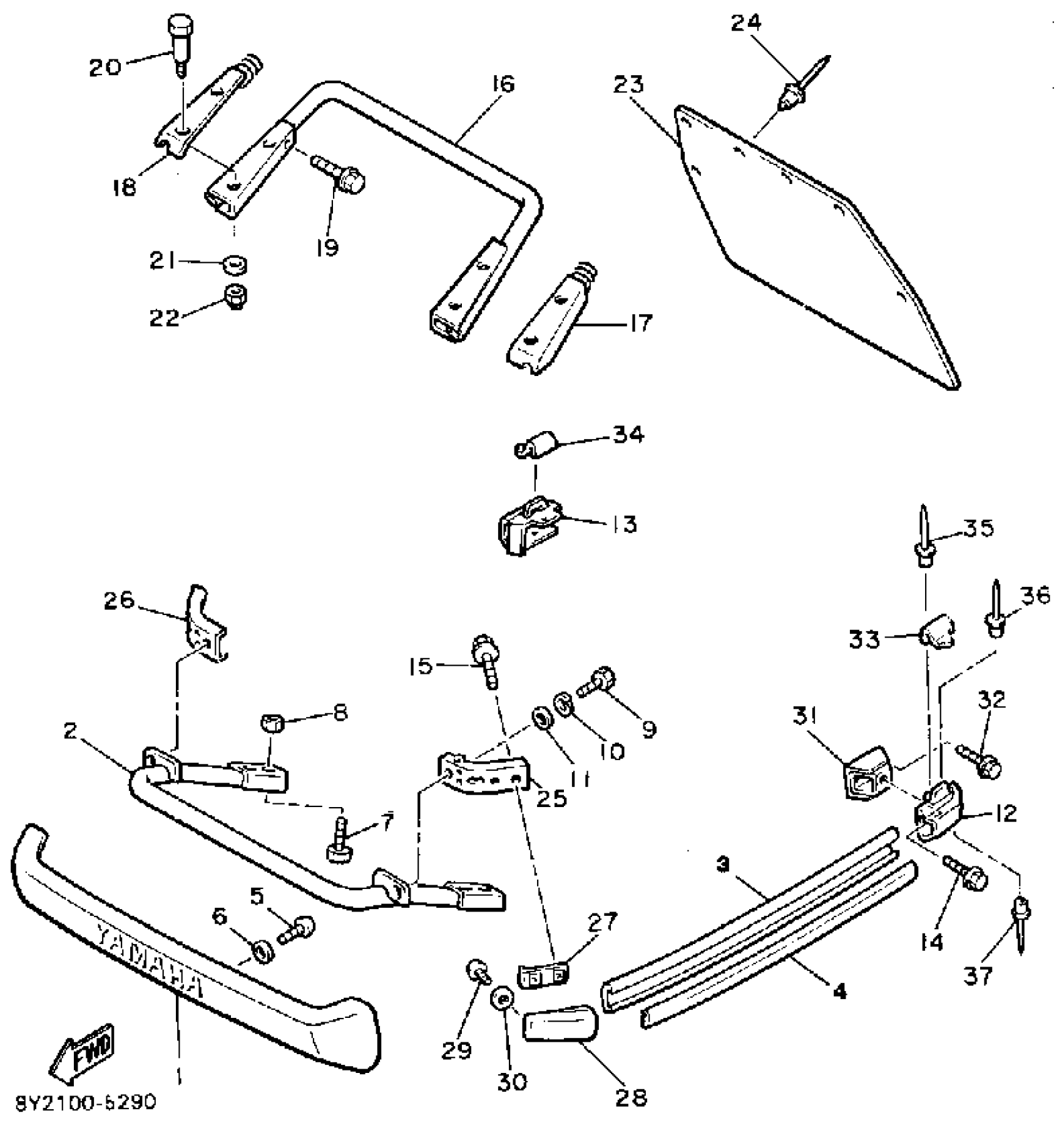

Yamaha ET340J (ENTICER 340) 1985 BUMPER Diagram
#
1
BUMPER, FRONT 1
8W6-77511-00-00
Unavailable
2
BUMPER, FRONT 2
8W6-77512-00-00
Unavailable
3
BUMPER, FRONT 3
8X0-77513-00-00
Unavailable
4
BUMPER, FRONT 4
8X0-77514-00-00
Unavailable
5
SCREW, PANHEAD TAPPING (J20)
97780-60116-00
$2.70
6
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
7
BOLT
97017-08035-00
Unavailable
8
NUT, U
95617-08100-00
$9.49
9
BOLT, HEXAGON
97017-08016-00
$8.49
10
WASHER(JN5)
92907-08100-00
$8.49
11
WASHER(6TA)
92907-08600-00
$3.03
12
END, BUMPER
8X0-77523-00-00
Unavailable
13
END, BUMPER
8X0-77524-00-00
Unavailable
14
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
15
BOLT, FLANGE
95822-06025-00
$1.75
16
BUMPER, REAR 1
8W6-77541-00-00
Unavailable
17
BUMPER, REAR 2
8W6-77542-00-00
Unavailable
18
BUMPER, REAR 3
8W6-77543-00-00
Unavailable
19
BOLT, FLANGE
95817-08012-00
Unavailable
20
BOLT
8W6-77519-00-00
Unavailable
21
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
22
NUT, CAP
95307-05800-00
Unavailable
23
FLAP
8V9-77595-00-00
Unavailable
24
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
25
BRACKET, FRONT L
80M-77531-00-00
Unavailable
26
BRACKET, FRONT R
80M-77532-00-00
Unavailable
27
PLATE, BACK UP
8X0-77527-00-00
Unavailable
28
PROTECTOR 1
8X0-77551-00-00
Unavailable
29
SCREW PAN HEAD
98580-06010-00
Unavailable
30
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
31
STAY 1
8X0-77535-00-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
BUSH, RUBBER 1
8X0-77515-00-00
Unavailable
34
BUSH, RUBBER 2
8X0-77516-00-00
Unavailable
35
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
36
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
37
RIVET(81E)
90269-05055-00
Unavailable
